Mestros Vital Wave Biphasic Defibrillator
- Description
- Features
- Specifications
-

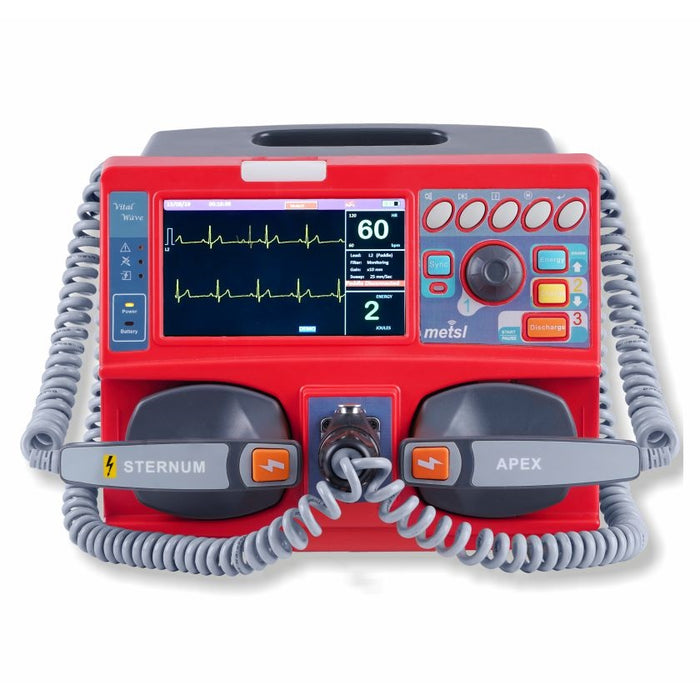

Maestros Vital Wave Biphasic Defibrillator: Advanced Cardiac Resuscitation
The Maestros Vital Wave Biphasic Defibrillator is a cutting-edge medical device designed to deliver life-saving electrical therapy for patients experiencing critical cardiac arrhythmias. This Maestros defibrillator employs advanced biphasic waveform technology, known for its superior effectiveness in restoring normal heart rhythm compared to traditional monophasic defibrillators.
The is engineered for versatility and ease of use in diverse medical settings, including hospitals, clinics, and emergency transport. Its compact and lightweight design ensures portability without compromising performance.
Featuring a user-friendly interface with a vibrant 7” color TFT display, the Maestros biphasic defibrillator provides clear and intuitive operation. Energy selection is seamless, allowing for adjustments up to 270 Joules to meet individual patient needs.
The Vital Wave boasts rapid charging capabilities, achieving a full 270 Joules charge in less than 8 seconds. Its advanced battery technology supports more than 50 shocks on a full charge, ensuring reliability during critical situations.
This Vital Wave portable biphasic defibrillator includes essential features such as synchronized operation, ECG acquisition via paddles and patient cable, and event trend storage for up to 24 hours. Furthermore, it is upgradable to include SpO2 and NIBP monitoring, enhancing its comprehensive patient care capabilities.
Trust the Maestros Vital Wave Biphasic Defibrillator to deliver rapid, effective, and reliable cardiac resuscitation.
-
Maestros Vital Wave Portable Biphasic Defibrillator - Key Features
- Optimized Defibrillation with Biphasic Waveform Technology:
- Utilizes advanced biphasic waveform technology, significantly enhancing the effectiveness of defibrillation compared to traditional monophasic waveforms. This optimizes the chances of successful resuscitation and improves patient outcomes.
- This feature makes the Maestros biphasic defibrillator a very powerful tool.
- Rapid Response with Portable Design:
- Compact and lightweight design ensures exceptional portability, facilitating rapid response to cardiac emergencies.
- Enables healthcare professionals and first responders to quickly bring the Vital Wave portable biphasic defibrillator to the patient's location.
- Confident Decision-Making with User-Friendly Interface:
- Intuitive user interface with a vibrant 7” color TFT display provides clear prompts and easy-to-understand instructions.
- Empowers users to make confident decisions during critical situations, enhancing the effectiveness of the Vital Wave.
- High Energy Delivery:
- Easy energy selection up to 270 Joules, allowing for tailored defibrillation based on patient needs.
- Rapid Charging:
- Achieves a full 270 Joules charge in less than 8 seconds, ensuring readiness during emergencies.
- Extended Battery Life:
- Advanced battery technology supports more than 50 shocks on a full charge, providing reliable performance.
- Comprehensive Data Management:
- Event trend storage for up to 24 hours, enabling thorough post-event analysis.
- ECG Acquisition:
- ECG acquisition via paddles and patient cable for accurate cardiac monitoring.
- Upgradeable Functionality:
- upgradable to SPO2 and NIBP monitoring.
- Synchronized Operation:
- Synchronized Operation.
- Adult and Pediatric application:
- Usable on adult and pediatric patients.
-
Maestros Vital Wave Biphasic Defibrillator - Specifications
General Information
- Model Name/Number: Vital Wave
- Category Type: Defibrillator
- Type: Biphasic Defibrillator
- Brand: Maestros
- Country of Origin: Made in India
- Usage/Application: ICU
Electrical & Power
- Power Supply: AC 100-240V, 50 Hz, 45W / AC 230V
- Battery Type: Li-Ion / Li-Polymer
- Battery Capacity: 14.8V/4400mAh
- Battery Backup Time: 3 Hours
- Charging Time: 8 Hours
- Power Cord Length: 2 meters
Display & User Interface
- Display Type: Color TFT Display
- Resolution: 800x480 Pixels
- Screen Size: 7" Diagonally
ECG Monitoring & Recording
- ECG Acquisition: Patient Cable & Paddles
- ECG Leads: 3 / 5 Leads
- ECG Channels: 3 Channels
- Lead Selection: Lead I, II, III, aVR, aVL, aVF, V
- Gain Selection: 5 / 10 / 15 / 20 mm/mV
- Sweep Speed: 12.5, 25, or 50 mm/sec
- Frequency: 0.05 to 40Hz
- Heart Rate Range: 30 - 240 bpm
- Accuracy: ±2 bpm
- ECG Recorder: Yes
- Print Out Modes: High Resolution Thermal Array Printer
- Paper Size: 57mm X 20mtr.
- Paper Speed: 25 mm/sec
Environmental & Physical Specifications
- Operating Temperature: 0-40 Degrees Celsius / 0-45 degrees Celsius
- Relative Humidity: Up to 90% (non-condensing)
- Weight: 5.4 kg
- Dimensions (LxHxW): 403 x 152 x 324 mm
- Color: Yellow & Red
Alarms & Safety
- Alarm System: Yes
Accessories (Included)
- 3 / 5 Lead ECG Cable: 1 No.
- Disposable ECG electrodes: 10 No.
- Li-Ion Battery: 1 No.
- Recorder Paper rolls: 1 No.
- Gel Bottle: 1 No.
