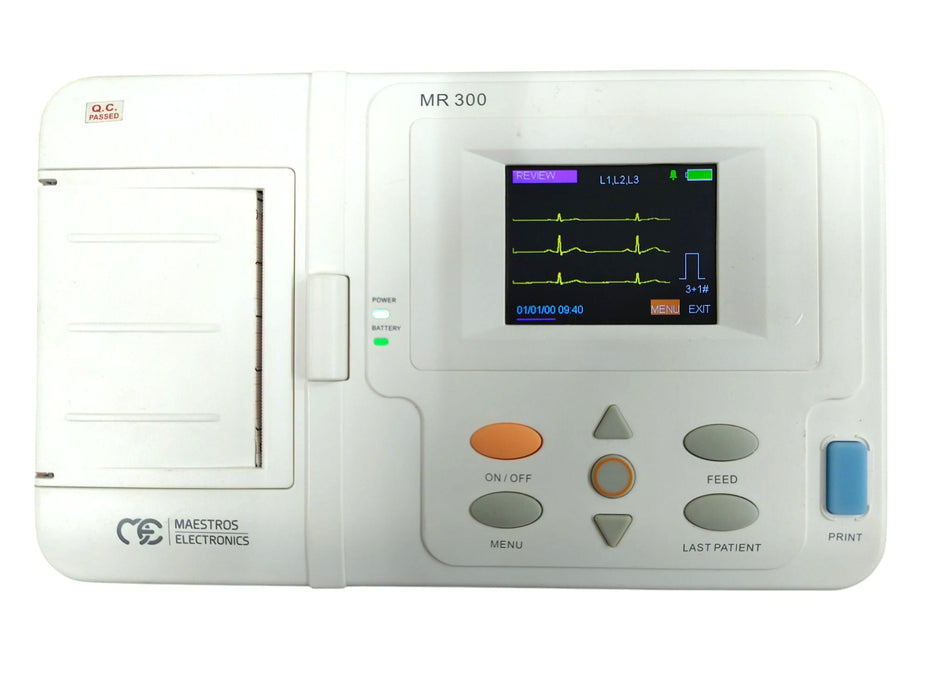

Meastros MR 300 mini 3 Channel Portable ECG Machine
Product Features – Maestros 3 Channel ECG Machine MR 300 Mini
-
Compact and Portable: The MR 300 Mini ECG Machine is lightweight and easy to carry, ideal for clinics, hospitals, and mobile healthcare units.
-
High-Resolution Display: 2.8" Color TFT screen with 320 × 240 pixel resolution ensures sharp and clear ECG waveform visualization.
-
Simultaneous 12-Lead Acquisition: Captures all standard 12 leads at once for fast and accurate diagnosis.
-
Auto and Manual Operation Modes: The Maestros 3 Channel ECG Machine offers flexibility in recording based on user needs.
-
Advanced Interpretation and Analysis: Built-in automatic interpretation helps save time and improve diagnostic accuracy.
-
Long Lead Printing: Supports continuous printing for detailed analysis of specific leads.
-
Flexible Print Formats: Choose between 3-channel or 3+1 ECG printing styles.
-
Superior Signal Quality: High input impedance (>100 MΩ) and excellent CMRR (>90 dB) for noise-free recordings.
-
Reliable Thermal Printing: Integrated thermal printer with an 80 mm paper width for crisp ECG traces.
-
User-Friendly Design: Simple navigation and easy-to-use controls for hassle-free operation.
Technical Specifications – MR 300 Mini ECG Machine
| Specification | Details |
|---|---|
| Leads | 12 Standard Leads |
| Mode of Operation | Auto / Manual |
| Display Type | 2.8” Color TFT |
| Display Resolution | 320 × 240 Pixels |
| Frequency Response | 0.05 to 125 Hz |
| Sweep Speed | 12.5 / 25 mm/s |
| Sensitivity | 5 / 10 / 15 / 20 mm/mV |
| CMRR | > 90 dB |
| Input Impedance | > 100 MΩ |
| Printer Type | Thermal Printer |
| Paper Width | 80 mm |
| Long Lead Print | Yes |
| ECG Print Style | 3, 3+1 |
| Display Lead | Yes |
| Interpretation | Yes |
