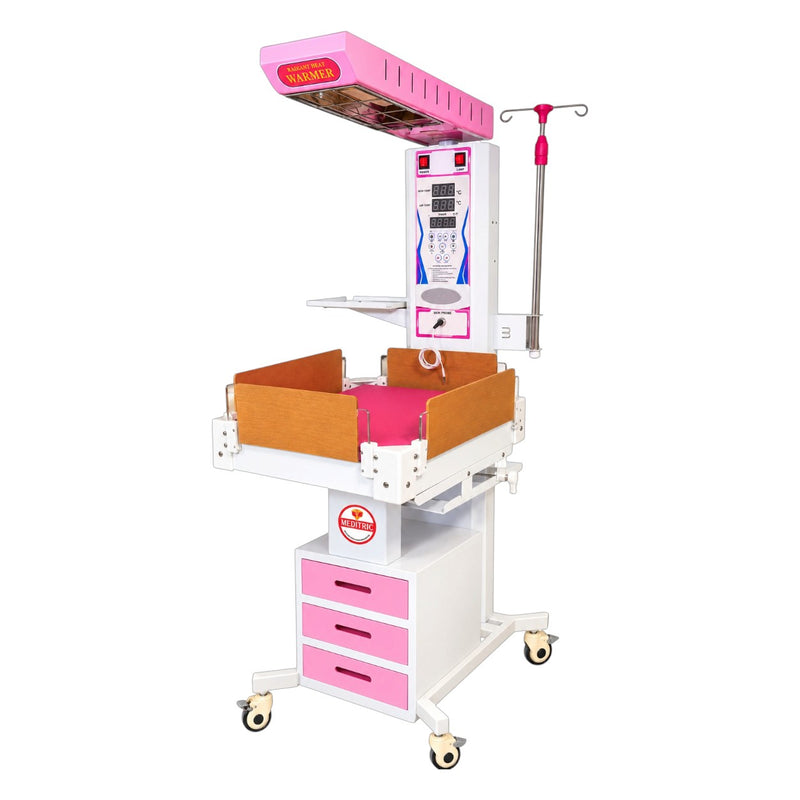

The Meditric SSWMD-18 Single Sensor Based Radiant Heat Warmer with Drawers is a microprocessor-based radiant heat warmer designed with skin and manual temperature control. It combines a 600W ceramic/quartz heater with a PT 100 temperature probe, stainless-steel baby bed tray, pressure PU foam mattress, built-in phototherapy and integrated drawers for convenient bedside storage.
The SSWMD-18 also features audio/visual alarms for power failure, high temperature, low temperature and sensor failure, along with an optional heater-failure alarm.
✅ Key Features
-
Single sensor radiant heat warmer
- Microprocessor-based skin & manual temperature control
- 600W ceramic/quartz heater
-
Skin temperature setting: 32°C to 37°C
-
Display setting range: 28°C to 40°C
- PT 100 temperature probe
- Built-in phototherapy
- 450 nm phototherapy wavelength
- Stainless-steel baby bed tray
- Pressure PU foam mattress
- Audio/visual safety alarms
- Optional heater-failure alarm
- Optional Upgar Timer
- Telescopic stainless-steel IV stand
- Heater cutoff from 0–100% in 10% intervals
- 100 mm PU wheels with 2 brakes and 2 plain wheels
- Integrated drawers for storage
Built-In Phototherapy
The SSWMD-18 includes built-in phototherapy with a specified wavelength of 450 nm, combining radiant warming and phototherapy functionality in one equipment configuration.
Temperature Control
The warmer uses a microprocessor-based skin and manual temperature control system. The specified skin temperature setting range is 32°C to 37°C, with a display setting range of 28°C to 40°C.
600W Ceramic / Quartz Heater
A 600W ceramic/quartz heater provides the radiant heating system. Heater cutoff is specified from 0% to 100% in 10% intervals.
Safety Alarm System
| Alarm |
Indication |
| Power failure |
Audio / Visual |
| Temperature high |
Audio / Visual |
| Temperature low |
Audio / Visual |
| Heater failure |
Audio / Visual — Optional |
| Sensor failure |
Audio / Visual |
Baby Bed, Mattress & Storage
The SSWMD-18 is equipped with a stainless-steel baby bed tray and pressure PU foam mattress. Its drawer-based configuration provides additional storage space around the warmer.
Technical Specifications
| Specification |
Details |
| Product |
Single Sensor Radiant Heat Warmer with Drawers |
| Model |
SSWMD-18 |
| Temperature Control |
Microprocessor-based skin & manual control |
| Sensor Configuration |
Single Sensor |
| Heater |
Ceramic / Quartz |
| Heater Power |
600W |
| Skin Temperature Setting |
32°C to 37°C |
| Display Setting Range |
28°C to 40°C |
| Temperature Probe |
PT 100 |
| Power Failure Alarm |
Audio / Visual |
| High Temperature Alarm |
Audio / Visual |
| Low Temperature Alarm |
Audio / Visual |
| Heater Failure Alarm |
Audio / Visual, optional |
| Sensor Failure Alarm |
Audio / Visual |
| Mattress |
Pressure PU Foam |
| Baby Bed |
Stainless-Steel Tray |
| Upgar Timer |
Optional |
| IV Stand |
Telescopic Stainless Steel |
| Heater Cutoff |
0–100%, in 10% intervals |
| Wheels |
100 mm PU Sole |
| Wheels Configuration |
2 Brake + 2 Plain |
| Phototherapy |
Built-in |
| Phototherapy Wavelength |
450 nm |
| Storage |
Integrated Drawers |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
