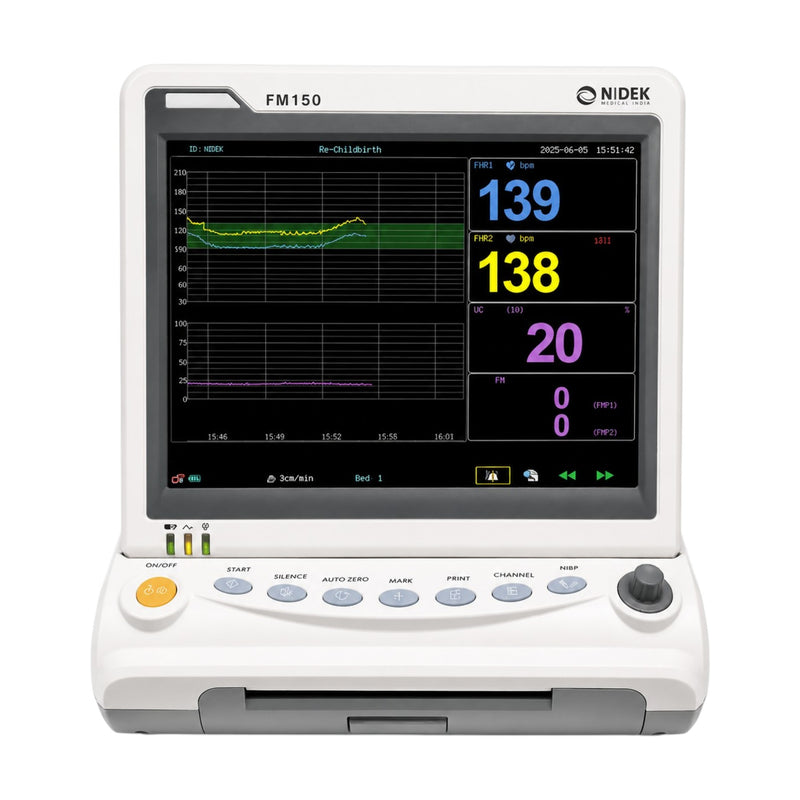

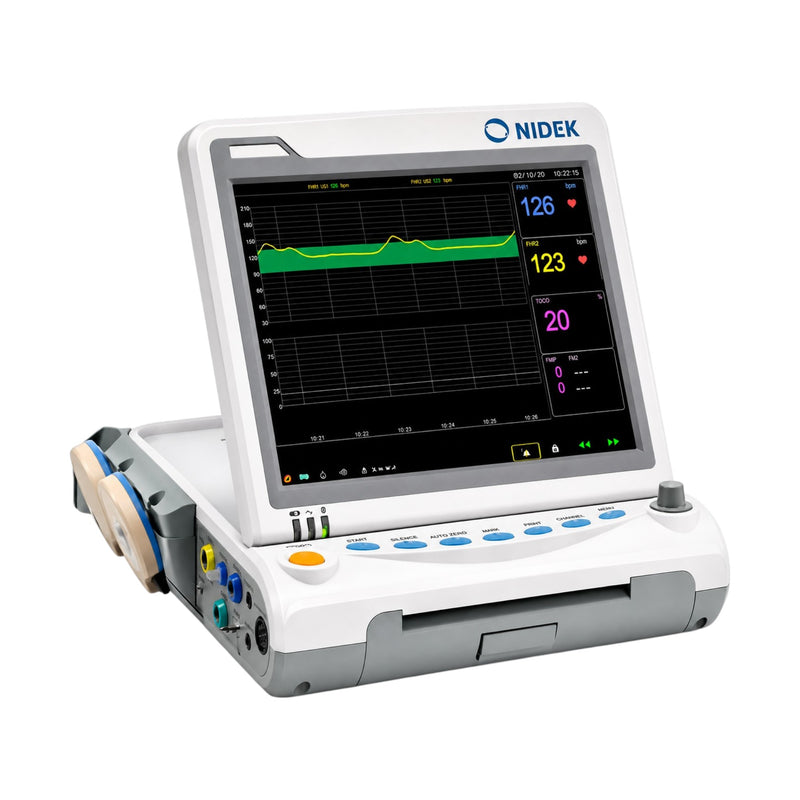

The Nidek FM150 Fetal Monitor is an advanced CTG Machine (Cardiotocography Monitor) developed to provide continuous and accurate monitoring of Fetal Heart Rate (FHR), Uterine Contractions (TOCO), Fetal Movement (FM), and Fetal Activity Curves throughout pregnancy and labor. Available at Health Yantra Store, this professional fetal monitor is trusted by hospitals, maternity hospitals, obstetric departments, gynecology clinics, IVF centres, prenatal care clinics, and labor rooms across India.
Designed with a 12.1-inch high-resolution LCD display featuring a 0°–90° adjustable viewing angle, the FM150 allows clinicians to observe fetal heart rate patterns and uterine contractions with excellent clarity. Its intuitive interface and large display support faster clinical interpretation and improved patient management during antenatal care and labor.
The monitor uses 1 MHz ultrasound Doppler technology to deliver highly accurate fetal heart rate monitoring with an accuracy of ±1 BPM. It supports both manual and automatic fetal movement detection, displaying fetal activity curves that help clinicians evaluate fetal wellbeing more effectively.
The built-in 152 mm thermal printer produces high-quality CTG reports with adjustable paper speeds, while quick recall printing allows previously stored records to be reprinted whenever required. Programmable audio and visual alarms notify medical staff of abnormal fetal heart rates or probe disconnection, helping improve maternal and fetal safety.
The optional twin fetal monitoring function makes the FM150 suitable for monitoring multiple pregnancies. The FM150 Plus variant further expands monitoring capabilities by supporting additional maternal parameters, making it a comprehensive obstetric monitoring solution.
With over 24 hours of internal data storage, up to 4 hours of battery backup, and a portable foldable handle, the Nidek FM150 is ideal for labor wards, antenatal clinics, emergency obstetric care, and bedside monitoring.
Whether you're looking to buy a CTG machine online, a hospital fetal monitor, or a Nidek fetal monitoring system, the Nidek FM150 Fetal Monitor from Health Yantra Store offers exceptional reliability, clinical accuracy, and long-term value.
Parameters Monitored
Standard Monitoring Parameters
- Fetal Heart Rate (FHR)
- Uterine Contractions (TOCO)
- Fetal Movement (FM)
- Fetal Activity Curve
Optional Monitoring
- Twin Fetal Monitoring
- Maternal Monitoring (FM150 Plus)
Key Features
Advanced Fetal Monitoring
- Continuous FHR monitoring
- TOCO monitoring
- Manual & automatic fetal movement detection
- Fetal activity curve display
Large 12.1-inch LCD Display
- High-resolution colour display
- Adjustable viewing angle (0°–90°)
- Easy waveform interpretation
- Enhanced clinical visibility
High-Precision Doppler Technology
- 1 MHz ultrasound Doppler
- Accurate fetal heart monitoring
- ±1 BPM measurement accuracy
- Reliable clinical performance
Built-in Thermal Printer
- 152 mm thermal printer
- Foldable Z-type thermal paper
- Adjustable sweep speeds
- Quick recall printing
Intelligent Alarm System
- Probe disconnection alarm
- High & low fetal heart rate alarms
- Audio & visual alerts
- Improved patient safety
Optional Twin Monitoring
- Twin fetal heart monitoring
- Ideal for multiple pregnancies
- Enhanced obstetric care
Portable Design
- Foldable carrying handle
- Rechargeable battery
- Up to 4-hour battery backup
- Convenient bedside monitoring
Benefits
- Accurate fetal heart rate monitoring
- Continuous uterine contraction monitoring
- Automatic fetal movement detection
- Large adjustable LCD display
- Built-in thermal printer for instant CTG reports
- Optional twin fetal monitoring
- FM150 Plus supports maternal monitoring
- Long internal memory with quick recall
- Portable and ergonomic design
- Genuine Nidek Fetal Monitor available at Health Yantra Store
Technical Specifications
| Specification |
Details |
| Brand |
Nidek |
| Model |
FM150 |
| Product Type |
CTG Fetal Monitor |
| Display |
12.1-inch High-Resolution LCD |
| Screen Adjustment |
0°–90° Adjustable |
| Monitoring Parameters |
FHR, TOCO, FM, Fetal Activity Curve |
| Ultrasound Frequency |
1 MHz ±10% |
| Ultrasound Intensity |
<10 mW/cm² |
| FHR Range |
30–240 BPM |
| FHR Accuracy |
±1 BPM |
| Fetal Movement |
Manual & Automatic |
| Twin Monitoring |
Optional |
| Printer |
Built-in Thermal Printer |
| Paper Type |
Foldable Z-Type Thermal Paper |
| Paper Width |
152 mm |
| Print Speed |
1, 2, 3 cm/min |
| Data Storage |
More than 24 Hours |
| Battery Backup |
Up to 4 Hours |
| Power Supply |
AC 100–240V, 50/60Hz |
Ideal For
- Hospitals
- Maternity Hospitals
- Obstetric Departments
- Gynecology Clinics
- IVF Centres
- Labor Rooms
- Prenatal Care Clinics
- Women's Health Centres
- Medical Colleges
- High-Risk Pregnancy Units
What's Included
- Nidek FM150 / FM150 Plus Main Unit
- FHR Doppler Probe
- TOCO Probe
- FM Probe with Belts
- Foldable Z-Type Thermal Paper
- Rechargeable Battery
- Power Cable
- User Manual
- Optional Accessories (Twin Probe, Wireless Terminal, Cart, Wake-up Stimulator, etc. depending on configuration)
