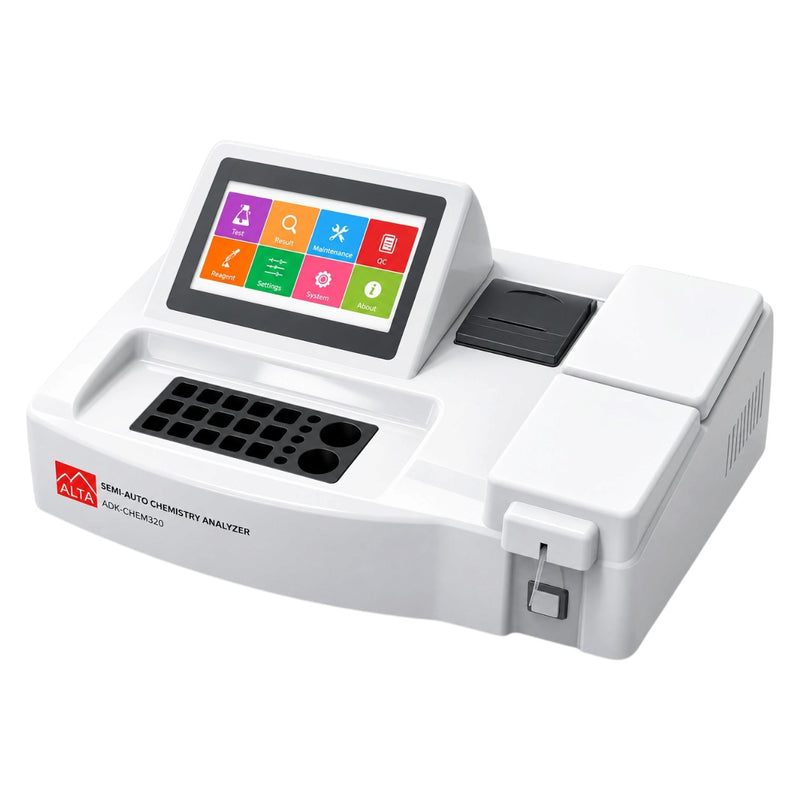

The ALTA ADX Chem 220 Semi Auto Chemistry and Coagulation Analyzer is a compact, touchscreen-operated laboratory analyzer designed to support routine clinical chemistry and coagulation testing. Its combined testing capabilities make it suitable for hospitals, clinics, diagnostic centers, and small to medium-sized medical laboratories seeking a versatile laboratory testing solution.
With seven standard optical filters, two optional filter positions, selectable temperature settings, and storage for more than 300 programs and up to 200,000 results, the analyzer supports a range of routine laboratory workflows. USB connectivity and an Ethernet port provide additional interface options for laboratory use and data management.
Key Features of ALTA ADX Chem 220
-
Dual testing capabilities: Designed for clinical chemistry and coagulation testing.
-
Semi-automatic operation: Supports controlled laboratory testing workflows.
-
Touchscreen interface: Features a 7-inch TFT LCD touchscreen with 800 × 480 resolution.
-
Multiple analysis methods: Supports 1-point end, 2-point end with sample blank, kinetics, fixed-time, and coagulation methods.
-
Seven standard optical filters: 340, 405, 450, 505, 546, 578, and 630 nm.
-
Optional optical filters: Two additional filter positions are available.
-
Long-life halogen lamp: Uses a 6 V/10 W tungsten halogen lamp with an automatic sleep function.
-
Inbuilt multifunctional incubator: Includes a 37°C incubator.
-
Temperature control: Supports 25°C, 30°C, 37°C, and room-temperature settings using Peltier elements.
-
Open reagent system: Supports flexibility in reagent selection for compatible assays.
-
Built-in thermal printer: Supports 57 mm thermal paper.
-
High storage capacity: Stores more than 300 programs and up to 200,000 results.
-
Multiple connectivity options: Includes four USB host ports, one USB slave port, and one Ethernet port.
-
Compact design: Measures 40 × 30 × 16 cm and weighs approximately 7.5 kg.
Test Menu and Applications
The ALTA ADX Chem 220 supports a range of clinical chemistry and coagulation tests, depending on the selected assay, compatible reagents, and instrument configuration.
| Test Category |
Tests and Applications |
| Liver Function Tests |
Routine liver function assays |
| Kidney Function Tests |
Routine renal function assays |
| Lipid Profile |
Lipid-related biochemical testing |
| Glucose and Metabolic Tests |
Glucose and metabolic assays |
| Protein and Albumin |
Protein and albumin testing |
| Electrolytes |
Electrolyte testing where compatible reagents are available |
| Coagulation Tests |
Prothrombin Time (PT), Activated Partial Thromboplastin Time (APTT), Fibrinogen (FIB), and related parameters |
| General Clinical Chemistry |
Open-system biochemical assays using compatible reagents |
Technical Specifications
| Specification |
Details |
| Product Name |
ALTA ADX Chem 220 |
| Analyzer Type |
Semi-automatic chemistry and coagulation analyzer |
| Analysis Methods |
1-point end, 2-point end (sample blank), kinetics, fixed-time, coagulation |
| Standard Optical Filters |
340, 405, 450, 505, 546, 578, 630 nm |
| Optional Filters |
2 |
| Lamp House |
Tungsten halogen lamp |
| Lamp Rating |
6 V / 10 W |
| Lamp Function |
Automatic sleep function |
| Display |
7.0-inch TFT LCD touchscreen |
| Display Resolution |
800 × 480 |
| Printer |
Built-in thermal printer |
| Printer Paper |
57 mm |
| Temperature Settings |
25°C, 30°C, 37°C, room temperature |
| Temperature Control |
Peltier elements |
| Incubator |
Inbuilt multifunctional incubator |
| Incubator Temperature |
37°C |
| Program Storage |
More than 300 programs |
| Result Storage |
Up to 200,000 results |
| USB Host Ports |
4 |
| USB Slave Port |
1, for PC connection and supported PC software control |
| Ethernet |
1 port |
| Operating Temperature |
10°C–30°C |
| Operating Humidity |
30%–80% |
| Power Requirement |
AC 100–240 V, 50/60 Hz |
| Dimensions (L × W × H) |
40 × 30 × 16 cm |
| Weight |
7.5 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
