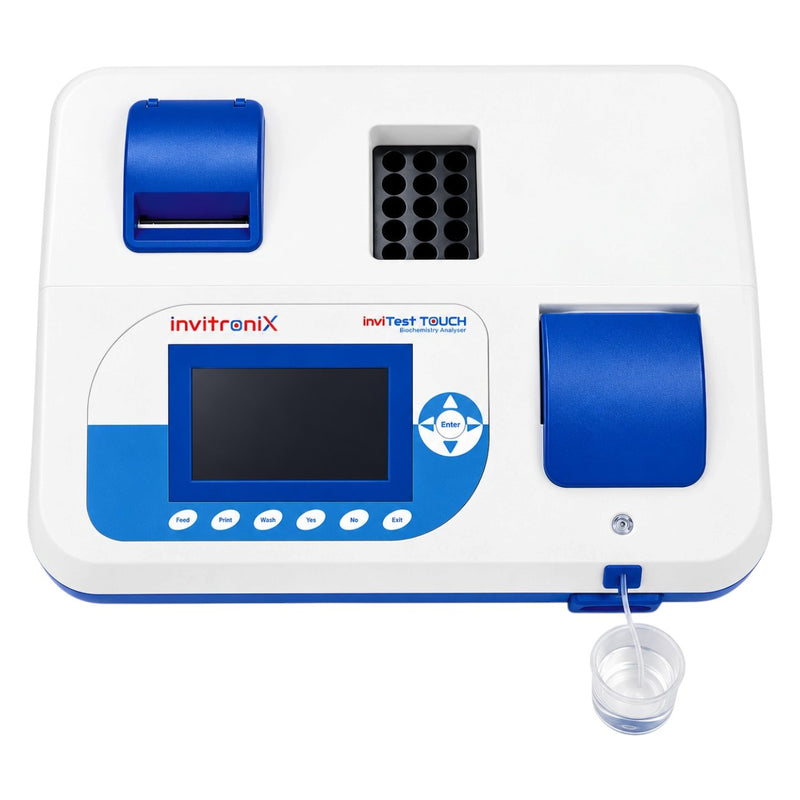

The Invitronix InviTest Touch Biochemistry Analyzer is a semi-automated clinical chemistry analyzer designed for hospitals and diagnostic laboratories. It combines photometric technology, a color touch interface, and flexible testing modes for routine biochemistry and coagulation testing.
The Invitronix InviTest Touch features a built-in thermal printer, USB data interface, automatic calibration system, multi-standard calibration, and test memory. Its triple cuvette system supports biochemistry and coagulation tests, while the real-time graph and on-screen absorbance reading help users monitor measurements during analysis.
Key Features of Invitronix InviTest Touch
-
Semi-automated clinical chemistry analyzer with an open system supporting more than 200 test programs
-
User-friendly software with a color touch panel
-
Built-in thermal printer and USB data interface
-
Built-in temperature display and automatic calibration system
-
Multi-standard calibration and memory function
-
Real-time graph with on-screen absorbance reading
-
Triple cuvette system for biochemistry and coagulation tests
-
Long-life tungsten halogen lamp
-
Maintenance-free peristaltic pump
-
Supports PT, INR, and APTT coagulation tests
-
15-position incubator maintained at 37°C
-
Compact design weighing approximately 5 kg
Hospital and Laboratory Benefits
Fast Turnaround Time: Supports testing for routine biochemistry and coagulation parameters.
Cost-Effective Operation: Provides a semi-automated testing option for small laboratories.
Accurate Results: Photometric performance and temperature control support laboratory testing.
Space-Saving Design: Compact dimensions allow placement on a laboratory bench.
User-Friendly Operation: Touch-based navigation and automatic calibration support laboratory workflows.
Technical Specifications
| Specification |
Details |
| Product Name |
Invitronix InviTest Touch Biochemistry Analyzer |
| Brand |
Invitronix |
| Model Name |
InviTest |
| Operation Type |
Semi-Automatic |
| Measurement Range |
0.000–3.000 Absorbance Units |
| Light Source |
Tungsten Halogen Lamp |
| Wavelengths |
340, 405, 510, 546, 578, 630 nm + 2 optional filters |
| Optical System |
Photodiode Detector |
| Incubator |
15 positions, maintained at 37°C |
| Operating Modes |
Absorbance, End Point, Fixed Time, Kinetic, Differential, Ratio |
| Coagulation Tests |
PT, INR, APTT |
| Display |
5-inch Color Graphic LCD with Touch Panel |
| Printer |
Built-in 28-column Thermal Printer |
| Data Interface |
USB |
| Test Program Support |
More than 200 programs |
| Calibration |
Automatic calibration and multi-standard calibration |
| Cuvette System |
Triple cuvette system |
| Pump |
Maintenance-free peristaltic pump |
| Environmental Temperature |
-10°C to +60°C |
| Humidity |
Up to 85% |
| Dimensions (W × D × H) |
38 × 30.5 × 17.5 cm |
| Weight |
Approximately 5 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
