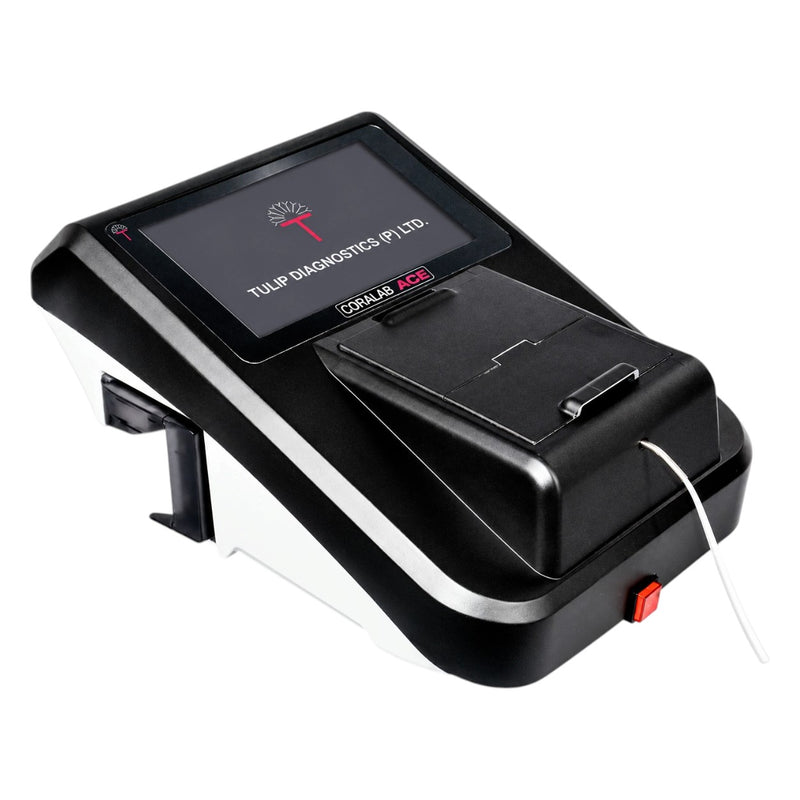

The Tulip Coralab ACE Semi-Automated Clinical Chemistry Analyzer is a next-generation analyzer made by Coral Clinical Systems, a division of Tulip Diagnostics. It features a compact design, a large touch-screen interface, and functions designed for small and medium laboratories.
The Coralab ACE supports clinical chemistry tests, turbidimetry-based assays, and endpoint, fixed-time, and kinetic reactions. It comes with 30 preprogrammed commonly used chemistry assays, 300 programmable test positions, storage for over 100,000 test results, a built-in thermal printer, and a lamp-saving mode.
Key Highlights
-
30 preprogrammed commonly used chemistry assays
-
300 programmable test positions
-
Storage capacity of over 100,000 test results
-
Lamp-saving mode to extend the life of the light source
-
Built-in thermal printer
-
Large touch-screen interface
-
Compact design for laboratories with limited bench space
-
Supports clinical chemistry and turbidimetry-based assays
-
Multiple operating modes, including endpoint, fixed time, kinetic, absorbance, sample blank, and multi-standard
Test Menu
Why Should You Buy Tulip Coralab ACE?
-
Space-efficient design: Compact size makes it suitable for laboratories with limited bench space.
-
Highly flexible: With 300 open programming slots, it supports different types of tests beyond standard preprogrammed assays.
-
High data capacity: Stores over 100,000 test results for record-keeping and audits.
-
Cost-effective operation: Lamp-saving mode helps reduce maintenance costs.
-
User-friendly: Touch-screen interface and simple navigation support daily operation and training.
Technical Specifications
| Specification |
Details |
| Model |
Coralab ACE |
| Analyzer Type |
Semi-automated clinical chemistry analyzer |
| Preprogrammed Assays |
30 commonly used assays |
| Storage Capacity |
Over 100,000 test results |
| Printer |
Built-in thermal printer |
| Display |
Large touch screen; exact size not specified |
| Operating Modes |
Endpoint, Fixed Time, Kinetic, Absorbance, Sample Blank, Multi-standard |
| Wavelengths (Filters) |
340, 405, 450, 505, 546, 578, 630, 700 nm |
| Lamp |
Halogen, 12 V / 20 W, with lamp-saving option |
| Measuring Range |
0.000 to approximately 2,500 OD |
| Power Supply |
110–240 V AC, 50/60 Hz |
| Dimensions |
Approximately 31.5 × 23 × 18 cm |
| Weight |
Approximately 3 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
