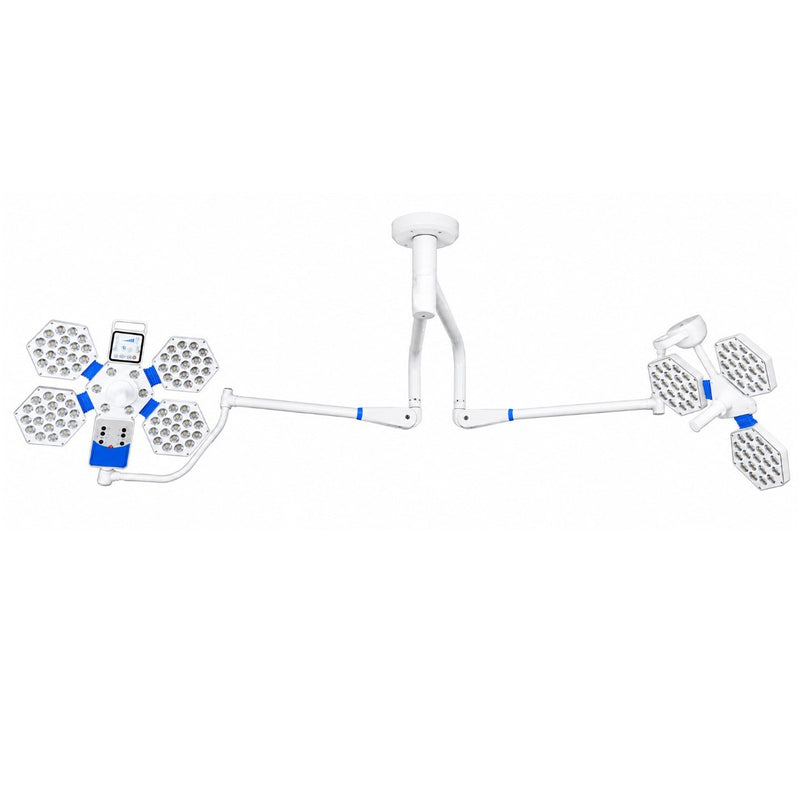

The Medinain Vega 603 Medical Light is a dual-head LED medical and surgical lighting system developed as part of the VEGA Series for the requirements of modern surgery and different surgical disciplines.
The Vega Series is described as providing a homogeneous light characteristic intended to increase surgeon comfort across the operative field, including larger operative areas.
The Vega 603 combines 170,000 Lux + 125,000 Lux illumination through 82 + 57 LEDs. It features 10–100% digital touch intensity control, manual focusing, dual memory function, 3800–4800K colour temperature, and CRI 93 Ra.
With two different light-head sizes—685 mm + 609.6 mm—the Vega 603 provides a dual-head configuration for medical and surgical lighting applications.
✅ Key Features
- Dual-head LED medical and surgical light
-
170,000 Lux + 125,000 Lux illumination
- 82 + 57 LEDs
- 10–100% digital touch intensity control
- Dual memory function
- Manual focusing
- 3800–4800K colour temperature
- CRI 93 Ra
- Spot diameter: 100–150 mm
- Depth: 10–25 cm
- LED average life: >50,000 hours
- 685 + 609.6 mm light diameter
- 220V/50Hz AC power supply
- 65.6 + 45.6W power consumption
- Part of the Medinain Vega Series
- Homogeneous Vega light characteristic described as supporting surgeon comfort across the operative field
- Suitable for modern medical and surgical lighting applications
Dual-Head High-Intensity Illumination
The Vega 603 uses two LED light heads with different specified illumination intensities:
-
Head 1: 170,000 Lux
-
Head 2: 125,000 Lux
The dual-head arrangement provides two sources of high-intensity illumination that can be positioned according to the requirements of the medical or surgical procedure.
Note: The supplied intensity values are specified individually as 170,000 Lux + 125,000 Lux and should not be presented as a single combined Lux rating.
82 + 57 LED Configuration
The Vega 603 incorporates:
-
82 LEDs in the first light head
-
57 LEDs in the second light head
The specified LED average life is more than 50,000 hours.
Digital Touch Intensity Control
The Vega 603 provides 10–100% digital touch intensity control, allowing the illumination level to be adjusted according to procedural requirements.
The dual memory function allows preferred illumination settings to be stored and recalled.
Manual Focusing & Light Field
The Vega 603 features manual focusing.
| Light Parameter |
Specification |
| Spot Diameter |
100–150 mm |
| Depth |
10–25 cm |
| Focusing |
Manual |
These are the supplied specifications for the light field and focusing system.
Colour Temperature & Colour Rendering
The Vega 603 has a specified 3800–4800K colour temperature range and Colour Rendering Index of 93 Ra.
These specifications support controlled illumination of the medical or operative field.
Vega Series Homogeneous Light
The supplied product description states that the homogeneous nature of Vega light increases surgeon comfort across the operative field.
This is presented as a characteristic of the Vega Series developed for modern surgery and its different disciplines.
Technical Specifications
| Specification |
Vega 603 |
| Model |
Vega 603 |
| Light Type |
LED Medical / Surgical Light |
| Configuration |
Dual Head |
| Intensity – Head 1 |
170,000 Lux |
| Intensity – Head 2 |
125,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
82 + 57 |
| Diameter of Light |
685 + 609.6 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
65.6 + 45.6W |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
