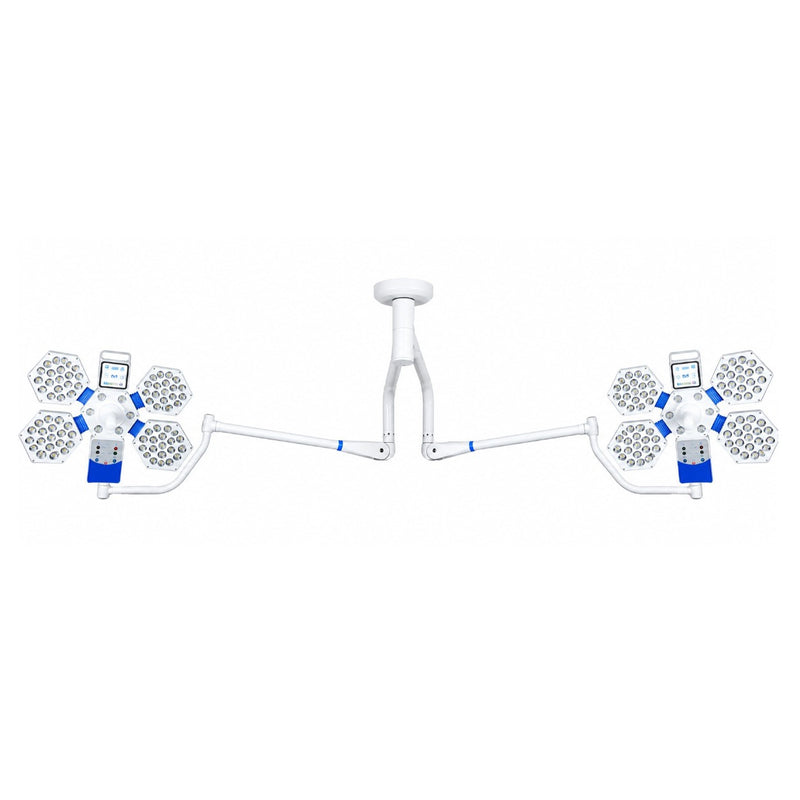

The Medinain Vega 606 Surgical Light is a dual-head LED surgical lighting system developed as part of the VEGA Series for modern surgery and different surgical disciplines.
The Vega Series is described as providing a homogeneous light characteristic intended to increase surgeon comfort across the operative field, whether the illuminated area is large or small.
The Vega 606 provides 170,000 Lux + 170,000 Lux illumination through 88 LEDs × 2. It features 10–100% digital touch intensity control, manual focusing, dual memory function, 3800–4800K colour temperature, and CRI 93 Ra.
✅ Key Features
- Dual-head LED surgical light
-
170,000 Lux + 170,000 Lux specified intensity
- 88 LEDs × 2
- 10–100% digital touch intensity control
- Dual memory function
- Manual focusing
- 3800–4800K colour temperature
- CRI 93 Ra
- Spot diameter: 100–150 mm
- Depth: 10–25 cm
- LED average life: >50,000 hours
- 685 + 685 mm light diameter
- 220V/50Hz AC power supply
- 65.6 + 65.6W power consumption
- Part of the Medinain Vega Series
- Homogeneous light characteristic described as supporting surgeon comfort across the operative field
Dual-Head 170,000 Lux Illumination
The Vega 606 features two light heads, each specified at 170,000 Lux:
-
Head 1: 170,000 Lux
-
Head 2: 170,000 Lux
The dual-head arrangement provides two high-intensity sources of surgical illumination that can be positioned according to the requirements of the procedure.
88 × 2 LED Configuration
The Vega 606 uses 88 LEDs per light head, specified as 88 × 2.
The supplied specification gives an LED average life of more than 50,000 hours.
Digital Touch Intensity Control
The Vega 606 features 10–100% digital touch intensity control, allowing the operator to adjust the illumination level according to procedural requirements.
The dual memory function provides convenient storage and recall of preferred lighting settings.
Manual Focusing & Light Field
The Vega 606 features manual focusing.
| Light Parameter |
Specification |
| Spot Diameter |
100–150 mm |
| Depth |
10–25 cm |
| Focusing |
Manual |
Colour Temperature & Colour Rendering
The Vega 606 provides a 3800–4800K colour temperature range and a Colour Rendering Index of 93 Ra.
These specifications provide the stated colour and rendering characteristics of the surgical lighting system.
Vega Series Design
The Vega Series was developed as an innovative solution for modern surgery and different surgical disciplines.
According to the supplied product description, the homogeneous nature of Vega light increases surgeon comfort across the operative field, including larger and smaller illuminated areas.
Technical Specifications
| Specification |
Vega 606 |
| Model |
Vega 606 |
| Light Type |
LED Surgical / OT Light |
| Configuration |
Dual Head |
| Intensity – Head 1 |
170,000 Lux |
| Intensity – Head 2 |
170,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
88 × 2 |
| Diameter of Light |
685 + 685 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
65.6 + 65.6W |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
