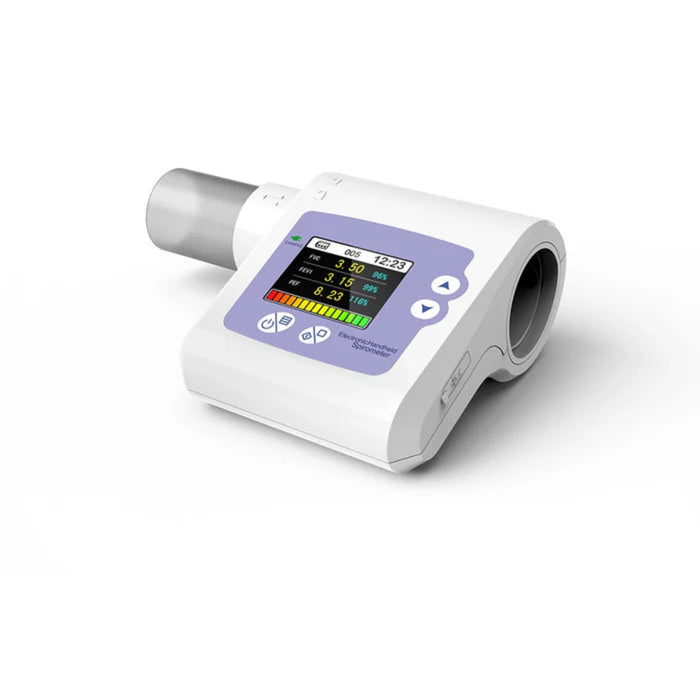

Contec SP 10 Digital Spirometer (PFT) Machine
Features
- ✅ Compact & Portable Design: Lightweight, handheld spirometer ideal for hospitals, clinics, and home healthcare.
- 💨 Comprehensive Lung Function Test: Measures key parameters — FVC, FEV1, FEV1%, PEF, FEF25, FEF75, and FEF25-75.
- 📊 Graphical Display: Flow-Volume and Volume-Time curve charts for accurate pulmonary analysis.
- 🔋 Rechargeable Battery: Built-in lithium battery with low-power indicator and auto power-off after one minute of inactivity.
- 🧠 Smart Data Management: Stores, reviews, and uploads patient test results for long-term trend tracking.
- ⚙️ Calibration & Scaling: Ensures high accuracy with adjustable calibration function.
- 🔗 Easy Connectivity: USB & Bluetooth support for data transfer and analysis on PC.
- 🌈 Clear TFT Display: 1.8” color LCD screen with visual indicator bars (green/yellow/red) for easy result interpretation.
- 🏥 Reliable Performance: CE & ISO13485 certified — suitable for professional use in hospitals, clinics, and diagnostic centers.
Specifications
|
Model |
Contec CMS-SP10 |
|
Type |
Handheld Digital Spirometer / PFT Machine |
|
Display |
1.8-inch Color TFT LCD Screen |
|
Measurement Principle |
Infrared Mode |
|
Parameters Measured |
FVC, FEV1, FEV1%, PEF, FEF25, FEF75, FEF25-75 |
|
Flow Range |
0 – 16 L/s |
|
Volume Range |
0 – 10 L |
|
Accuracy |
Flow: ±10% or ±0.3 L/s, Volume: ±3% or ±0.05 L |
|
Calibration |
Built-in scaling function |
|
Data Storage |
Yes – memory, delete, upload, review |
|
Connectivity |
USB / Bluetooth |
|
Power Source |
Rechargeable Lithium Battery |
|
Battery Life |
Up to 100 tests per charge |
|
Auto Power Off |
After 1 minute of inactivity |
|
Operation Temperature |
10°C – 40°C |
|
Humidity |
≤80% RH |
|
Dimensions |
97mm × 89mm × 36mm |
|
Weight |
Approx. 150 g |
|
Certifications |
CE, ISO13485 |
|
Country of Origin |
Imported (China) |
|
Warranty |
1 Year Manufacturer Warranty |
Frequently Asked Questions (FAQ)
Q1: What tests can the Contec SP10 Digital Spirometer perform?
It can measure FVC, FEV1, FEV1%, PEF, FEF25, FEF75, and FEF25-75 — providing a complete pulmonary function analysis.
Q2: Is this spirometer portable?
Yes, it’s a lightweight, handheld device, easy to carry and ideal for routine lung function testing in any setting.
Q3: Does it display charts and graphs?
Yes, it shows Flow-Volume and Volume-Time curves on a 1.8” TFT color screen for clear interpretation.
Q4: Can data be transferred to a computer?
Yes, the SP10 supports USB and Bluetooth connectivity for easy data upload, trend analysis, and report generation.
Q5: What type of power does it use?
It has a built-in rechargeable lithium battery with power display and auto shut-off for longer battery life.
Q6: Is calibration required?
Yes, it includes an automatic calibration (scaling) function to maintain testing accuracy.
Q7: Where is it commonly used?
It’s suitable for hospitals, clinics, diagnostic centers, and home healthcare setups for routine lung and pulmonary function tests.
