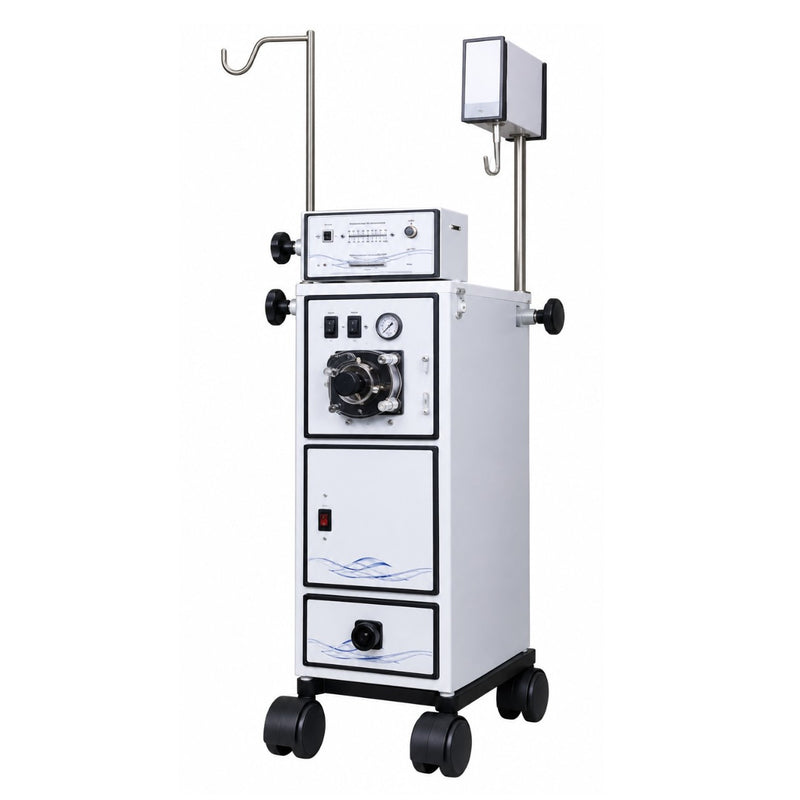

The Santron PC-Based Urodynamics System is a digital urodynamic machine designed for precise urological diagnostics, real-time monitoring, and detailed reporting. It provides measurements related to bladder and urinary function to support clinical evaluation and treatment planning.
The system combines pressure measurement, infused volume, uroflow, and EMG capabilities with Windows-based software and a graphical user interface. Its PC-based architecture uses USB connectivity for communication with the computer.
✅ Key Features
- PC-based digital urodynamics system
- 2 pressure sensors
- Measurement of:
- Vesical Pressure
- Abdominal Pressure
- Detrusor Pressure
- Urethral Pressure
- Infused volume (Vinf) measurement
- Weight-based infusion sensor
- Supports plastic bottles up to 1000 ml
- Uroflow measurement
- Flow (Qura) and voided volume (Qvol) measurement
- Weight-based uroflow sensor
- Flow range: 0–100 ml/sec
- Flow sensitivity: 0.5 ml/second
- 1-channel EMG
- Pad electrode-based EMG
- Rectified EMG signal
- Windows-based software
- User-friendly graphical interface
- USB connection to PC
Pressure Measurement
The Santron PC-Based Urodynamics System includes two pressure sensors designed to measure the following parameters:
- Vesical Pressure
- Abdominal Pressure
- Detrusor Pressure
- Urethral Pressure
These pressure measurements form an important part of urodynamic assessment and provide pressure-related information during the examination.
Infused Volume Measurement
The system supports measurement of infused volume (Vinf) using a weight-based infusion sensor.
The supplied specification states that a plastic bottle with a maximum capacity of 1000 ml can be used with the infusion sensor.

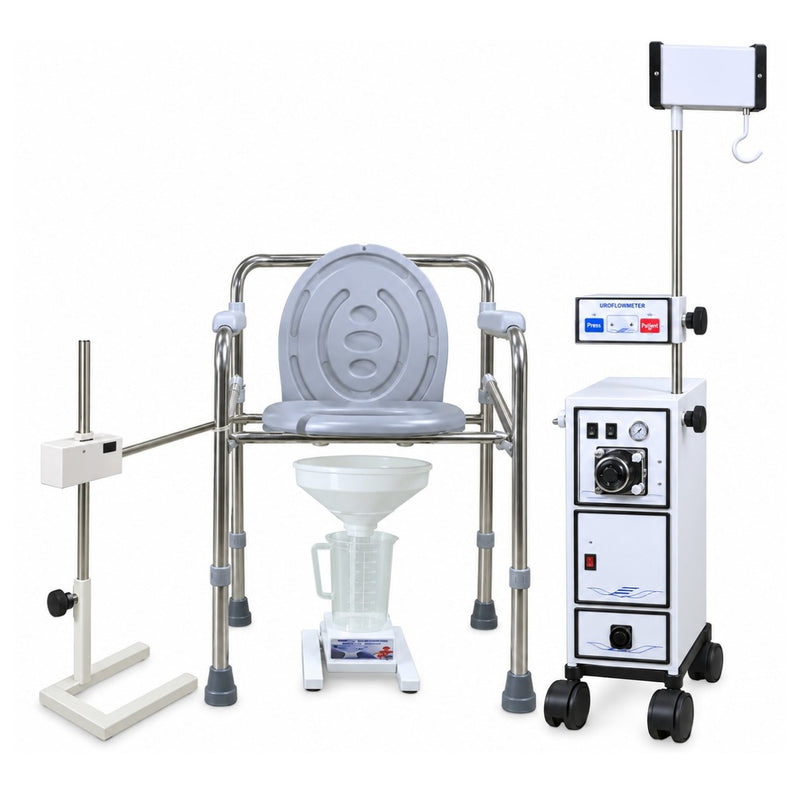

Uroflow Measurement
The urodynamics system includes uroflow measurement for:
- Flow (Qura)
- Voided Volume (Qvol)
The uroflow sensor uses a weight-based measurement principle.
Uroflow Specifications
| Parameter |
Specification |
| Sensor Type |
Weight-based |
| Flow Range |
0–100 ml/sec |
| Sensitivity |
0.5 ml/second |
EMG Measurement
The system provides 1-channel EMG measurement using pad electrodes.
The specified EMG output is a rectified EMG signal, providing EMG information as part of the urodynamic examination.
Windows-Based Urodynamics Software
The Santron system uses Windows-based, user-friendly software with a graphical user interface (GUI).
The PC-based software is designed to support the system's measurement functions and graphical presentation of urodynamic information.
USB PC Connectivity
The system connects to the computer through USB connectivity, providing a wired communication interface between the urodynamic equipment and PC.
Technical Specifications
| Specification |
Details |
| Product |
Santron PC-Based Urodynamics System |
| System Type |
PC-Based Digital Urodynamics |
| Pressure Sensors |
2 |
| Pressure Parameters |
Vesical, Abdominal, Detrusor & Urethral Pressure |
| Infused Volume |
Vinf |
| Infusion Sensor |
Weight-based |
| Maximum Bottle Capacity |
1000 ml plastic bottle |
| Uroflow Parameters |
Flow (Qura) & Voided Volume (Qvol) |
| Uroflow Sensor |
Weight-based |
| Uroflow Range |
0–100 ml/sec |
| Uroflow Sensitivity |
0.5 ml/second |
| EMG |
1 channel |
| EMG Electrodes |
Pad electrodes |
| EMG Signal |
Rectified EMG |
| Software |
Windows-based |
| User Interface |
Graphical UI |
| PC Connectivity |
USB |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
