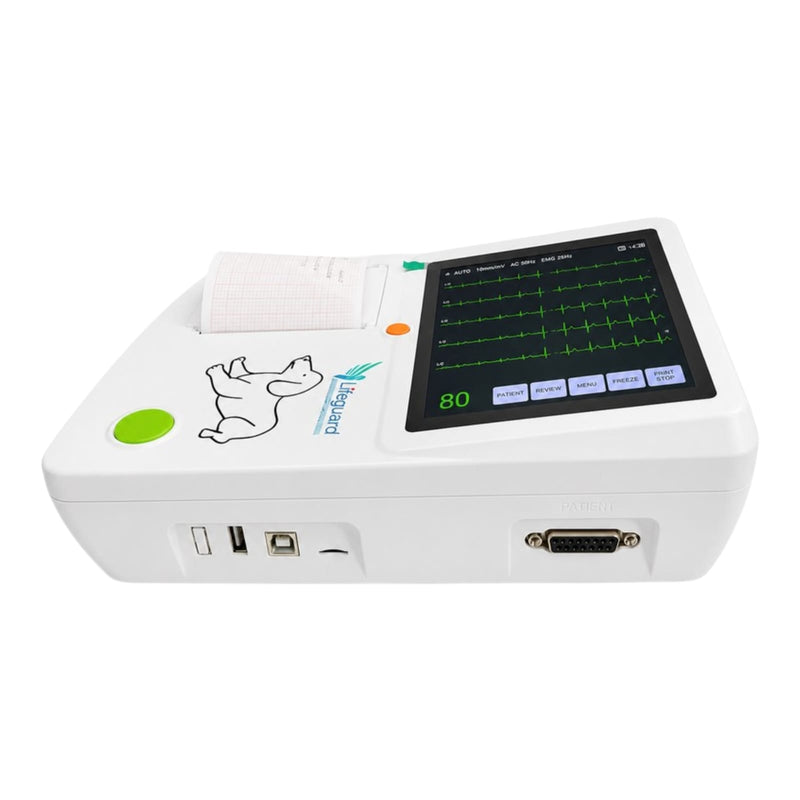

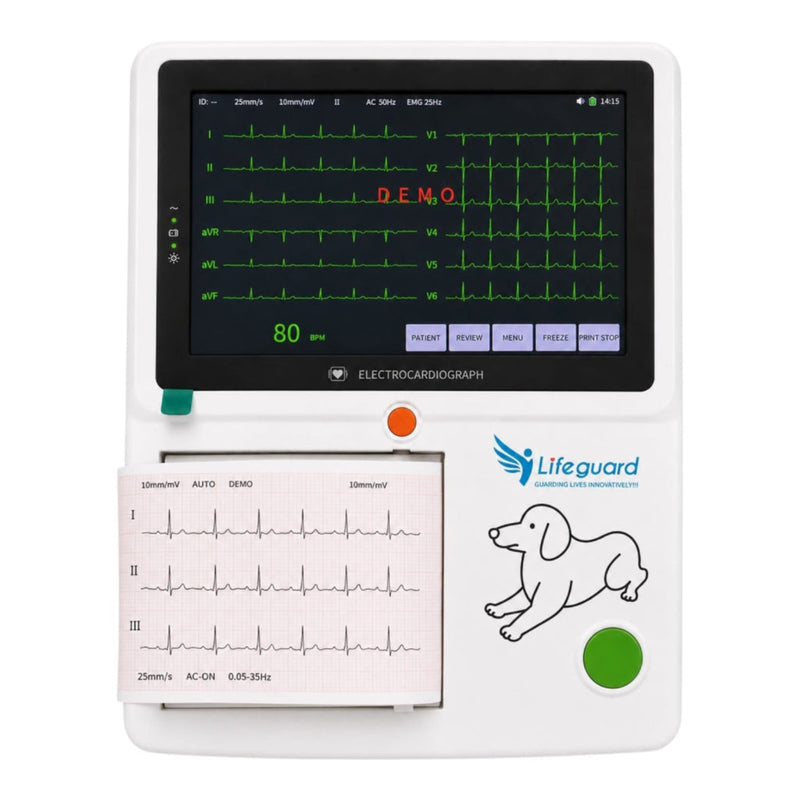

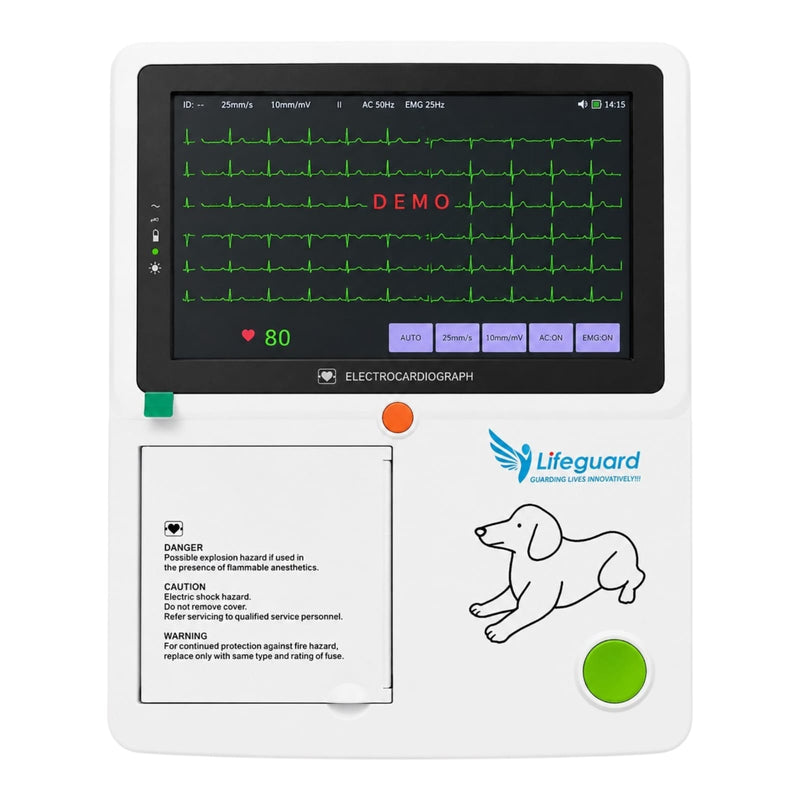

Life Guard 3-Channel Portable Veterinary ECG Machine With Interpretation
- Description
- Features
- Specifications
-
The Life Guard 3-Channel Veterinary ECG Machine is a high-quality, user-friendly animal ECG machine designed to meet the diagnostic needs of modern veterinary practices. Whether you're treating household pets or larger animals, this advanced ECG device delivers precise cardiac readings and supports accurate clinical decisions.
Featuring a 7-lead ECG signal acquisition system and 3-channel recording, the Life Guard ECG provides simultaneous, real-time monitoring with clear, synchronized waveform output. Its vibrant 7-inch color touch screen ensures easy navigation and accurate interpretation of ECG data, while the built-in 80mm thermal printer produces professional-quality reports instantly.
This versatile veterinary medical equipment supports both Auto and Manual operating modes, automatic measurement and analysis, and detailed waveform review. With features like rhythm lead selection, P-R interval trend charts, and histogram analysis, it helps veterinarians identify abnormalities quickly and confidently. Animal-specific information can be input directly, and all historical ECG data can be stored, reviewed, or reprinted for long-term case management.
Built for convenience, it offers USB flash disk and SD memory support, along with USB keyboard and mouse compatibility. It runs on both AC and DC power, with a built-in rechargeable lithium-ion battery, making it suitable for in-clinic use and field visits alike. Energy-saving features like sleep mode, plus intelligent alerts for lead disconnection or lack of paper, enhance workflow efficiency.
Whether you're equipping a clinic or upgrading your existing setup, the Life Guard veterinary ECG machine is an essential addition to your veterinary medical equipment collection. Purchase today from Health Yantra Store and provide your animal patients with the best in cardiac care.
-
Features of Life Guard 3-Channel Veterinary ECG Machine
✓ 3-Channel ECG Recording – Captures and prints 3 ECG waveforms simultaneously with high accuracy
✓ 7/12-Lead ECG Sampling – Ensures detailed and synchronized signal acquisition
✓ 7-Inch Color Touch Screen – Bright, responsive display for easy touch operation
✓ Built-In Thermal Printer – 80mm paper with 7 adjustable print thickness levels
✓ Auto/Manual Modes – Flexible operation for various diagnostic needs
✓ Automatic Measurement & Analysis – Calculates and analyzes ECG parameters instantly
✓ Data Management System – Supports USB flash disk, SD card, and historical data review/reprint
✓ Animal Info Input – Input animal-specific details for customized record-keeping
✓ Multi-Language Interface – Designed to accommodate diverse clinical environments
✓ USB Keyboard & Mouse Support – For faster and easier data entry
✓ Lead-Off & Paper-Out Detection – Smart alerts for seamless operation
✓ Rechargeable Li-ion Battery – AC/DC dual power mode for portability and backup use
✓ Energy-Saving Sleep Mode – Extends screen life and conserves battery -
Technical Specifications – Life Guard 3-Channel Veterinary ECG Machine
- Product Name: ECG Machine for Animal
- Group: Animal Use
- Display: 7″ Color Touch Screen
- Recording Method: High-resolution thermal printer
- Recording Paper: Thermal recording paper
- Paper Speed: 12.5, 25, 50 mm/s (±3%)
- Sensitivity: 5, 10, 20 mm/mV
- CMRR: ≥ 100 dB (with AC filter)
- Calibrating Voltage: 1 mV ± 3%
- Input Impedance: > 50 MΩ
- Input Circuit Current: ≤ 0.1 µA
- Patient Current Leakage: < 10 µA
- Resolution: 12 bit / 1000 Hz
- Time Constant: > 3.2 seconds
- Frequency Response: 0.05 Hz ~ 150 Hz
- Operation Modes: Manual / Auto
- Noise Level: ≤ 15 µV (peak-to-peak)
- Filters: AC Filter, EMG Filter, Anti-Drift System
- Battery: Built-in rechargeable Li-ion battery (11.1V, 2200mAh)
- Power Supply: AC 110–230V, 50/60 Hz
- Data Storage: USB flash drive & SD card support
- External Interface: Supports USB keyboard and mouse
- Package Dimensions: 256mm × 204mm × 66mm
- Transport Package: Sturdy cardboard box
