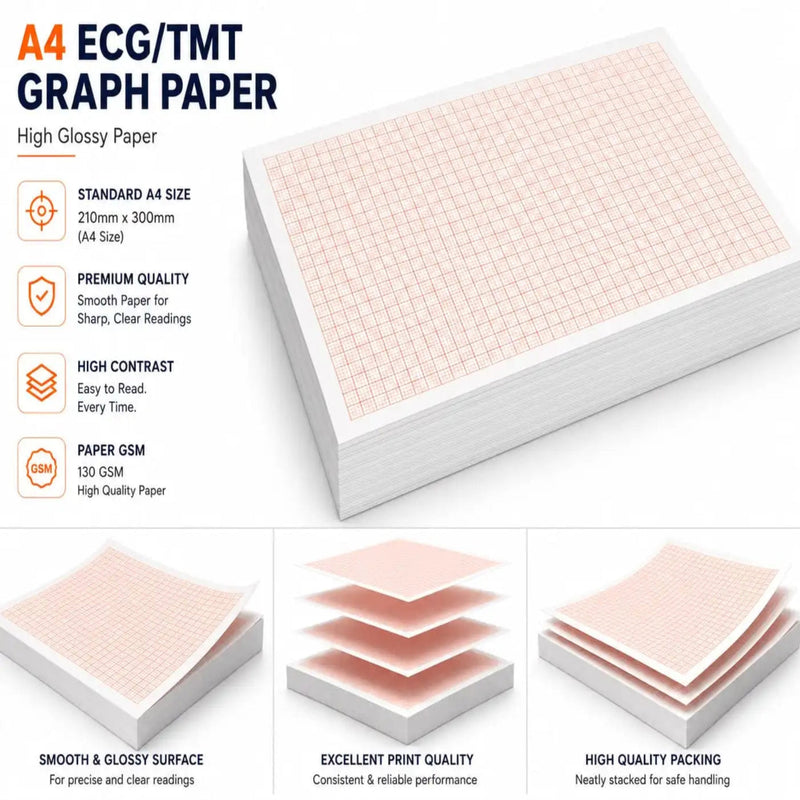

A4 ECG/TMT graph paper sheets shown on a white background with feature callouts and close-up panels. The product is a glossy white paper sheet printed with a light pink grid.

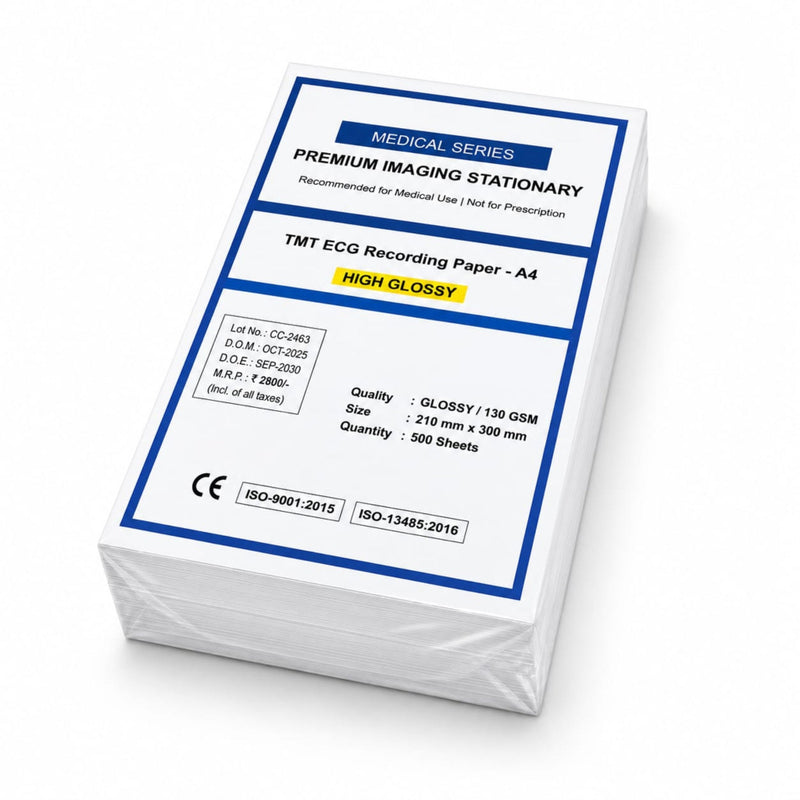

A stack of TMT ECG Recording Paper A4 sheets in a clear plastic wrap, showing the white paper with blue and black printed text on the front cover.

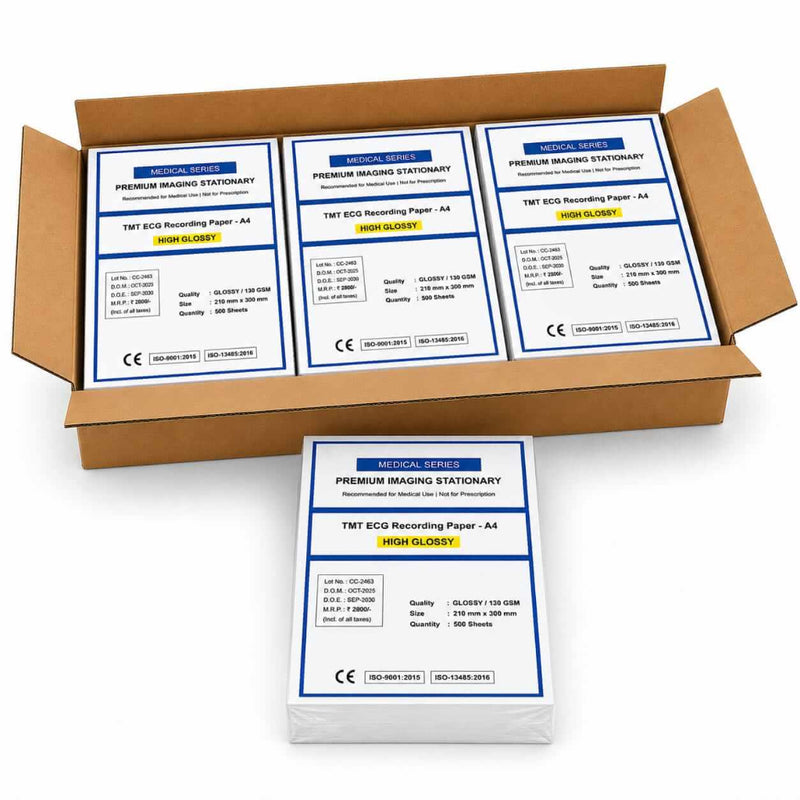

A brown cardboard box containing three packs of TMT ECG Recording Paper - A4 High Gloss, with one pack displayed in front on a clean white background.
A4 ECG/TMT graph paper sheets shown on a white background with feature callouts and close-up panels. The product is a glossy white paper sheet printed with a light pink grid.
A stack of TMT ECG Recording Paper A4 sheets in a clear plastic wrap, showing the white paper with blue and black printed text on the front cover.
A brown cardboard box containing three packs of TMT ECG Recording Paper - A4 High Gloss, with one pack displayed in front on a clean white background.

A4 High-Glossy TMT / ECG Recording Paper (130 GSM, 210mm x 300mm – Pkt of 500 Sheets)

by Biotronix Instruments
Save 36% Save 33%
Rs. 2,360.00
Rs. 2,360.00 - Rs. 7,080.00
Rs. 2,360.00
Rs. 1,590.00
Rs. 1,590.00 - Rs. 4,500.00
Rs. 1,590.00

(MRP: Inclusive of all taxes)

⚡ Why Buy From Us?

📄 GST Invoice: Claim Input Tax Credit

🔒 100% Genuine: Official Manufacturer Warranty

💵 Payments Option: UPI, Cards, Net Banking & COD

⚡ Fast Shipping: Ships in 24–48 Hours Across India

🎧 Biomedical Support: Free Remote Demo & Support

🤝 Buyer Protection: Easy Replacement & Returns

Pack Size: 1 Pkt (500 Sheets)

Ask Quotation

Talk to a Biomedical Expert

Product Selection • Best Price • Technical Support

Ensure precise, high-definition cardiac diagnostic reporting with medical-grade A4 High-Glossy TMT Recording Paper. Specially manufactured for Treadmill Stress Tests (TMT) and multi-channel ECG monitoring, this heavy-duty recording paper delivers crisp, distortion-free waveform printouts and accurate grid lines required by cardiologists for reliable clinical evaluation.

Key Features & Benefits

  • Premium High-Glossy Finish (130 GSM): Built with a heavy-duty 130 GSM base and a smooth high-gloss coating designed for maximum contrast, rapid ink setting, and sharp, smudge-resistant print outcomes.

  • Non-Thermal Plain Paper Spec: Formulated specifically for standard Inkjet and LaserJet printers integrated with medical monitoring systems (not for direct-thermal thermal-head printers).

  • Broad Machine Compatibility: Fully compatible with leading cardiac stress test systems including RMS, Allengers, Clarity Medical, Medicaid, Uni-em, Nasan, and other standard TMT/ECG setups.

  • Precision Diagnostic Grids: Accurate red/pink grid markings enable easy reading of subtle ECG waveform changes, heart rate fluctuations, and ST-segment trends under physical exertion.

  • Standard Cut-Sheet Dimensions (210mm x 300mm): Precision-cut A4 sheets ensure smooth jam-free feeding through standard desktop and medical-grade laser or inkjet printers.

  • Protective Hospital Packaging: Supplied in a moisture-resistant 500-sheet pack to preserve paper quality against humidity, dust, and handling damage prior to use.

Technical Specifications

Parameter Specification
Product Type TMT / ECG Stress Test Recording Paper (Cut-Sheet)
Sheet Dimensions 210mm x 300mm (Standard A4 Size)
Paper Weight 130 GSM
Surface Finish High Glossy
Print Technology Inkjet & LaserJet Compatible (Non-Thermal)
Compatible Brands RMS, Allengers, Clarity Medical, Medicaid, Uni em, Nasan & general TMT systems
Quantity 500 Sheets / Packet
Primary Application Treadmill Stress Tests (TMT), Multi-Channel Cardiac Recording

Applications

Ideal for hospitals, cardiology labs, diagnostic centers, and healthcare clinics using PC-based or printer-integrated TMT stress test equipment requiring long-lasting, clear waveform printouts for medical files and patient reporting.

Frequently Asked Questions

Is this A4 Glossy TMT paper compatible with standard desktop printers?
Yes. This 130 GSM High-Glossy A4 TMT Recording Paper is a non-thermal plain paper specially formulated for standard Inkjet and LaserJet printers connected to PC-based TMT and multi-channel ECG systems. It allows hospitals and diagnostic labs to print high-resolution cardiac waveforms directly through office or medical-grade desktop printers
What pack sizes or box variants are available for bulk hospital orders?
This A4 High-Glossy TMT Stress Test Paper is available in two convenient packaging options: Box of 1 Packet: Contains 500 sheets (ideal for smaller clinics or low-volume testing). Box of 3 Packets: Contains 1,500 sheets (500 sheets x 3 packs), ideal for high-volume hospital diagnostic centers seeking bulk savings). Both variants are sealed in moisture-resistant protective packaging to safeguard the paper against humidity and dust.
Can I use this A4 paper in direct-thermal TMT or ECG machines?
No. This is non-thermal paper designed exclusively for Inkjet and LaserJet printers. It does not react to direct heat thermal printing heads. If your stress test or ECG machine has an internal thermal printer, you will need thermal paper rolls or thermal Z-fold packs.
Which medical equipment brands are compatible with this TMT recording paper?
This paper is cut to standard 210mm x 300mm A4 dimensions and features standard red/pink diagnostic grid lines, making it universally compatible with major PC-based TMT stress test systems, including RMS, Allengers, Clarity Medical, Medicaid, Uni-em, Nasan and all other major PC-integrated cardiac diagnostic equipment using standard A4 desktop printers.
Why is 130 GSM high-glossy paper recommended for TMT stress test recording over regular copy paper?
Standard copy paper ($70\text{--}80\text{ GSM}$) easily absorbs ink, leading to bleeding, smudging, and faint grid visibility. The heavy-duty 130 GSM base with a high-gloss coating ensures fast ink setting, vivid contrast, sharp grid resolution, and distortion-free ECG waveforms. This allows cardiologists to clearly identify ST-segment changes, arrhythmias, and subtle cardiac abnormalities under physical exertion.
Does the high-gloss print fade over time in hospital patient records?
No. Unlike thermal recording paper—which turns dark or fades when exposed to heat, light, or alcohol rub—this high-glossy plain paper printed via laserjet or inkjet ink is archival quality. Printouts remain sharp, clean, and legible indefinitely inside long-term patient medical files.
What are the exact dimensions of each sheet?
Each sheet is precision cut to 210mm x 300mm(Standard A4 cut-sheet format), ensuring smooth, jam-free paper feeding through automatic document trays during long recording sessions.
