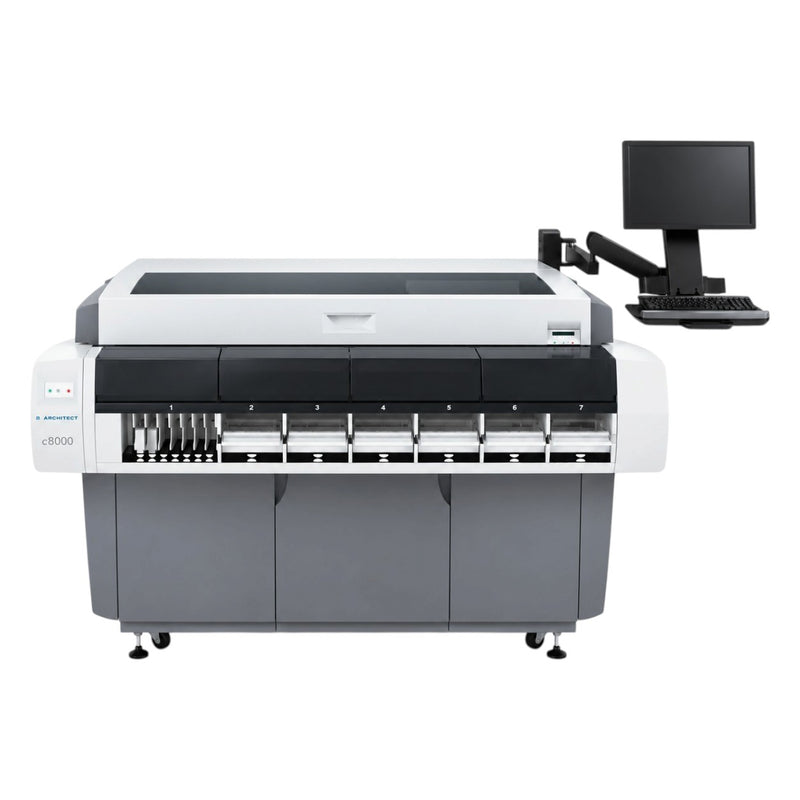

Abbott ARCHITECT c8000 Clinical Chemistry Analyzer for medical laboratory testing

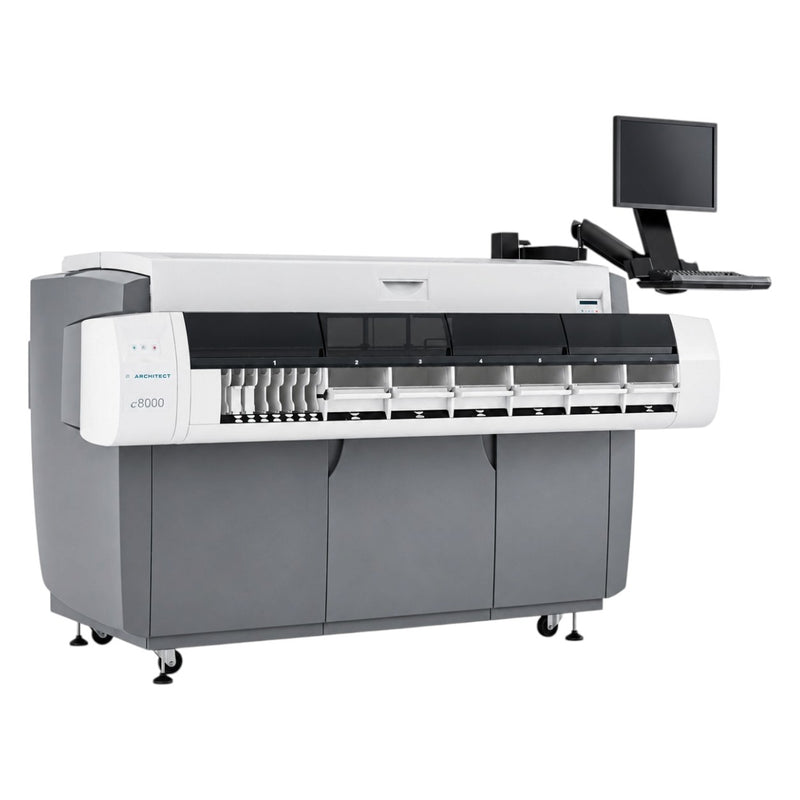

Abbott ARCHITECT c8000 clinical chemistry analyzer with 121 refrigerated reagent positions
Abbott ARCHITECT c8000 Clinical Chemistry Analyzer for medical laboratory testing
Abbott ARCHITECT c8000 clinical chemistry analyzer with 121 refrigerated reagent positions

Abbott ARCHITECT c8000 Clinical Chemistry Analyzer

by Abbott Laboratories
Rs. 0.00 - Rs. 0.00
Rs. 0.00
Rs. 0.00 - Rs. 0.00
Rs. 0.00

🛡️ Why Buy From Us?

📄 GST Invoice: Claim Input Tax Credit

🔒 100% Genuine: Official Manufacturer Warranty

💵 Payments Option: UPI, Cards, Net Banking & COD

⚡ Fast Shipping: Ships in 24–48 Hours Across India

🎧 Biomedical Support: Free Remote Demo & Support

🤝 Buyer Protection: Easy Replacement & Returns

Contact For Price
Contact For Price
GST Invoice
Free Shipping
7 Days Replacement
Biomedical Support
Talk to a product expert Product Selection • Best Price • Technical Support

Ask Quotation

The Abbott ARCHITECT c8000 is a powerful, medium-volume clinical chemistry machine used in medical labs. It helps run a large number of biochemical tests quickly and reliably, giving confidence in first-time results and reducing the need for repeat runs.

Test Menu

  • Photometric assays

  • Potentiometric assays

  • Turbidimetric assays

  • Electrolyte tests (Na⁺, K⁺, Cl⁻) using Integrated Chip Technology

Key Highlights

  • Very high throughput: up to 1,200 tests per hour

  • Large sample capacity: can hold up to 215 samples with 35 priority positions

  • 121 refrigerated reagent positions on board, plus space for ISE reagents (Na, K, Cl)

  • Very low sample carryover: ≤ 0.1 ppm from tube to tube

  • Built-in safety checks: sample, clot, and bubble detection

  • Remote diagnostics supported via AbbottLink

Technical Specifications

Specification Details
Methods Photometric, Potentiometric, Turbidimetric
Max Throughput Up to 1,200 tests/hour
Sample Types Serum, plasma, whole blood, urine, CSF
Sample Tube Height 72–102 mm
Sample Tube Diameter 9.6–16.1 mm
Sample Capacity 215 samples (with 35 priority samples)
Sample Volume 1.5–35 µL (average ~7.2 µL)
Automatic Dilution Yes
Carryover <1000 ppm (WB→WB), ≤0.1 ppm (WB→Serum)
Reagent Capacity Up to 121 refrigerated positions + ISE positions
Reagent Type >97% liquid, ready-to-use
Onboard Reagent Stability 5–65 days (average ~38 days)
Calibration Frequency 1–60 days (average ~25 days)
Interference Detection Hemolysis, icterus, lipemia detection
System Control SCC with touchscreen, keyboard, mouse
Error Help Built-in online error code help
Interface Bidirectional, serial RS-232 + host query
Remote Diagnostics Via AbbottLink
Dimensions (H × W × D) 121.9 × 200.6 × 124.5 cm (48″ × 79″ × 49″)
Weight ~1,425 lbs (646.4 kg)
Electrical AC 180–264V, 47–63 Hz, 20 A
Water Requirement Deionized water, ~25 L/hour during operation
Heat Output ~3,400 BTU/hour in running mode

Product Disclaimer

Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.

Frequently Asked Questions

What is the Abbott ARCHITECT c8000 Clinical Chemistry Analyzer?
The Abbott ARCHITECT c8000 is a clinical chemistry analyzer used in medical laboratories for biochemical testing.
What is the maximum throughput of the Abbott ARCHITECT c8000?
The specified maximum throughput is up to 1,200 tests per hour.
Which assay methods does the Abbott ARCHITECT c8000 support?
It supports photometric, potentiometric and turbidimetric assays.
Does the Abbott ARCHITECT c8000 support electrolyte testing?
Yes, the supplied information lists electrolyte testing for sodium, potassium and chloride using Integrated Chip Technology.
How many samples can the Abbott ARCHITECT c8000 hold?
It can hold up to 215 samples, including 35 priority sample positions.
How many reagent positions does the Abbott ARCHITECT c8000 have?
It has up to 121 refrigerated reagent positions, plus positions for ISE reagents.
What is the sample volume range of the Abbott ARCHITECT c8000?
The listed sample volume range is 1.5–35 µL, with an average of approximately 7.2 µL.
Which sample types are supported by the Abbott ARCHITECT c8000?
The supplied specifications list serum, plasma, whole blood, urine and CSF.
What is the calibration frequency of the Abbott ARCHITECT c8000?
The supplied calibration frequency is 1–60 days, with an average of approximately 25 days.
What system controls does the Abbott ARCHITECT c8000 use?
The listed system control includes SCC with touchscreen, keyboard and mouse.
