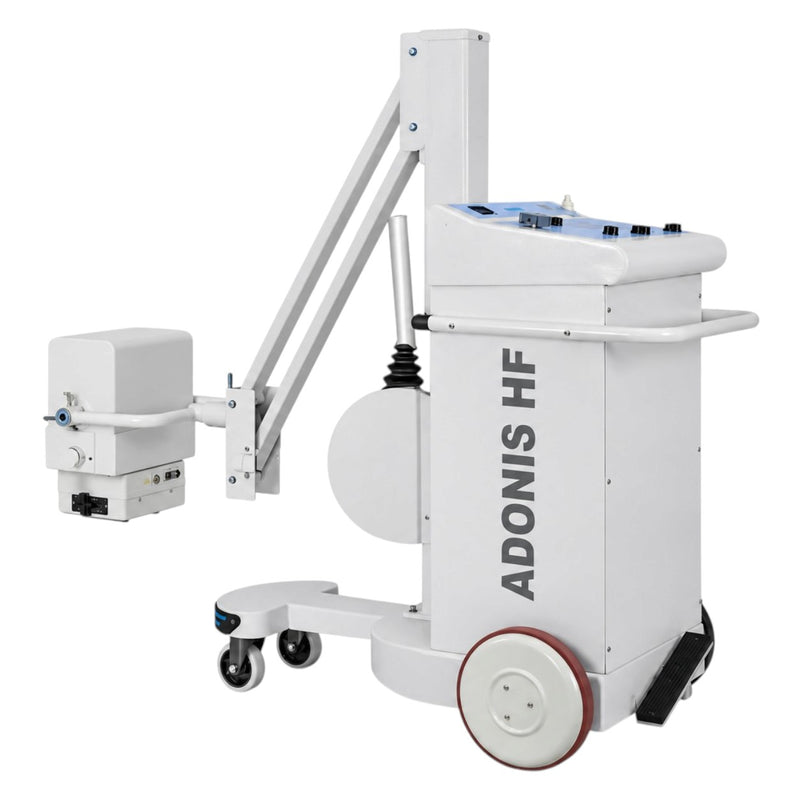

The Adonis HF Mobile X-Ray Machine is a high-frequency mobile X-ray system designed for imaging in hospital wards, intensive care units (ICUs), and emergency care environments. Its compact design, wheeled structure, and actuator-based arm movements support convenient manoeuvrability and positioning.
The system features 200 pre-programmed Anatomical Program Register (APR) function keys with predefined kVp and mAs values. Users can select kVp in 2 kV increments and adjust mAs in single steps. Additional features include 12 blank keys for user-based programming and factory recall, microprocessor-based protection, and machine self-diagnostic checks.
The Adonis HF mobile X-ray system is available in three single-phase power variants: 4 kW, 6 kW, and 8 kW. The product range also offers fixed X-ray system options for outpatient and departmental applications.
Key Features
-
High-Frequency X-Ray System: Designed for mobile radiography in hospital environments.
-
Wheeled Mobile Design: Supports easy manoeuvrability and handling.
-
Compact Structure: Designed for convenient movement and positioning.
-
Actuator-Based Arm Movement: Supports smooth arm movements.
-
200 Pre-Programmed APR Keys: Includes predefined kVp and mAs values.
-
Adjustable kVp: User-selectable kVp in 2 kV increments.
-
Single-Step mAs Adjustment: Allows mAs selection in single steps.
-
Single-Phase Operation: Designed to operate using 15 A sockets.
-
12 Blank Programmable Keys: Supports user-based programming and factory recall.
-
Microprocessor-Based Protection: Includes machine self-diagnostic checks.
-
Body-Part-Specific Settings: Special function settings based on specific body-part positioning.
-
Fixed-System Option: Fixed X-ray system configurations are available for outpatient and departmental applications.
Technical Specifications
| Specification |
Details |
| Brand |
Adonis |
| Product Type |
High-frequency mobile X-ray system |
| Generator Technology |
High frequency |
| Available Power Variants |
4 kW, 6 kW, 8 kW |
| Power Supply Configuration |
Single phase |
| Socket Requirement |
15 A socket |
| APR Function Keys |
200 pre-programmed keys |
| APR Settings |
Predefined kVp and mAs values |
| kVp Adjustment |
User-selectable in 2 kV increments |
| mAs Adjustment |
Single-step increase |
| Programmable Keys |
12 blank keys |
| Arm Movement |
Actuator-based |
| Protection System |
Microprocessor-based |
| Self-Diagnostics |
Machine self-diagnostic check |
| Additional Configuration |
Fixed X-ray system option for outpatient/department applications |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
