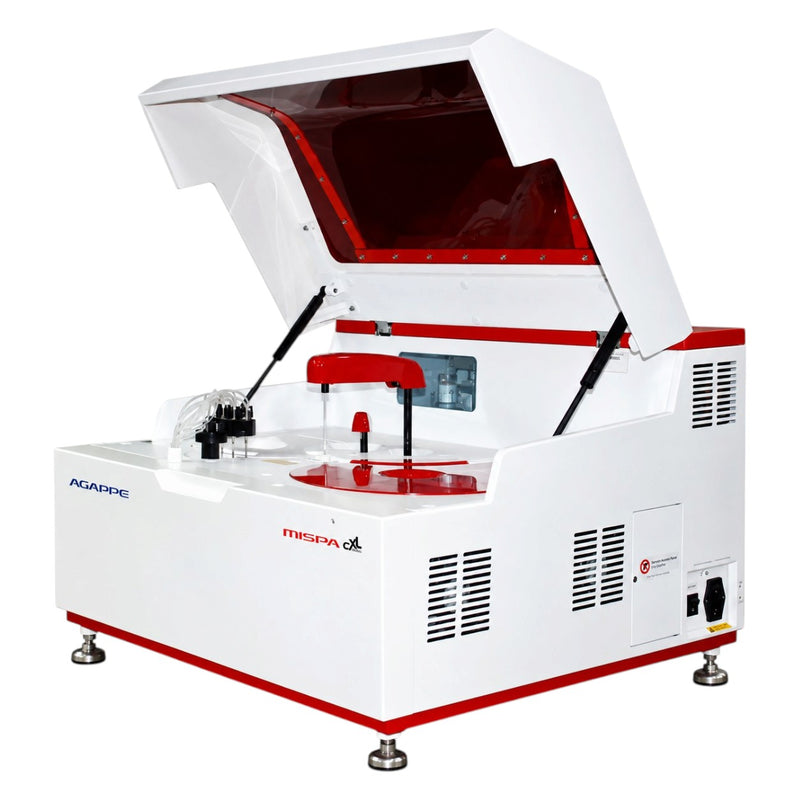

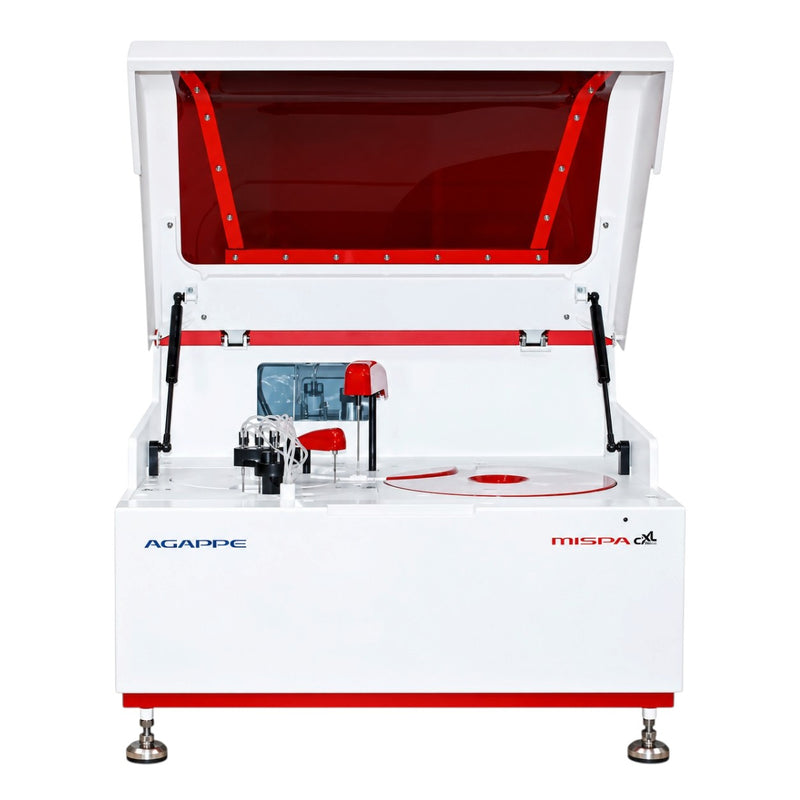

The Agappe Mispa CXL Pro Plus Fully Automated Biochemistry Analyzer is a fully automated, discrete, random-access clinical chemistry analyzer with a photometric throughput of up to 240 tests per hour. It features spectrophotometry, HCFG rear spectrophotometry, 12 wavelength positions, and a wavelength range of 340–800 nm.
Designed for clinical chemistry testing, the Mispa CXL Pro Plus supports single and dual reagent chemistries, end-point, fixed-time, and kinetic testing, along with routine and specialized chemistry parameters. Its multi-function sample and reagent carousel accommodates up to 80 positions, with sample volumes of 2–35 µL, reagent volumes of 10–300 µL, and reaction volumes of 100–360 µL.
Key Features
-
Fully automated, discrete, random-access clinical chemistry analyzer
-
Photometric throughput of up to 240 tests per hour
-
Multi-function sample and reagent carousel
-
HCFG rear spectrophotometry system
-
12 wavelength positions with a range of 340–800 nm
-
Probe with DLL detection and vertical collision protection
-
On-board hemolysis function for HbA1c
-
Triple-speed mixing mechanism
-
Laundry system with 7 stops and 11 steps
-
UV plastic semi-permanent reaction cuvette
-
Bubble detection function for accurate aspiration
-
Water consumption of 4 L/hour
-
Advanced user-friendly software
-
Calibration and QC program
-
TCP/IP network connection
Test Menu
-
Clinical chemistry testing
-
Single and dual reagent chemistries
-
End-point testing
-
Fixed-time testing
-
Kinetic testing
-
Routine chemistry parameters
-
Specialized chemistry parameters
Technical Specifications
| Specification |
Details |
| Analyzer Type |
Fully automatic, discrete, random-access clinical chemistry analyzer |
| Throughput |
Up to 240 tests/hour |
| Measuring Principle |
Spectrophotometry |
| Photometric System |
HCFG rear spectrophotometry |
| Wavelengths |
340–800 nm, 12 wavelength positions |
| Sample/Reagent Positions |
Up to 80 |
| Sample Volume |
2–35 µL |
| Reagent Volume |
10–300 µL |
| Reaction Volume |
100–360 µL |
| Reaction Cuvette |
UV plastic semi-permanent cuvette |
| Calibration |
One-point, two-point, multipoint, 4P, 5P, spline, exponential and polynomial |
| Quality Control |
Westgard multi-rule and Levey-Jennings chart |
| Water Consumption |
4 L/hour |
| Connectivity |
TCP/IP network connection |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
