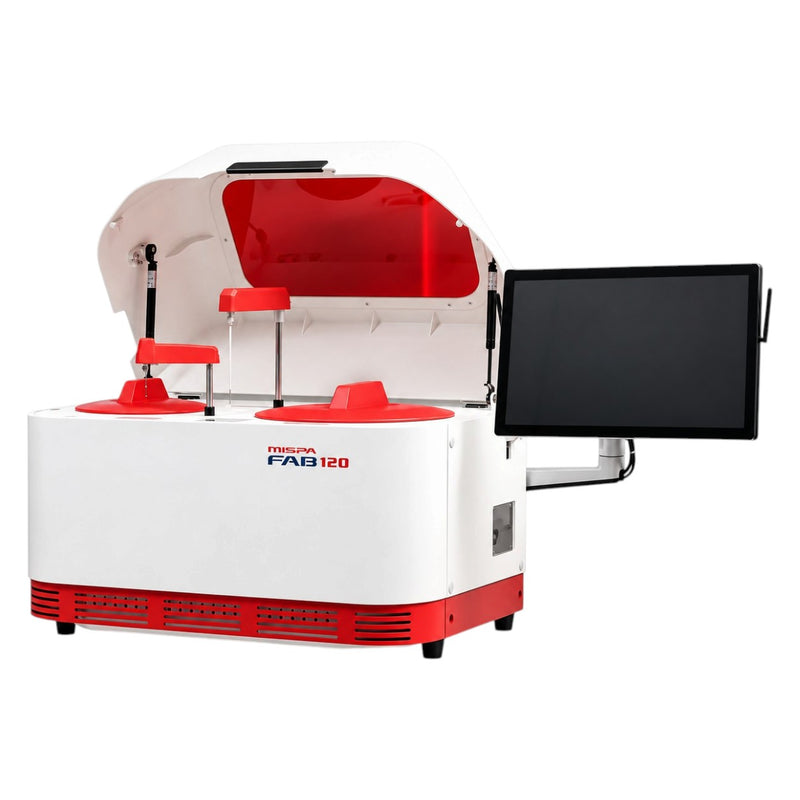

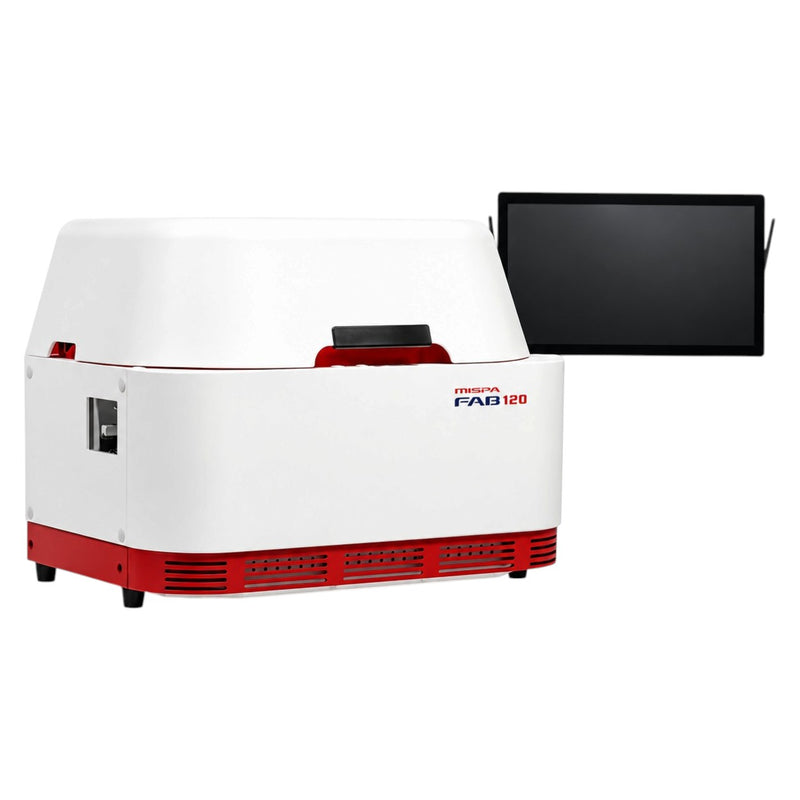

The Agappe Mispa FAB 120 Fully Automatic Biochemistry Analyzer is an automated clinical chemistry analyzer designed for routine biochemical testing in diagnostic laboratories. With a stated throughput of up to 120 tests per hour, it supports random-access testing and STAT sample priority to help laboratories manage routine and urgent samples.
The Mispa FAB 120 features a multifunctional sample and reagent carousel, an all-in-one touchscreen PC, and a full-sealed matrix spectrometric system. Its optical system supports colorimetry and turbidimetry across eight specified wavelengths, while 50 UV plastic disposable cuvettes support the reaction process.
Additional features include probe liquid-level detection (LLD), vertical collision protection, intelligent quality control and calibration management, and bidirectional LIS connectivity. With stated water consumption of less than 1.8 litres per hour, the analyzer is designed to support laboratory workflow efficiency while minimizing water use.
Key Features of Agappe Mispa FAB 120
-
Throughput up to 120 tests/hour: Designed for routine clinical chemistry testing.
-
Random-access testing: Supports flexible test processing based on laboratory workflow.
-
STAT sample priority: Allows urgent samples to receive priority.
-
40 sample positions: Provides onboard capacity for sample handling.
-
50 UV plastic disposable cuvettes: Supports the analyzer's reaction system.
-
All-in-one touchscreen PC: Combines the user interface and computer system for convenient operation.
-
Full-sealed matrix spectrometric system: A specified feature of the analyzer's optical system.
-
Colorimetry and turbidimetry: Supports these two measurement principles.
-
Eight optical wavelengths: 340, 405, 450, 510, 546, 578, 630, and 670 nm.
-
Low water consumption: Specified at less than 1.8 L/hour.
-
Probe liquid-level detection: Helps detect liquid during probe operation.
-
Vertical collision protection: Designed to protect the probe from vertical collisions.
-
Intelligent QC and calibration management: Supports laboratory quality-control and calibration workflows.
-
Bidirectional LIS connectivity: Supports data exchange with compatible laboratory information systems.
Technical Specifications
| Specification |
Details |
| Brand |
Agappe |
| Model |
Mispa FAB 120 |
| Analyzer type |
Fully automatic clinical chemistry analyzer |
| Throughput |
Up to 120 tests/hour |
| Testing mode |
Random access |
| Urgent sample handling |
STAT sample priority |
| Sample positions |
40 |
| Reaction cuvettes |
50 UV plastic disposable cuvettes |
| Measurement principles |
Colorimetry and turbidimetry |
| Wavelengths |
340, 405, 450, 510, 546, 578, 630, 670 nm |
| Optical system |
Full-sealed matrix spectrometric system |
| Sample and reagent handling |
Multifunctional sample and reagent carousel |
| User interface |
All-in-one touchscreen PC |
| Probe features |
Liquid-level detection (LLD) and vertical collision protection |
| Quality control |
Westgard multi-rule, cumulative sum check, and twin plot |
| Calibration management |
Intelligent QC and calibration management |
| LIS connectivity |
Bidirectional |
| Water consumption |
Less than 1.8 L/hour |
Ā
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
