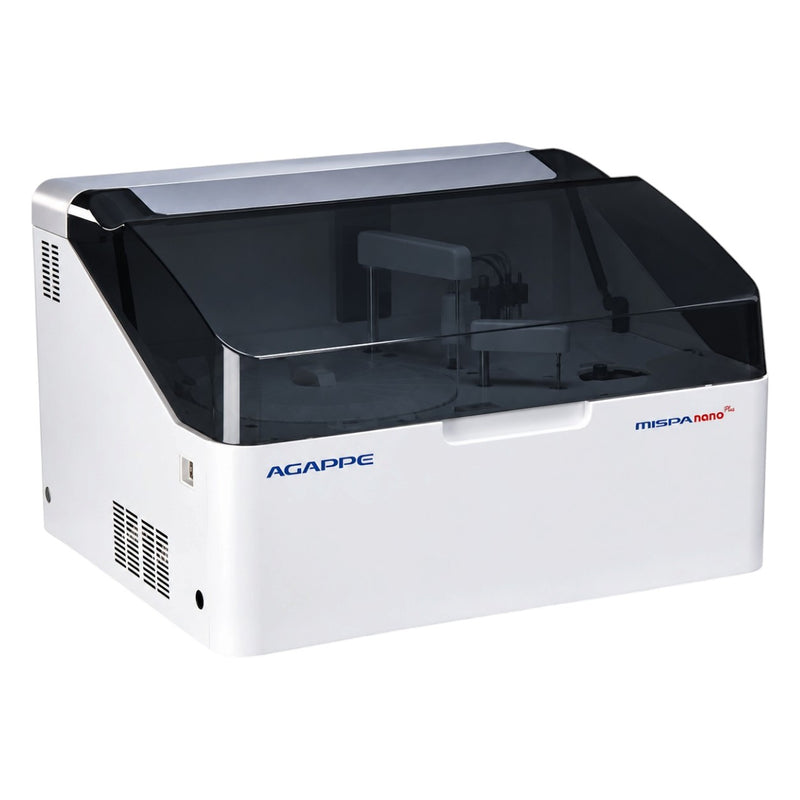

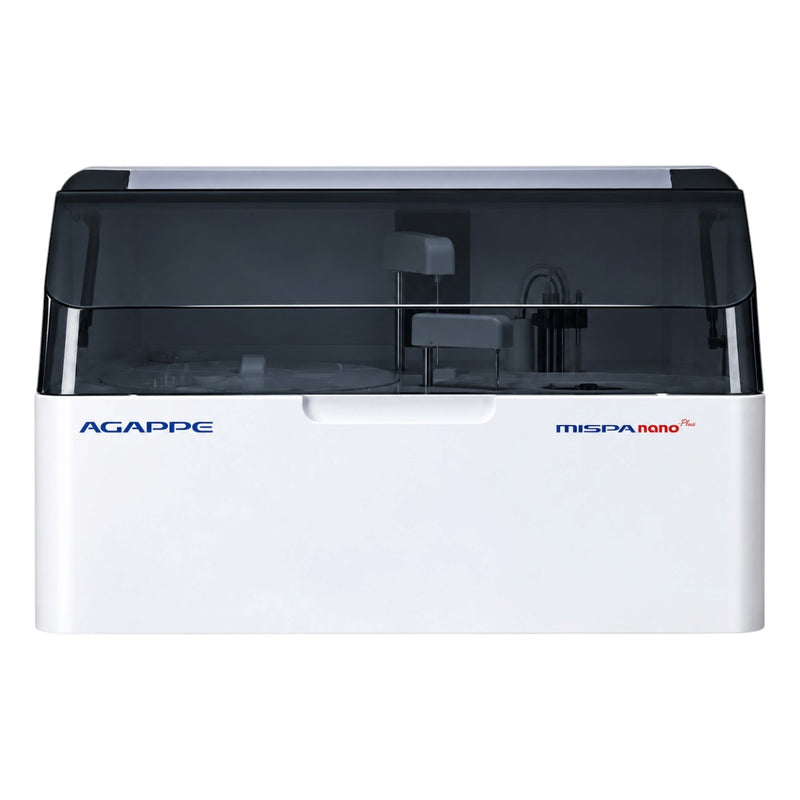

The Agappe Mispa Nano Plus Fully Automated Biochemistry Analyzer is a fully automatic clinical chemistry analyzer designed for entry-level to medium-volume laboratories, offering a throughput of up to 360 tests per hour.
The analyzer features a proven grating photometer, 12 wavelengths from 340 to 800 nm, on-board reagent refrigeration at 2–12°C for 24 hours, and an on-board laundry system. Its liquid level detection, double switch for lamp control, and user-friendly intuitive software support clinical chemistry testing.
The Agappe Mispa Nano Plus has 50 reagent positions and 50 sample positions. It uses 80 reusable reaction cuvettes, with a minimum reaction volume of 100 µL and a 4-stage cuvette washing system. The analyzer supports primary tubes, aliquot tubes, and micro cups, with smart sampling for HbA1c.
Key Features
-
Fully automatic clinical chemistry analyzer
-
Throughput of up to 360 tests per hour
-
Proven grating photometer
-
Double switch for lamp control
-
On-board reagent refrigeration at 2–12°C for 24 hours
-
On-board laundry system
-
Liquid level detection
-
User-friendly intuitive software
-
50 reagent positions and 50 sample positions
-
80 reusable reaction cuvettes
-
Minimum reaction volume of 100 µL
-
12 wavelengths from 340 to 800 nm
-
4-stage cuvette washing
-
Smart sampling for HbA1c
-
Supports primary tubes, aliquot tubes, and micro cups
-
Water consumption of 6.5 L/hour
Test Menu
-
Liver function tests
-
Kidney function tests
-
Lipid profile
-
Cardiac markers
-
Electrolytes
-
Routine chemistries
-
Special chemistries, including CRP, LDH, and ferritin
-
Glucose
-
Urea
-
Creatinine
-
Enzyme tests, including SGOT, SGPT, and ALP
-
Protein profile, including total protein and albumin
Technical Specifications
| Specification |
Details |
| Analyzer Type |
Fully automatic clinical chemistry analyzer |
| Throughput |
Up to 360 tests/hour |
| Reagent Cooling |
2–12°C for 24 hours |
| Sample Positions |
Up to 100 |
| Reaction Cuvettes |
80 reusable cuvettes |
| Minimum Reaction Volume |
100 µL |
| Optical System |
Grating photometry |
| Wavelengths |
12 wavelengths from 340 to 800 nm |
| Auto Wash |
4-stage cuvette washing |
| Special Sampling |
Smart sampling for HbA1c |
| Sample Types |
Primary tubes, aliquot tubes, and micro cups |
| Water Consumption |
6.5 L/hour |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
