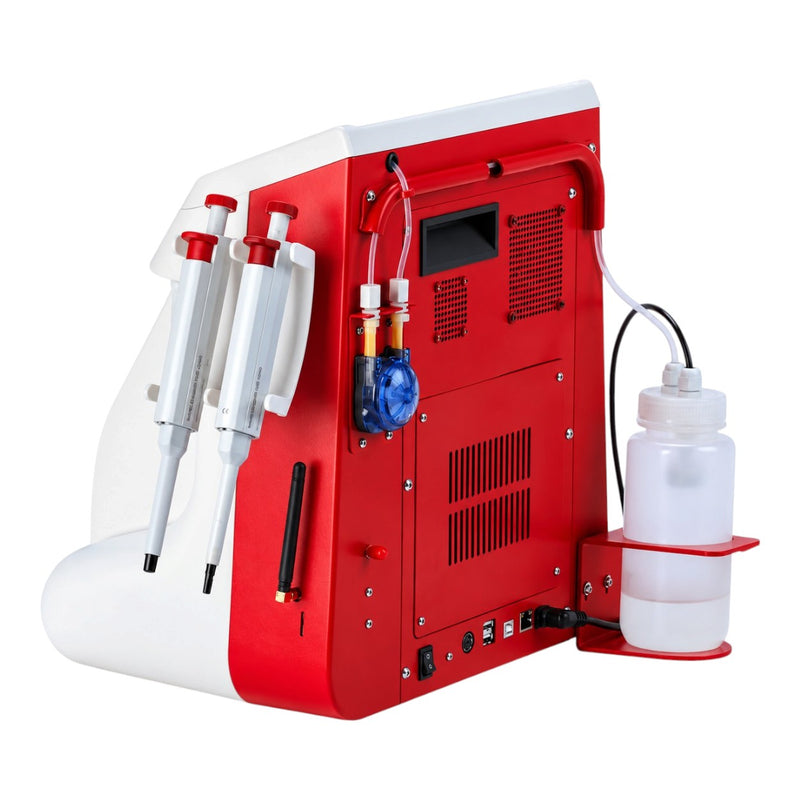

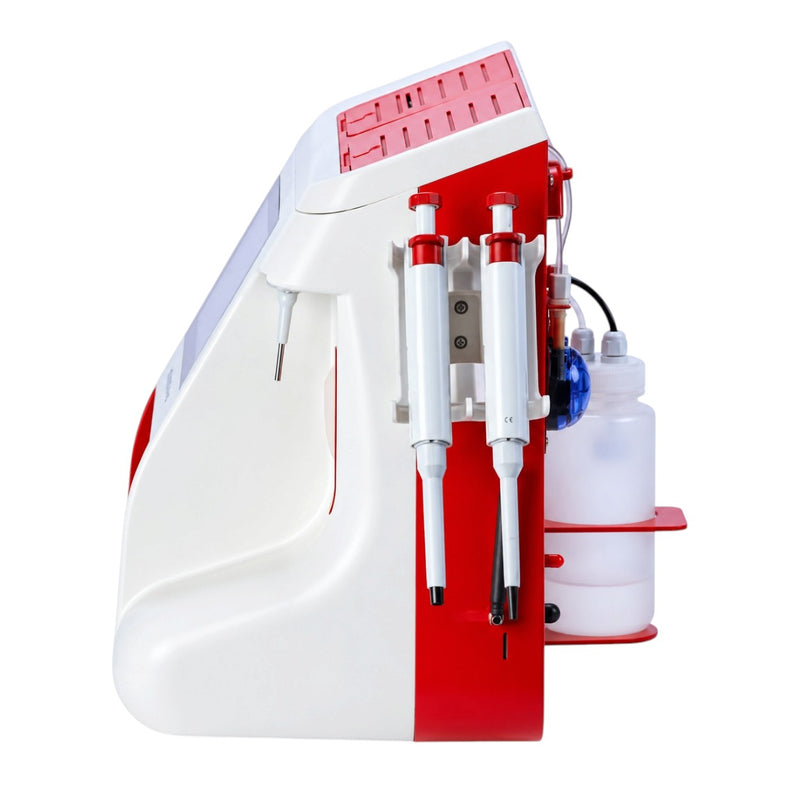

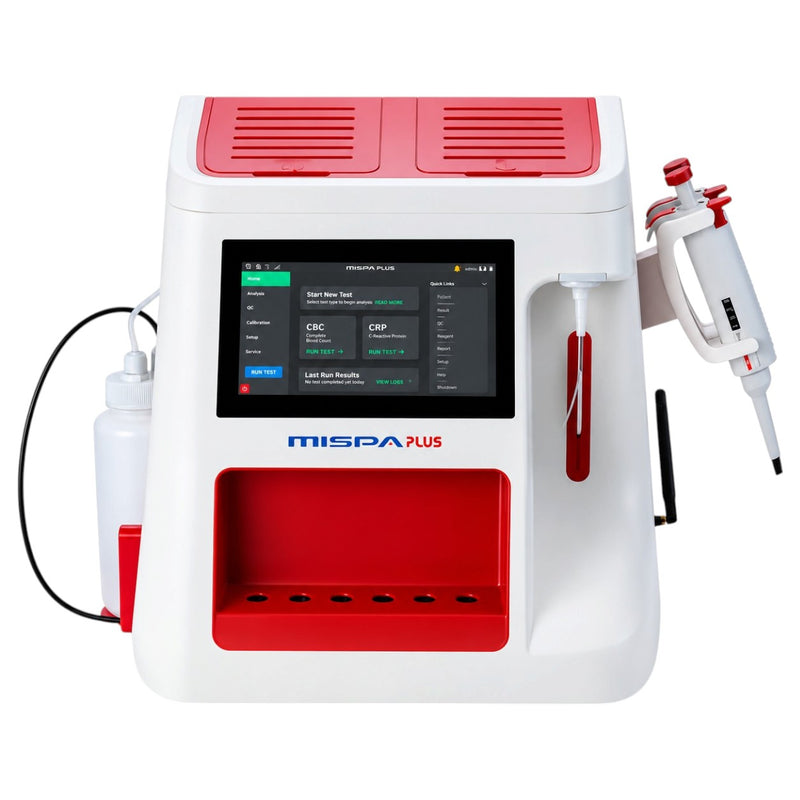

The Agappe Mispa Plus Semi Automated Biochemistry Analyzer is a clinical chemistry analyzer featuring Penta Lens Photometry, a touchscreen interface, and support for up to 300 programmable channels. Designed for clinical chemistry testing, it supports routine biochemical investigations and calculated tests.
With a 7-inch TFT touchscreen, a 10-channel quick test menu, an inbuilt six-well incubator, and a peristaltic E-cassette pump, the Agappe Mispa Plus combines programmable testing capabilities with convenient laboratory operation. Its quality control features, result storage, and connectivity options support laboratory data management and quality monitoring.
Key Features of Agappe Mispa Plus
-
Penta Lens Photometry: Optical measurement system for clinical chemistry testing.
-
300 Programmable Channels: Supports up to 300 programmable channels.
-
10-Channel Quick Test Menu: Provides quick access to selected routine tests.
-

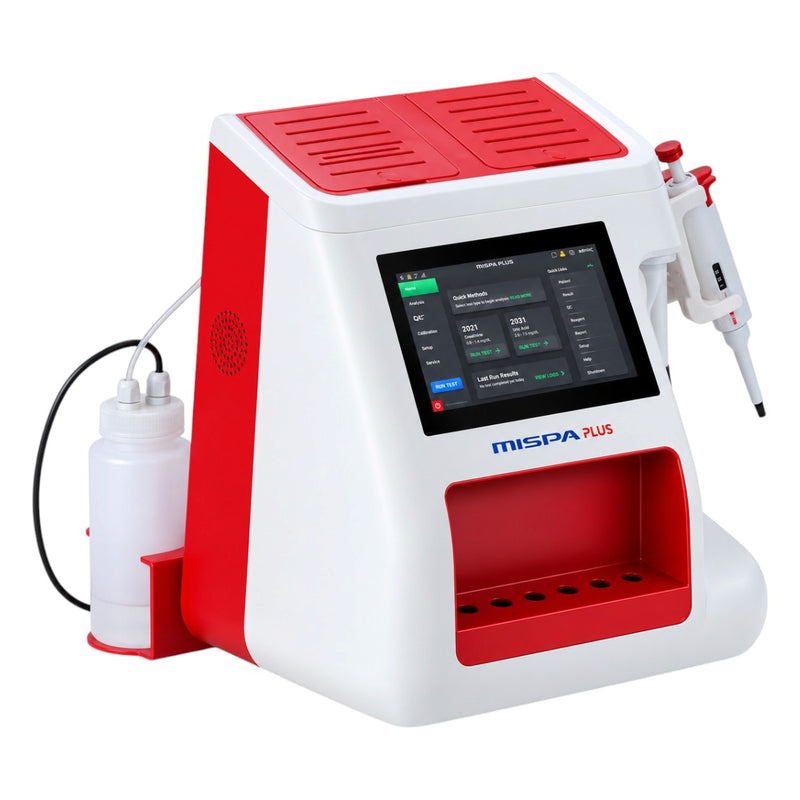

7-Inch TFT Touchscreen: Touchscreen interface for analyzer operation.
-
Multiple Wavelengths: Six standard wavelength filters with two optional positions.
-
Peristaltic Pump: E-cassette-type pump system.
-
Inbuilt Six-Well Incubator: Supports incubation during biochemical testing..
-
Result and QC Storage: Stores 5,000 test results and 27,000 control results.
-
Connectivity: Supports USB, Ethernet, GSM, and Bluetooth.
-
LIS Compatibility: Supports connection with a laboratory information system.
Technical Specifications
| Specification |
Details |
| Product Name |
Agappe Mispa Plus Biochemistry Analyzer |
| Brand |
Agappe |
| Model |
Mispa Plus |
| Analyzer Type |
Semi-automated clinical chemistry analyzer |
| Photometry |
Penta Lens Photometry |
| Programmable Channels |
Up to 300 |
| Quick Test Menu |
10 channels |
| Display |
7-inch TFT touchscreen |
| Light Source |
Tungsten halogen |
| Wavelengths |
340, 405, 505, 546, 578, 630 nm |
| Optional Wavelength Positions |
2 |
| Optical Path |
10 mm |
| Pump Type |
Peristaltic, E-cassette type |
| Incubator |
Inbuilt 6-well incubator |
| Temperature Settings |
25°C, 30°C, 37°C |
| Analysis Modes |
Linear, non-linear, rate, absorbance, bichromatic, kinetic |
| Calibration |
Up to 10 points |
| Quality Control |
Westgard algorithm and Levey-Jennings chart |
| Test Result Memory |
5,000 results |
| Control Result Memory |
27,000 results |
| Battery Backup |
Up to 30 minutes |
| LIS Compatibility |
Compatible |
| Connectivity |
USB, Ethernet, GSM, Bluetooth |
| Test Menu |
Routine clinical chemistry and calculated tests |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
