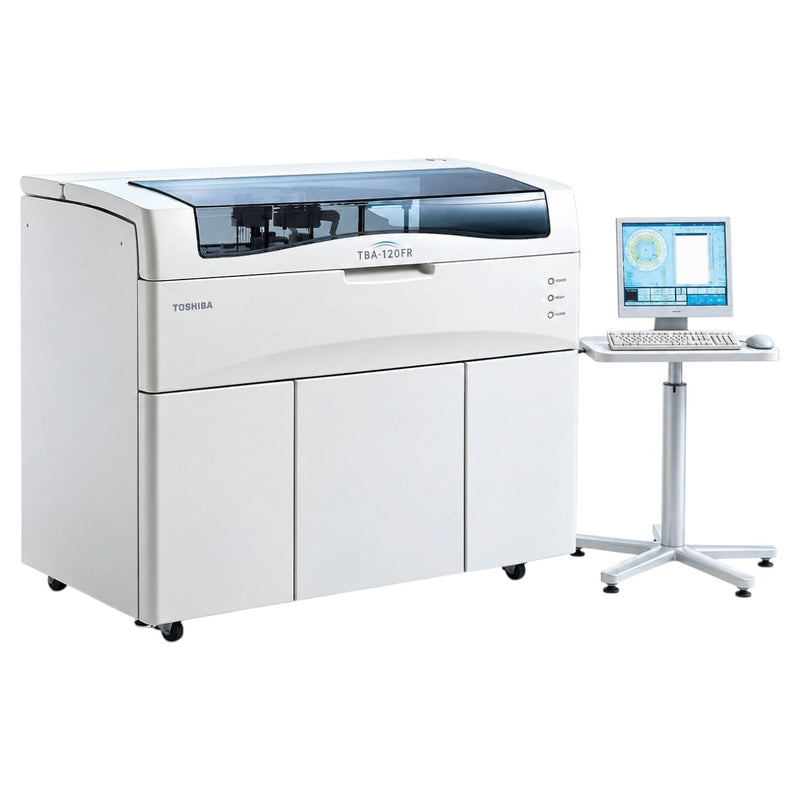

The Agappe TBA-120FR Pearl is a fully automated clinical chemistry analyzer designed for high-throughput laboratories. It can handle a wide range of tests, including biochemistry, electrolytes, and optional HbA1c. It uses durable hard-glass cuvettes, supports random-access sample loading, and provides fast, accurate results with minimal manual intervention. The machine is ideal for hospitals, diagnostic labs, and research centers requiring reliable and efficient biochemical analysis.
Test Menu
-
Liver function tests: SGOT/AST, SGPT/ALT, Bilirubin, Albumin
-
Kidney function tests: Urea, Creatinine
-
Lipid profile: Total cholesterol, HDL, LDL, Triglycerides
-
Glucose and HbA1c: HbA1c available with optional module
-
Proteins and enzymes: Amylase, Lipase, CRP, etc.
-
Electrolytes: Sodium (Na⁺), Potassium (K⁺), Chloride (Cl⁻)
-
Urine biochemistry tests
Key Highlights
-
High throughput: 800 photometric tests/hour; 600 ISE tests/hour
-
Dual reagent compartments for efficient workflow
-
Up to 100 samples can be loaded simultaneously with random-access processing
-
Piezoelectric stirring ensures uniform mixing
-
Integrated clot detection and optional HbA1c measurement
-
Flexible reagent bottle sizes: 20–100 mL
-
Automatic cuvette washing for reuse
-
Supports lab information system (HIS/LIS) connectivity
Technical Specifications
| Specification |
Details |
| Operation Type |
Fully automatic, random-access |
| Maximum Throughput |
800 photometric tests/hour; 600 ISE tests/hour |
| Sample Capacity |
Up to 100 samples (dual-disk sampler) |
| Measurement Methods |
End assay, rate assay, ISE (electrolytes) |
| Sample Volume |
1.0–35.0 µL |
| Reagent Volume |
20–345 µL per reagent |
| Final Reaction Volume |
70–360 µL |
| Wavelength Range |
340–804 nm |
| STAT Position |
1 urgent sample position |
| Reaction Bath |
Discrete type reaction bath |
| Power Supply |
200 VAC, ~3 kVA |
| Dimensions (W × D × H) |
160 × 85 × 122 cm |
| Weight |
Approx. 570 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
