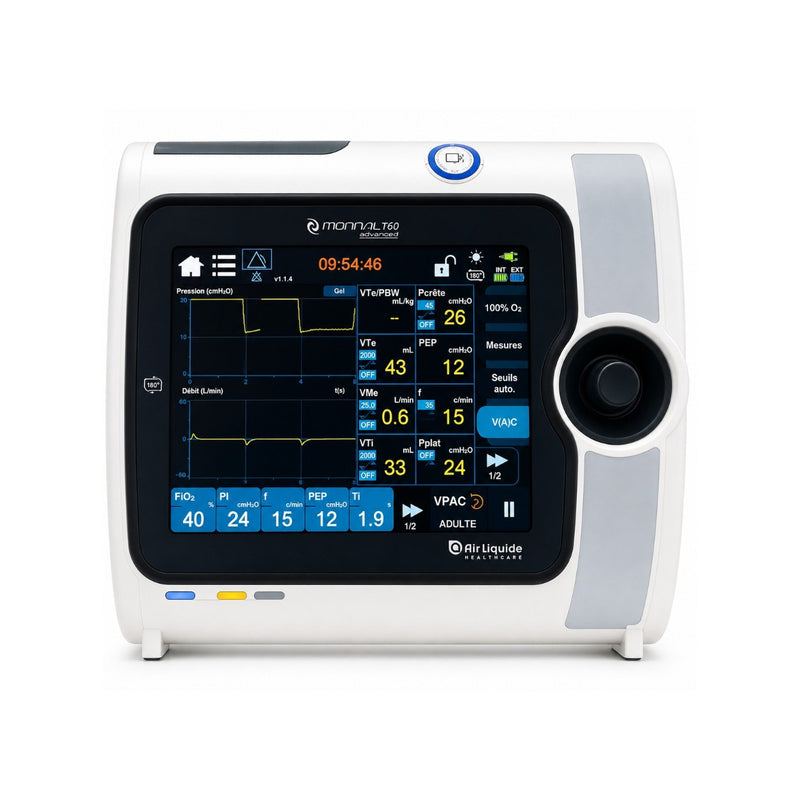

Air Liquide Monnal T60 Transport Ventilator

The Refurbished Air Liquide Monnal T60 Ventilator is a lightweight, turbine-powered transport ventilator designed to provide respiratory support for infants weighing 3 kg and above, children, and adults. Its compact 3.7 kg design makes it suitable for patient transport and mobile critical-care applications.

The Monnal T60 operates using turbine-based air propulsion, allowing the ventilator to function independently of a high-pressure air source. It features an 8.4-inch color touchscreen for intuitive operation and monitoring.

The ventilator provides approximately 5 hours of total battery autonomy, using a 2.5-hour internal battery combined with a 2.5-hour extractable secondary battery.

Supporting both invasive and non-invasive ventilation, the Monnal T60 offers standard ventilation modes such as VCV, PCV, SIMV and CPAP, along with advanced modes including PRVC, Duo-level, PSIMV and PS-Pro. It also incorporates NIV and built-in Nasal High Flow Therapy (HFOT).

Designed specifically for transport applications, the Monnal T60 has EN 13718 and RTCA DO-160F air-transport certifications and 20G impact resistance, according to the supplied specifications. It also provides automatic atmospheric-pressure compensation and can be configured with carrying bags, ambulance charging stations, roll stands and bed hooks.

As a refurbished medical device, the exact condition, battery performance, configuration, accessories, software and functional/calibration status should be verified before procurement and clinical use.

✅ Key Features

• ✅ Refurbished Air Liquide Monnal T60 Ventilator
• ✅ Lightweight 3.7 kg transport ventilator
• ✅ Turbine-powered air propulsion
• ✅ Does not require a high-pressure air source
• ✅ Suitable for infants 3 kg and above
• ✅ Built-in Nasal High Flow Therapy (HFOT)
• ✅ 8.4-inch color touchscreen
• ✅ Up to 5 hours total battery autonomy
• ✅ 2.5-hour internal battery
• ✅ 2.5-hour extractable secondary battery
• ✅ EN 13718 air-transport certification
• ✅ RTCA DO-160F air-transport certification
• ✅ 20G impact resistance
• ✅ Carrying bag compatibility
• ✅ Ambulance charging station compatibility
• ✅ Roll-stand compatibility
• ✅ Bed-hook compatibility

Ventilation Modes

The Refurbished Monnal T60 Transport Ventilator supports a broad range of ventilation modes.

Standard Modes

• VCV – Volume Controlled Ventilation
• PCV – Pressure Controlled Ventilation
• SIMV – Synchronized Intermittent Mandatory Ventilation
• CPAP – Continuous Positive Airway Pressure

Advanced Modes

• PRVC – Pressure Regulated Volume Control
• Duo-level
• PSIMV
• PS-Pro – Automatic Mode

Additional Respiratory Therapies

• NIV – Non-Invasive Ventilation
• Nasal High Flow Therapy (HFOT)

The exact availability of individual modes should be confirmed for the specific refurbished unit.

Patient Range

The Monnal T60 is designed for a wide patient range:

• Infants: 3 kg and above
• Children
• Adults

This broad patient range makes the platform suitable for transport ventilation across different age groups when appropriately configured.

Battery & Portability

The Monnal T60 has a lightweight 3.7 kg design and a dual-battery configuration.

Actual battery performance of a refurbished unit may vary according to battery age, condition, ventilation settings and operating conditions.

Mobility Accessories

Compatible mobility and mounting accessories include:

• Coyote carrying bag
• Wall-mounted ambulance charging station
• 10G ambulance charging station
• Roll stands
• Bed hooks

Availability of accessories depends on the specific refurbished package.

Technical Specifications
