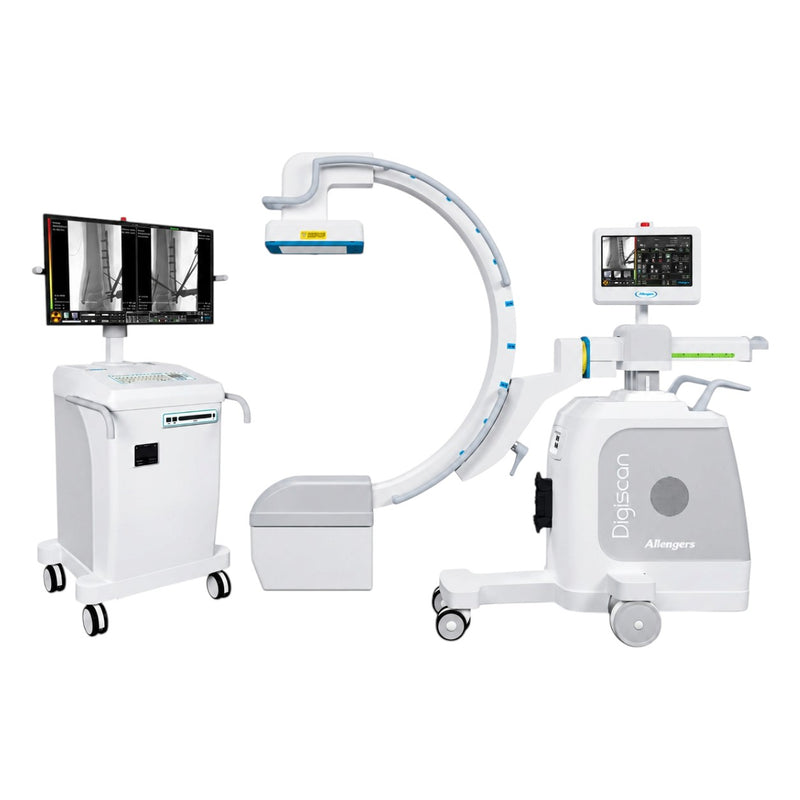

The Allengers DSA 6 Angiography (DSA) System is presented here with specifications for the Allengers HF 59R mobile C-arm system, featuring a flat-panel detector and integrated digital subtraction angiography (DSA). It is designed for a range of interventional and imaging applications, including vascular, peripheral, pacemaker, gastroenterology, orthopedic, spinal/neuro, and urology procedures.
The system features a high-frequency generator, selectable dose levels, digital spot imaging, pulsed fluoroscopy, and pulsed cine modes. Its preview collimation function allows the imaging field to be set before exposure. The Synergy FP-CR software includes application presets and DICOM sharing and archiving capabilities.
Key Features
-
Flat-Panel Detector: Available in 21 × 21 cm or 30 × 30 cm sizes, depending on the application.
-
Integrated DSA: Supports digital subtraction angiography imaging.
-
Preview Collimation: Allows field selection before exposure.
-
Selectable Dose Levels: Includes optimised digital SPOT algorithms for low-dose imaging.
-
Cine Mode: Records up to 150 frames per loop.
-
13-Inch Touch Panel: Located on the horizontal carriage for convenient control.
-
Synergy FP-CR Software: Includes application presets, DICOM sharing, and archiving.
-
Neuro Navigation Compatibility: Supports compatibility with neuro navigation systems.
-
Multiple Exposure Modes: Includes pulsed fluoroscopy, pulsed cine, and digital spot.
-
Flexible Monitor Options: One 32-inch monitor is standard, with two 19-inch or 21-inch monitors available as options.
Technical Specifications
| Specification |
Details |
| Product Name |
Allengers DSA 6 Angiography (DSA) System |
| System Described in Provided Specifications |
Allengers HF 59R mobile C-arm |
| Imaging System |
Mobile C-arm with integrated DSA |
| Generator Power Output |
15 kW |
| Generator Technology |
High frequency |
| X-Ray Tube |
Rotating anode, dual focal spots, monoblock tube head |
| Exposure Modes |
Pulsed fluoroscopy, pulsed cine, digital spot |
| Imaging Chain |
Digital 1.5K × 1.5K |
| Detector |
Amorphous silicon with CsI screen |
| A/D Conversion |
16-bit |
| Detector Size Options |
21 × 21 cm or 30 × 30 cm |
| Collimator |
Full parallel lead shutters |
| Standard Monitor |
1 × 32-inch |
| Optional Monitors |
2 × 19-inch or 21-inch |
| Touch Panel |
13-inch, located on the horizontal carriage |
| Cine Recording |
Up to 150 frames per loop |
| Software |
Synergy FP-CR |
| Digital Connectivity |
DICOM sharing and archiving |
| Navigation Compatibility |
Neuro navigation compatible |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
