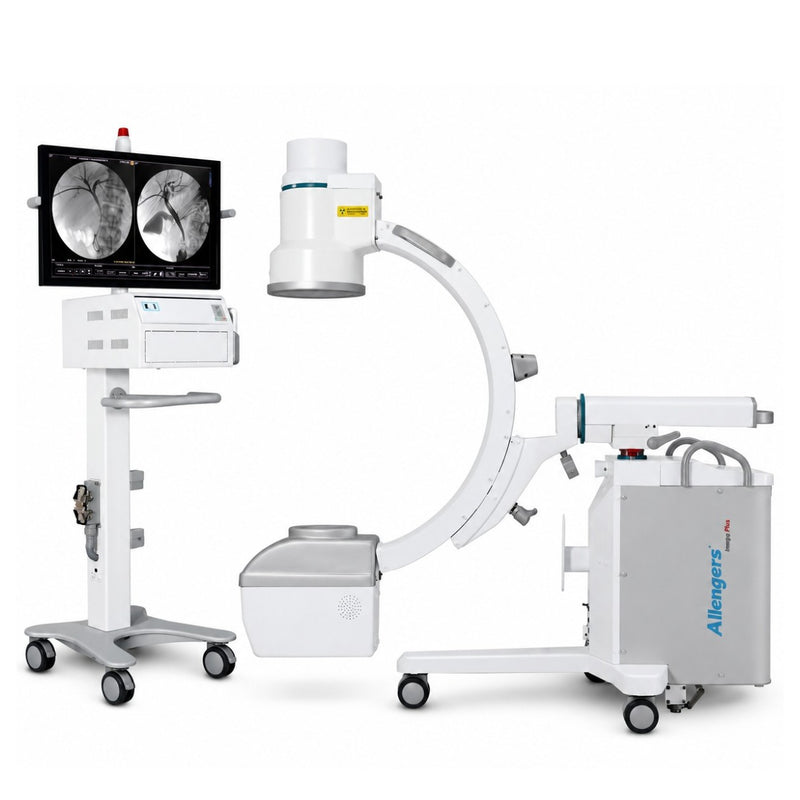

Allengers HF 49 C-Arm Machine

The Refurbished Allengers HF 49 C-Arm Machine is a high-frequency mobile C-arm imaging system designed to provide real-time fluoroscopy and radiography during surgical and interventional procedures. Its mobile C-arm configuration allows imaging to be performed directly in the operating theatre, making it suitable for procedures where intraoperative visualization is required.

The Allengers HF 49 combines a high-frequency X-ray generator, rotating-anode X-ray tube, 9-inch image intensifier, automatic brightness stabilization, and digital image-memory options to support real-time imaging and image review.

With its mobile and ergonomic construction, the system is designed for use in space-constrained operating rooms and can support a range of applications including orthopedic, urological, neurological, and general surgical procedures.

As a refurbished system, the actual configuration, image-processing option, accessories, tube condition, and service history should be verified before purchase.

✅ Key Features

• High-Frequency Generator: 3.5 kW to 6.0 kW generator with a stated operating frequency of 50 kHz.
• Wide kVp Range: Adjustable from 40 to 120 kVp in 1 kV increments.
• Continuous Fluoroscopy: Fluoroscopy operation from approximately 0.1 to 3 mA.
• High-Definition Fluoroscopy: High-definition modes available up to 6 mA.
• Rotating-Anode X-Ray Tube: Dual focal spots of 0.3 mm and 0.6 mm.
• 300 KHU Tube Heat Capacity: Supports demanding imaging workflows within the specified operating conditions.
• 9-Inch Image Intensifier: Provides a 9-inch field with selectable 9", 6", and 4.5" zoom levels.
• Automatic Brightness Stabilizer (ABS): Dynamically adjusts imaging parameters to help maintain consistent image brightness.
• Digital Image Memory: Configurations may include systems such as DIP-IQ or DigiMEM for image storage and split-screen monitoring.
• Mobile C-Arm Design: Allows the imaging system to be positioned around the patient during procedures.
• Low-Radiation Design: High-frequency operation is designed to reduce non-useful and leakage radiation.
• Ergonomic Construction: Suitable for operating theatres where mobility and efficient positioning are important.

High-Frequency X-Ray Generator

The Allengers HF 49 is equipped with a 3.5–6.0 kW high-frequency generator operating at a stated frequency of 50 kHz.

The generator provides an adjustable X-ray tube voltage range of 40–120 kVp, with adjustment in 1 kV increments. This allows imaging parameters to be selected according to the examination and fluoroscopic requirements.

Fluoroscopy Modes

The system supports continuous fluoroscopy with an operating range of approximately 0.1–3 mA. High-definition fluoroscopy modes can provide output up to 6 mA, according to the specified configuration.

These modes are intended to support real-time visualization during surgical procedures.

Rotating-Anode X-Ray Tube

The HF 49 uses a rotating-anode X-ray tube with dual focal spots:

• 0.3 mm focal spot
• 0.6 mm focal spot
• 300 KHU heat capacity

The dual focal-spot configuration provides flexibility for different imaging requirements, while the stated heat capacity supports repeated imaging within the system's operating limits.

9-Inch Image Intensifier

The C-arm incorporates a 9-inch image intensifier with selectable magnification/zoom fields:

• 9-inch
• 6-inch
• 4.5-inch

The multi-zoom configuration allows the operator to select a suitable field of view for the procedure.

Automatic Brightness Stabilizer

The Automatic Brightness Stabilizer (ABS) helps dynamically optimize image brightness during fluoroscopy. By adjusting imaging parameters according to changing conditions, ABS is designed to maintain consistent fluoroscopic visualization.

Digital Image Memory

Depending on the refurbished configuration, the Allengers HF 49 may be equipped with digital image-memory solutions such as DIP-IQ or DigiMEM.

These options can provide features such as:

• High-resolution image monitoring
• Split-screen display
• Frame storage
• Image review during procedures

The exact digital-memory configuration should be confirmed for the individual refurbished machine.

Orthopedic Procedures

• Fracture fixation
• Trauma surgery
• Bone and joint procedures
• Implant positioning
• Spinal procedures

Urological Procedures

• Fluoroscopic guidance
• Stone-related procedures
• Urological interventions
• Catheter and instrument positioning

Neurological Procedures

• Spine-related procedures
• Intraoperative imaging
• Fluoroscopically guided interventions

General Surgery

• Intraoperative visualization
• Surgical instrument positioning
• Fluoroscopic guidance
• Other procedures requiring real-time X-ray imaging

Actual clinical applications depend on the facility, configuration, accessories, and applicable regulatory requirements.

Technical Specifications

Product Disclaimer

Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
