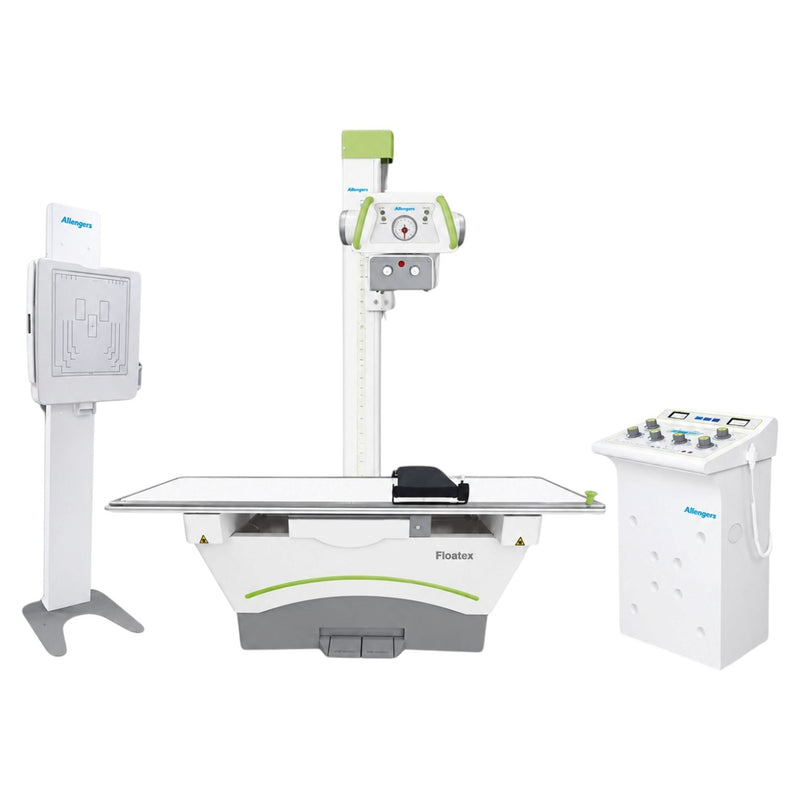

The Allengers LF 325/525 X-Ray Machine is a fixed, line-frequency X-ray system designed for general radiography in hospitals, diagnostic centres, and clinics. Available in LF 325 and LF 525 configurations, the system offers different generator power outputs to suit varying radiography requirements.
The machine features a digital display for kVp, mA, and mAs, spot filming at all mA stations, electronic overload protection, and a solid-state timer for exposure control. Its rotating-anode, dual-focus X-ray tube supports the system's radiographic configuration, while the flexible exposure hand switch cord allows the operator to stand at a distance during exposure.

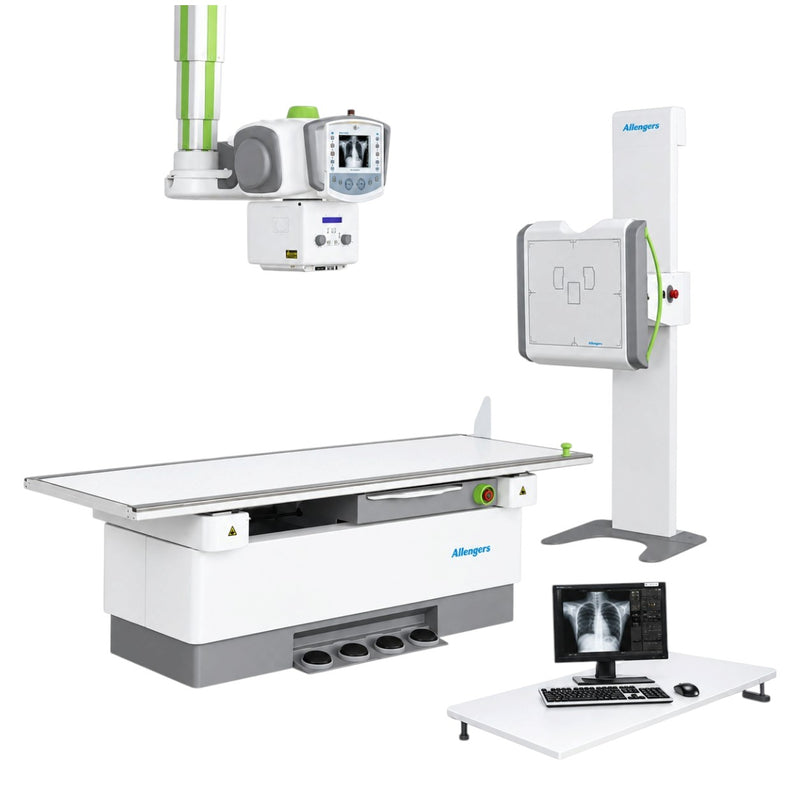

An optional ceiling-suspended tube stand is available to support tube positioning and operator convenience. Additional options listed for the system include IITV, high-resolution monitors, image memory, a vertical bucky stand, double-tube combinations, a semi-automatic spot film device, and anode braking.
Key Features of Allengers LF 325/525 X-Ray Machine
-
Two model configurations: LF 325 and LF 525.
-
Generator power options: 30 kW for LF 325 and 40 kW for LF 525.
-
Digital exposure display: Displays kVp, mA, and mAs.
-
Spot filming: Available at all mA stations, according to the supplied specifications.
-
Electronic overload protection: Designed to protect the X-ray tube and generator.
-
Solid-state timer: Supports exposure-time control.
-
Rotating-anode X-ray tube: Features a dual-focus configuration.
-
Flexible hand switch cord: Allows the operator to stand at a distance during exposure.
-
Optional ceiling-suspended tube stand: Provides an alternative tube-support arrangement.
-
Configurable accessories: Optional equipment includes IITV, high-resolution monitors, image memory, vertical bucky stand, double-tube combinations, semi-automatic spot film device, and anode braking.
Technical Specifications
| Specification |
LF 325 |
LF 525 |
| Brand |
Allengers |
Allengers |
| Model |
LF 325 |
LF 525 |
| Equipment type |
Fixed X-ray machine |
Fixed X-ray machine |
| Generator type |
2-pulse, full-wave rectified |
2-pulse, full-wave rectified |
| Output power |
30 kW |
40 kW |
| Maximum mA |
300 mA |
500 mA |
| X-ray tube |
Rotating anode, dual focus |
Rotating anode, dual focus |
| Power supply |
440/230 V ±10%; model-specific ±20% |
440/230 V ±10%; model-specific ±20% |
| Supply frequency |
50/60 Hz |
50/60 Hz |
| Electrical phase |
AC 3-phase |
AC 3-phase |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
