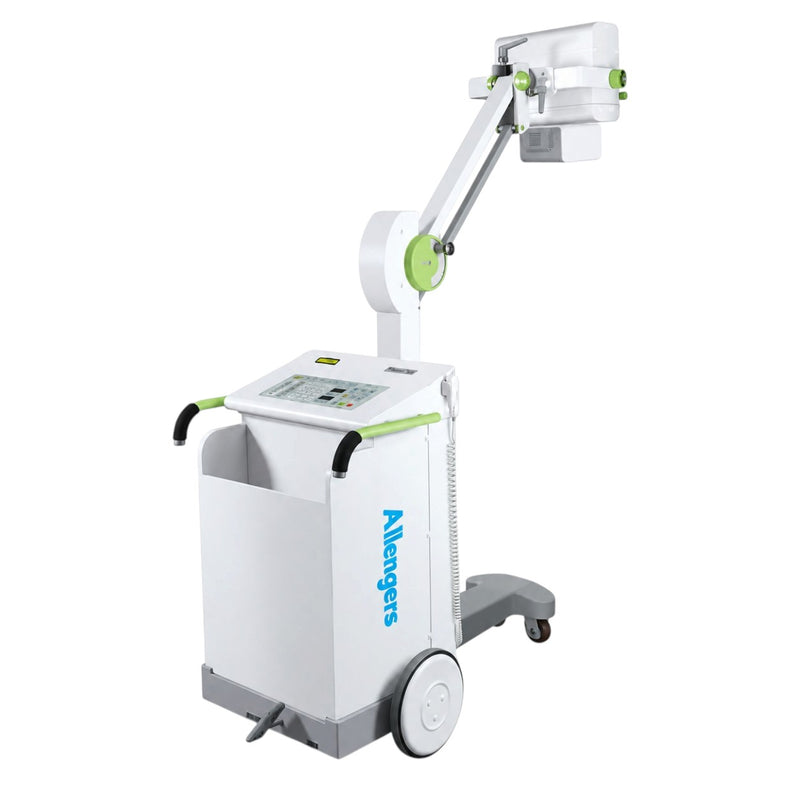

The Allengers MARS 15 Mobile X-Ray Machine (SBM) is a high-frequency mobile X-ray system designed for bedside imaging in hospitals. With a 15 kW power rating, a 40–125 kV tube voltage range, and a rotating-anode dual-focus X-ray tube, it supports mobile radiography across hospital departments.
Its Spring Balanced Mechanism (SBM) tube arm enables convenient positioning, while the microprocessor-based touchscreen control panel features 216 pre-programmed anatomical exposure settings. The system also includes Automatic Exposure Control (AEC), a manually operated collimator with a Light Beam Diaphragm (LBD), and a compact mobile design for use in clinical environments.
Key Features
-
High-Frequency Technology: Designed for mobile X-ray imaging with reduced exposure time.
-
Spring Balanced Mechanism (SBM): Spring-balanced tube arm supports convenient positioning.
-
Touchscreen Control Panel: Microprocessor-based control panel with 216 pre-programmed anatomical exposure settings.
-
Automatic Exposure Control (AEC): Adjusts exposure factors according to patient size and the body part being imaged.
-
Rotating-Anode Dual-Focus X-Ray Tube: Supports the machine’s radiographic imaging system.
-
Flexible Tube Movement: Rotatable tube arm and telescopic movement support positioning across different views.
-
Mobile Design: Suitable for movement between hospital rooms, including ICU, emergency, and trauma areas.
-
Manual Collimator with LBD: Features a manually operated collimator with a Light Beam Diaphragm.
Technical Specifications
| Specification |
Details |
| Brand |
Allengers |
| Model |
MARS 15 Mobile X-Ray Machine (SBM) |
| Product Type |
Mobile X-Ray Machine |
| X-Ray Generator |
High-frequency technology |
| Power Rating |
15 kW |
| Power Supply |
Single-phase, 230 V, 15 A, 50/60 Hz |
| X-Ray Tube |
Rotating anode, dual-focus tube |
| Tube Voltage Range |
40–125 kV |
| Tube Current |
250 mA |
| Collimator |
Manually operated with Light Beam Diaphragm (LBD) |
| Control Panel |
Microprocessor-based |
| Anatomical Presets |
216 pre-programmed settings |
| Exposure Control |
Automatic Exposure Control (AEC) |
| Tube Arm |
Spring-balanced system with rotatable arm and telescopic movement |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
