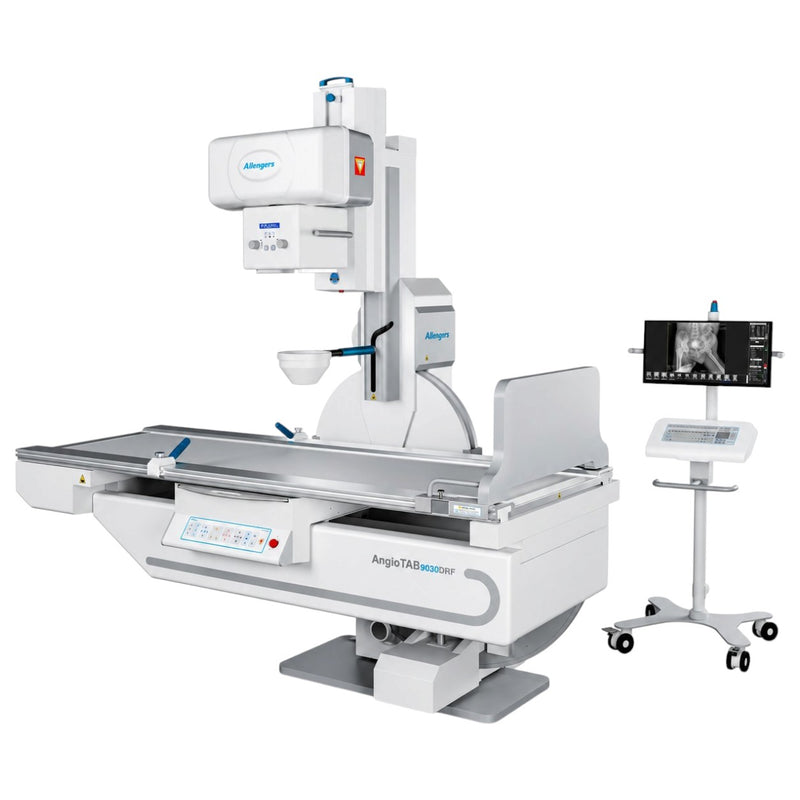

The Allengers MARS 65 Remote Controlled X-Ray Machine and Fluoroscopy Table is a digital radiography and fluoroscopy system designed to support diagnostic imaging workflows in modern medical environments. Part of the ANGIOTAB 9030 DRF series, the system features a 65 kW power rating, a 50 kHz generator frequency, and an 800 mA output.
The system includes a dynamic flat-panel detector (FPD) embedded inside the table, digital spot imaging, and remote-controlled positioning. Head-to-toe coverage with remote and table-side controls supports flexible operation during imaging procedures. Its digital workflow supports HMS, PACS, and cloud reporting, while DICOM 3.0 connectivity supports integration with compatible digital imaging systems.
Key Features
-
Dynamic FPD: Flat-panel detector embedded inside the table.
-
Remote-Controlled Operation: Provides remote access for positioning and operation.
-
Digital Spot Imaging: Supports digital spot imaging workflows.
-
Head-to-Toe Coverage: Supports coverage with remote and table-side controls.
-
Digital Workflow: Supports HMS, PACS, and cloud reporting.
-
Motorized Movements: Fully motorized movements are available, model-specific.
-
Optional DSA Package: Digital subtraction angiography package available as an option.
-
Optional Table Height Adjustment: Height adjustment is available as an option.
-
DICOM 3.0 Connectivity: Supports digital imaging connectivity.
Technical Specifications
| Specification |
Details |
| Brand |
Allengers |
| Model Name/Number |
MARS 65 |
| Product Name |
Remote Controlled X-Ray Machine and Fluoroscopy Table |
| Series |
ANGIOTAB 9030 DRF |
| Power Rating |
65 kW |
| Generator Frequency |
50 kHz |
| kV Range |
40 kVp (as provided) |
| mA Output |
800 mA |
| Detector |
Dynamic FPD embedded inside the table |
| Imaging Feature |
Digital spot |
| Coverage |
Head-to-toe coverage |
| Controls |
Remote and table-side controls |
| Digital Workflow |
HMS, PACS, and cloud reporting |
| Motorized Movements |
Fully motorized, model-specific |
| DSA Package |
Optional |
| Table Height Adjustment |
Optional |
| Connectivity |
DICOM 3.0 |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
