The Allengers MARS 80 Remote Controlled X-Ray Machine and Fluoroscopy Table is designed for hospital radiography and fluoroscopy applications. Equipped with an 80 kW high-frequency generator, a tube voltage range of 40–125 kV, and a maximum output of 1000 mA, this imaging system combines radiographic and fluoroscopic functions in one unit.
The system features a dual-focus rotating-anode X-ray tube and a motorized, remotely controlled table with a floating tabletop. Remote operation supports convenient table and tube positioning, while anatomical programs (APR) provide preset exposure settings for different body parts. A self-diagnostic system and radiation-control features are also included.
Key Features
-
80 kW High-Frequency Generator: Supports radiography and fluoroscopy imaging applications.
-

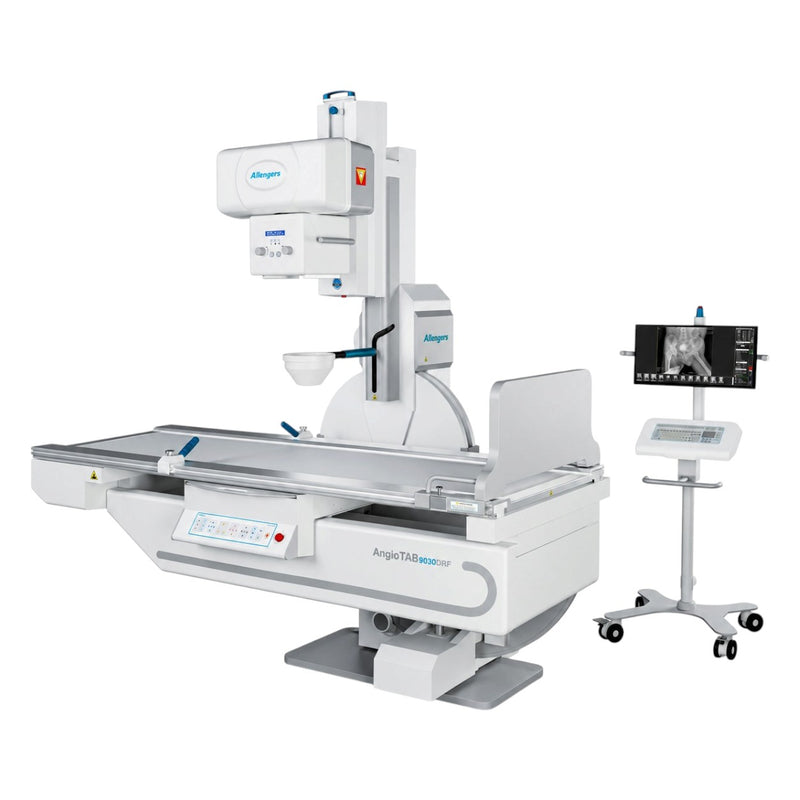

Remote-Controlled Operation: Allows table and tube positioning through remote operation.
-
Dual Radiography and Fluoroscopy Functions: Combines two imaging functions in one system.
-
Anatomical Programs (APR): Includes preset exposure settings for different body parts.
-
Self-Diagnostic System: Provides alerts about potential system issues.
-
Radiation-Control Features: Designed to support radiation control during imaging.
-
Dual-Focus Rotating-Anode X-Ray Tube: Integrated X-ray tube configuration.
-
Motorized Floating-Top Table: Supports motorized and remote-controlled operation.
-
Three-Phase Power Supply: Specified for a 400 V AC, three-phase supply.
Technical Specifications
| Specification |
Details |
| Brand |
Allengers |
| Model |
MARS 80 |
| Product Type |
Remote-Controlled X-Ray Machine and Fluoroscopy Table |
| Generator Output Power |
80 kW |
| Generator Technology |
High frequency |
| kV Range |
40–125 kV |
| Maximum Output |
1000 mA |
| X-Ray Tube |
Dual-focus rotating anode |
| Table Type |
Motorized, remote-controlled |
| Tabletop |
Floating top |
| Operation |
Remote controlled |
| Power Supply |
400 V AC, three-phase |
| Imaging Functions |
Radiography and fluoroscopy |
| Additional Features |
Anatomical programs (APR), self-diagnostic system |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
