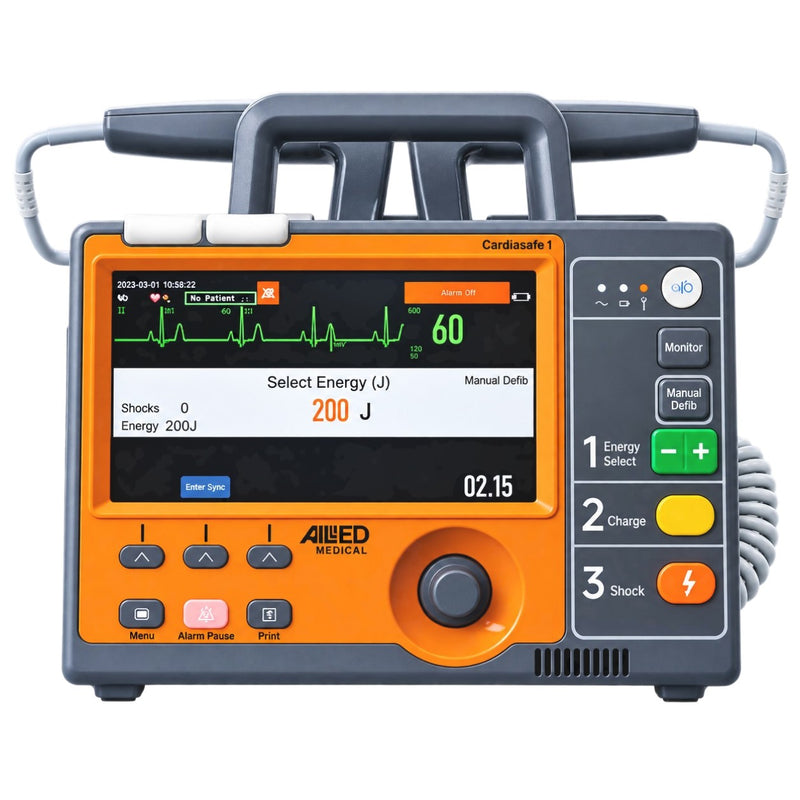

The Allied Cardiasafe-I is a portable biphasic defibrillator monitor designed for professional emergency care, critical care, and ICU applications. Developed by Allied Meditec / Allied Medical, the system combines defibrillation, ECG monitoring, optional advanced vital-sign monitoring, pacing, recording, and data-storage capabilities in a portable platform.
Depending on the configuration or variant, the Cardiasafe-I is available with different display sizes, defibrillation energy ranges, monitoring parameters, battery configurations, and optional therapeutic functions.
Key Features
- Portable biphasic defibrillator monitor
- Designed for emergency, critical-care and ICU applications
- Biphasic defibrillation waveform
-
Energy selection from 1J to 360J, depending on configuration
-
Up to 360J defibrillation energy
- Manual defibrillation
- AED mode, standard or optional depending on configuration
- Optional non-invasive transcutaneous pacing
- 7-inch TFT color display, 800 × 480 resolution
- Legacy variants with 5.7-inch blue LCD
- 3-lead and 5-lead ECG monitoring
- Adult and pediatric heart-rate monitoring
- Respiration monitoring
- Optional SpO₂
- Optional NIBP
- Optional EtCO₂
- Rechargeable lithium-ion battery
- Approximately 6 hours of monitoring on a full charge
- Over 200 shocks at 360J according to supplied specifications
- Built-in thermal array recorder/printer
- Up to 240 minutes of voice recording
- Event memory and data storage
- USB and RJ45 interfaces
- Portable design
Biphasic Defibrillation
The Allied Cardiasafe-I uses a biphasic defibrillation waveform with selectable energy depending on the particular configuration.
The supplied information identifies an energy range of approximately:
1J to 360J
Some configurations may have different maximum energy capabilities, so the exact available energy steps should be confirmed for the specific unit.
The system is designed for professional emergency cardiac-care applications where controlled electrical defibrillation may be required.
Manual Defibrillation & AED
Manual Defibrillation
The Cardiasafe-I supports manual defibrillation, allowing trained healthcare professionals to control the defibrillation process according to clinical protocols.
AED Mode
An AED mode is identified as standard or optional depending on the configuration.
The exact AED functionality and included accessories should therefore be confirmed before purchase.
Non-Invasive Pacing
An optional non-invasive transcutaneous pacing function is available on applicable configurations.
This provides an additional emergency therapy capability for situations where temporary external cardiac pacing is clinically indicated.
ECG Monitoring
The Cardiasafe-I supports:
The system provides heart-rate monitoring for adult and pediatric patients.
Heart Rate Range
The supplied specifications identify:
| Patient Type |
Heart Rate Range |
| Adult |
15–300 bpm |
| Pediatric |
15–350 bpm |
Patient Monitoring
In addition to ECG and heart rate, the Cardiasafe-I can support additional monitoring parameters depending on configuration.
Standard / Available Monitoring
- ECG
- Heart rate
- Respiration
Optional Parameters
This modular approach allows the system configuration to be adapted to different emergency and critical-care requirements.
Display
The Cardiasafe-I is supplied in different display configurations.
Current/Specified Configuration
- 7-inch TFT color display
- 800 × 480 pixel resolution
Legacy Variant
The supplied specifications also identify legacy variants equipped with a:
Therefore, the exact display should be confirmed according to the particular Cardiasafe-I model being supplied.
Battery & Power
The Cardiasafe-I uses a rechargeable battery system.
The supplied specifications identify a rechargeable lithium-ion battery providing approximately:
- 6 hours of monitoring
-
More than 200 shocks at 360J on a full charge
Actual battery performance depends on device configuration, monitoring parameters, battery condition and therapeutic usage.
Thermal Recorder & Voice Recording
The Cardiasafe-I incorporates a built-in thermal array recorder/printer for clinical documentation.
It also supports:
- Event memory
- Data storage
-
Up to 240 minutes of voice recording
The thermal recorder can be used to document relevant monitoring and emergency events.
Data Connectivity
The supplied specifications identify:
- USB interface
- RJ45 interface
- Internal event memory
- Data storage capability
These interfaces support applicable data-management and device connectivity functions.
Portable Design
The Cardiasafe-I is designed as a portable emergency-care device.
The supplied specifications include:
-
Standard dimensions: 295 × 252 × 316 mm
-
Approximate weight: 6.5 kg
-
Compact/lighter variants: approximately 4.5 kg
The exact weight depends on the model and installed configuration.
Technical Specifications
| Specification |
Allied Cardiasafe-I |
| Brand |
Allied Meditec / Allied Medical |
| Device Type |
Portable Biphasic Defibrillator Monitor |
| Application |
Emergency, Critical Care & ICU |
| Defibrillation |
Biphasic |
| Energy Range |
1–360J depending on configuration |
| Maximum Energy |
Up to 360J |
| Manual Defibrillation |
Yes |
| AED |
Standard/Optional depending on configuration |
| External Pacing |
Optional Non-Invasive Transcutaneous Pacing |
| Display |
7-inch TFT Color LCD |
| Display Resolution |
800 × 480 pixels |
| Legacy Display |
5.7-inch Blue LCD |
| ECG |
3-lead / 5-lead |
| Adult HR Range |
15–300 bpm |
| Pediatric HR Range |
15–350 bpm |
| Respiration |
Yes |
| SpO₂ |
Optional |
| NIBP |
Optional |
| EtCO₂ |
Optional |
| Battery |
Rechargeable Lithium-ion |
| Monitoring Runtime |
Approx. 6 hours |
| Shock Capacity |
Over 200 shocks at 360J |
| Recorder |
Built-in Thermal Array Recorder |
| Voice Recording |
Up to 240 minutes |
| Data Storage |
Event Memory & Internal Storage |
| Interfaces |
USB & RJ45 |
| Standard Dimensions |
Approx. 295 × 252 × 316 mm |
| Standard Weight |
Approx. 6.5 kg |
| Lightweight Variant |
Approx. 4.5 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
