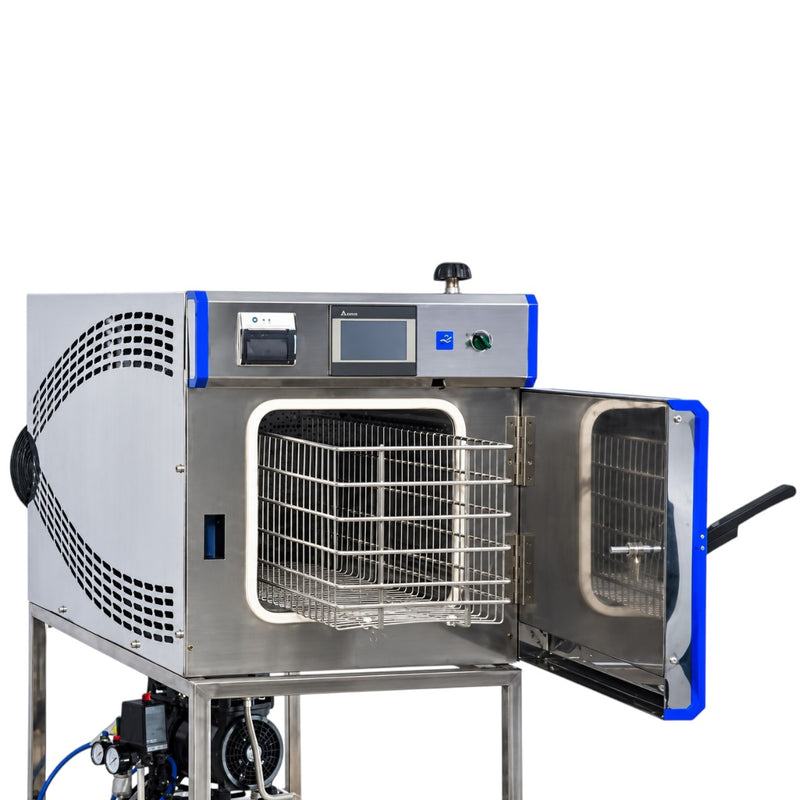

The APS ETO Sterilizer is a PLC-controlled ethylene oxide sterilization system designed for controlled low-temperature sterilization processes. The system is manufactured according to the supplied GMP norms and provides automated control of critical process parameters including temperature, moisture, vacuum and valves.
It is available in chamber capacities ranging from 56 litres to 450 litres, with six pre-programmed cycles and additional user-defined cycles. An automatic aeration cycle is provided at the end of the process for ETO exhaust.
✅ Key Features
- Manufactured as per GMP norms
- Automatic temperature control with ±3°C control specification
- Control of temperature, moisture, vacuum valves and other stated critical parameters
- PLC-based automation
- 6 pre-programmed sterilization cycles
- Additional user-defined cycles
- Automatic aeration cycle at the end of the process
- Designed to operate with universally available 100% ETO cartridges
- Live display of process phase status
- Displays current values and set values
- Live temperature, pressure and humidity display
- Current and previous reports can be printed
- External or internal printer options stated
- Heavy-duty SS 304/SS 316 chamber
- Glass wool insulation
- Password protection
PLC-Based Automation
The APS ETO Sterilizer uses PLC-based automation for controlling the sterilization process.
The supplied specification includes:
- 6 pre-programmed cycles
- Additional user-defined cycles
- Automatic control of temperature
- Moisture control
- Vacuum-valve control
- Other stated critical process parameters
- Automatic aeration at the end of the process
This provides automated management of the programmed ETO sterilization cycle.
Live Process Display
The system provides a live display of sterilization-process information.
The supplied specification states that the display can show:
- Current phase/status
- Current values
- Set values
- Temperature
- Pressure
- Humidity
This allows operators to monitor the stated process parameters during operation.
Automatic Aeration
An automatic aeration cycle is provided at the end of the process for ETO exhaust.
This is an integrated part of the automated cycle described in the supplied specifications.
ETO Cartridge Operation
The sterilizer is designed to operate using a universally available 100% ETO cartridge.
A specific safety mechanism is provided whereby the ETO cartridge is punctured only under negative-pressure and humidity conditions, according to the supplied specification.
Chamber Construction & Insulation
The chamber is fabricated using heavy-duty stainless steel:
Glass wool insulation is provided as part of the chamber construction.
Password Protection
Password protection is incorporated to help prevent unauthorized access to the sterilizer's controls.
Reporting & Printing
The APS ETO Sterilizer supports process-report printing.
- Current reports can be printed
- Previous reports can be printed
- External printer can be used
- Internal printer option is available
Model & Technical Specifications
| Model |
Volume |
Internal Dimension |
| AP-ETO-56 |
56 L |
12 × 12 × 24 in |
| AP-ETO-85 |
85 L |
12 × 12 × 36 in |
| AP-ETO-110 |
110 L |
12 × 12 × 48 in |
| AP-ETO-190 |
190 L |
18 × 18 × 36 in |
| AP-ETO-256 |
256 L |
18 × 18 × 48 in |
| AP-ETO-450 |
450 L |
24 × 24 × 48 in |
General Specifications
| Specification |
Details |
| Product Type |
ETO Sterilizer |
| Sterilization Agent |
100% ETO cartridge |
| Manufacturing Standard |
GMP norms, as supplied |
| Automation |
PLC based |
| Pre-Programmed Cycles |
6 |
| User-Defined Cycles |
Available |
| Temperature Control |
Automatic, ±3°C |
| Process Parameters |
Temperature, moisture, vacuum valves and stated critical parameters |
| Aeration |
Automatic at end of process |
| Display |
Phase status, current/set values, temperature, pressure and humidity |
| Reporting |
Current and previous reports |
| Printing |
External printer / internal printer |
| Chamber Material |
Heavy-duty SS 304 / SS 316 |
| Insulation |
Glass wool |
| Access Protection |
Password protection |
| Cartridge Safety |
Puncturing under specified negative-pressure and humidity conditions |
