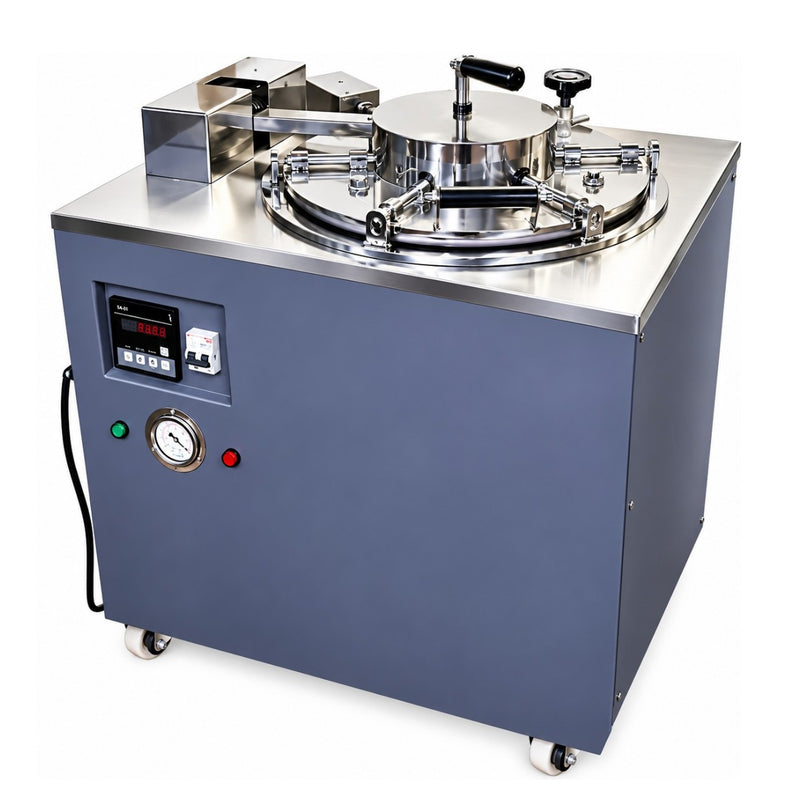

The APS Single Lever Lock Autoclave is a microprocessor-controlled steam sterilization system designed for sterilization requirements in bacteriological and research laboratories, hospitals, clinics, and food and beverage units.
Available in chamber volumes from 20 to 150 litres, the Single Lever Lock series is designed to maximize chamber space utilization. It features a single-lever locking door, double-wall construction, digital temperature indication, immersion-type heating, water-level indication, and multiple safety systems.
Selected models are available with capacities from 40 to 150 litres, with optional configurations and documentation such as IQ/OQ/PQ, temperature chart recording, dot-matrix printing, and USB data transfer.
✅ Key Features
- Chamber/tank volume range: 20–150 litres
- Microprocessor control system
-
Single Lever Lock door mechanism
- Double-wall construction
- SS GMP construction
- Jointless silicon rubber gasket
- Immersion-type heater
- Digital temperature indicator
- Digital timer: 0–99 minutes
- Water-level indicator
- Low-water detection
- Pressure interlock
- Safety valve
- Manual water filling and removal
- Easy operation and low maintenance
- Optional drums
- Optional IQ/OQ/PQ documentation
- Optional temperature chart recorder
- Optional dot-matrix printer
- Optional USB interface for data transfer
- Working pressure: 1.2 kgf/cm² (15–17 psi)
- Working pressure upgradeable up to 30 psi
- Sterilization temperature: 121–134°C
- Optional temperature up to 150°C
- Sterilization time: 25–30 minutes
Single Lever Lock Door
The autoclave uses a single-lever locking system for securing the chamber door. The supplied specification describes the door as a spring-press lifting door with a safety and single-lever locking device.
The door safety system is complemented by a pressure interlock, safety valve and low-water detector.
Microprocessor Control
A microprocessor control system is provided for operation of the autoclave. The system includes a digital temperature indicator and programmable digital timer ranging from 0 to 99 minutes.
Double-Wall GMP Construction
The autoclave uses double-wall construction with stainless-steel GMP construction. The outer chamber is specified as 304 stainless steel, while the inner chamber is specified as 304 SS, with 316/316L stainless steel available as an optional grade.
Air insulation is specified between the chamber walls.
Heating System
The APS Single Lever Lock Autoclave uses an immersion-type heater. The supplied model specifications list electrical loads ranging from 3.00 kW to 9.00 kW, depending on chamber capacity.
Sterilization Temperature & Pressure
The standard sterilizing temperature range is:
121°C to 134°C
An optional temperature specification of 150°C is also provided.
The working pressure is specified as:
1.2 kgf/cm² (15–17 psi)
The system can be upgraded for operation up to 30 psi, according to the supplied specification.
Water-Level Monitoring & Safety
The system includes:
- Water-level indicator
- Low-water detector
- Safety valve
- Pressure interlock
- Single-lever locking mechanism
These features are intended to support controlled operation and prevent operation under specified unsafe conditions.
Data Recording & Connectivity Options
Several optional features are available:
- IQ/OQ/PQ documentation
- Temperature chart recorder
- Dot-matrix printer provision
- USB interface for data transfer
These options can be useful where sterilization records and documentation are required.
Available Models & Specifications
| Parameter |
40 L |
50 L |
85 L |
100 L |
150 L |
| Internal Tank Capacity |
40 L |
50 L |
85 L |
100 L |
150 L |
| Load |
3.00 kW |
3.00 kW |
4.00 kW |
6.00 kW |
9.00 kW |
| Chamber Dimension |
12" × 20" |
14" × 22" |
16" × 24" |
18" × 24" |
18" × 30" |
Series Capacity
The supplied product information states that standard APS Single Lever Lock models are available from 20 L to 150 L. The detailed electrical and chamber-dimension table supplied here covers 40 L, 50 L, 85 L, 100 L and 150 L models.
Detailed Technical Specifications
| Specification |
Technical Details |
| Product Name |
APS Single Lever Lock Autoclave |
| Control System |
Microprocessor Control |
| Tank Volume Range |
20–150 L |
| Working Pressure |
1.2 kgf/cm² (15–17 psi) |
| Pressure Upgrade |
Up to 30 psi |
| Sterilizing Temperature |
121–134°C |
| Optional Temperature |
150°C |
| Heat Average |
≤±1°C |
| Sterilization Time |
25–30 minutes |
| Digital Timer |
0–99 minutes |
| Construction |
Double Wall & SS GMP Construction |
| Outer Chamber |
304 Stainless Steel |
| Inner Chamber |
304 SS |
| Optional Inner Chamber |
316 / 316L Stainless Steel |
| Insulation |
Air Insulation |
| Gasket |
Jointless Silicon Rubber |
| Heater |
Immersion Type |
| Waste Container |
Stainless Steel |
| Door/Lid |
Spring-Press Lifting Door |
| Door Locking |
Single Lever Lock |
| Water Filling |
Manual |
| Water Removal |
Manual |
| Water-Level Monitoring |
Water-Level Indicator |
| Safety Features |
Safety Valve, Low-Water Detector, Pressure Interlock, Single Lever Lock |
| Power Supply |
220V / 440V |
| Drums |
Available at Extra Cost |
| IQ/OQ/PQ Documentation |
Optional |
| Temperature Chart Recorder |
Optional |
| Dot-Matrix Printer Provision |
Optional |
| USB Data Transfer |
Optional |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
