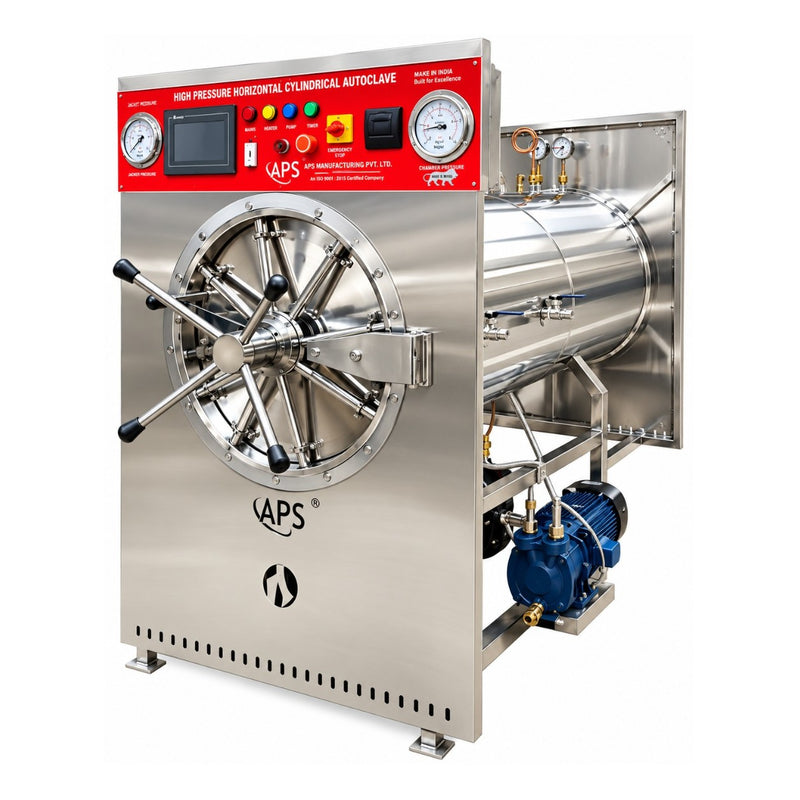

The APS Steam Sterilizer Horizontal Cylindrical is a heavy-duty horizontal steam sterilization system designed for bulk sterilization applications in hospitals, laboratories and other institutional facilities. It is available in multiple chamber capacities from 75 litres to 350 litres, with heater loads ranging from 6 kW to 18 kW.
The sterilizer incorporates a chamber condensate line with steam trap, SS bottom plate, validation port, water-level gauge and replaceable heaters. The standard operating configuration uses steam pressure of 1.2 kg/cm² (15–18 psi) at 121°C, with an operating pressure range of 10–20 psi.
Standard models can also be configured with PID-based or PLC-based fully automatic control systems, including touchscreen HMI, data logging, validation programs, digital pressure monitoring and automatic water feeding options.
✅ Key Features
- Horizontal cylindrical steam sterilizer
- Available from 75L to 350L
- Validation port provided
- Chamber condensate line with steam trap
- Steam trap designed to support effective condensation and temperature control
- Plug screen to help prevent line choking due to sediment discharge
- SS bottom plate keeps the sterilization load away from condensate
- Water-level indicator glass gauge
- Easily replaceable heaters
- Chamber and jacket constructed from 14 SWG material
- Hydraulic testing at 40 psi
- Testing stated as 2.5 times the operating pressure
- Small models operate on 230V single-phase
- Large models operate on 440V three-phase
- Optional fully automatic PID control
- Optional fully automatic PLC control with touchscreen HMI
- Optional factory-set sterilization programs
- Optional data logging
- Optional validation test program
- Optional digital chamber pressure gauge with electronic transducer
- Optional automatic water feed system
- Optional water immersion vacuum pump
- Optional auto water feeding pump
Chamber Condensate Management
The chamber condensate line is incorporated with a steam trap to support effective condensate removal and temperature control during the sterilization process.
A plug screen is also provided to help prevent choking of the line due to sediment discharge.
The chamber incorporates an SS bottom plate so that the sterilization load does not come directly into contact with condensate.
Validation Port
A dedicated validation port is provided for sterilization validation activities and related testing procedures.
The exact validation instruments, ports, accessories and validation protocol should be confirmed according to the selected model and installation configuration.
Water Level & Heating System
The autoclave is equipped with a water-level indicator glass gauge for monitoring water level in the steam generation system.
The heaters are designed to be easily replaceable, supporting maintenance of the heating system.
The supplied specification states that the chamber and jacket are constructed from 14 SWG material.
Pressure & Temperature
The specified working condition is:
-
Working Pressure: 1.2 kg/cm²
-
Equivalent Pressure: 15–18 psi
-
Temperature: 121°C
-
Operating Pressure Range: 10–20 psi
The unit is also hydraulically tested at 40 psi, stated by the manufacturer as 2.5 times the operating pressure of the autoclave.
Electrical Configuration
Electrical supply depends on the size of the autoclave:
-
Small-size models: 230V single phase
-
Large-size models: 440V three phase
The exact electrical requirement should be confirmed for the selected model because heater load varies from 6 kW to 18 kW.
Model & Technical Specifications
| Model |
Inner Dimension (mm) |
Capacity |
Heater Load |
| APS-SSHC-75 |
400 × 600 |
75 L |
6 kW |
| APS-SSHC-100 |
450 × 600 |
100 L |
6 kW |
| APS-SSHC-125 |
400 × 900 |
125 L |
6 kW |
| APS-SSHC-150 |
450 × 900 |
150 L |
12 kW |
| APS-SSHC-200 |
450 × 1200 |
200 L |
12 kW |
| APS-SSHC-250 |
500 × 1200 |
250 L |
12 kW |
| APS-SSHC-350 |
600 × 1200 |
350 L |
18 kW |
General Specifications
| Specification |
Details |
| Product Type |
Horizontal Steam Sterilizer |
| Design |
Cylindrical |
| Capacity Range |
75–350 L |
| Chamber |
14 SWG |
| Jacket |
14 SWG |
| Working Temperature |
121°C |
| Working Pressure |
1.2 kg/cm² |
| Working Pressure Equivalent |
15–18 psi |
| Operating Pressure Range |
10–20 psi |
| Hydraulic Test Pressure |
40 psi |
| Validation Port |
Provided |
| Condensate System |
Chamber condensate line with steam trap |
| Sediment Protection |
Plug screen |
| Chamber Bottom |
SS bottom plate |
| Water Monitoring |
Glass water-level gauge |
| Heaters |
Replaceable |
| Small Electrical Supply |
230V single phase |
| Large Electrical Supply |
440V three phase |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
