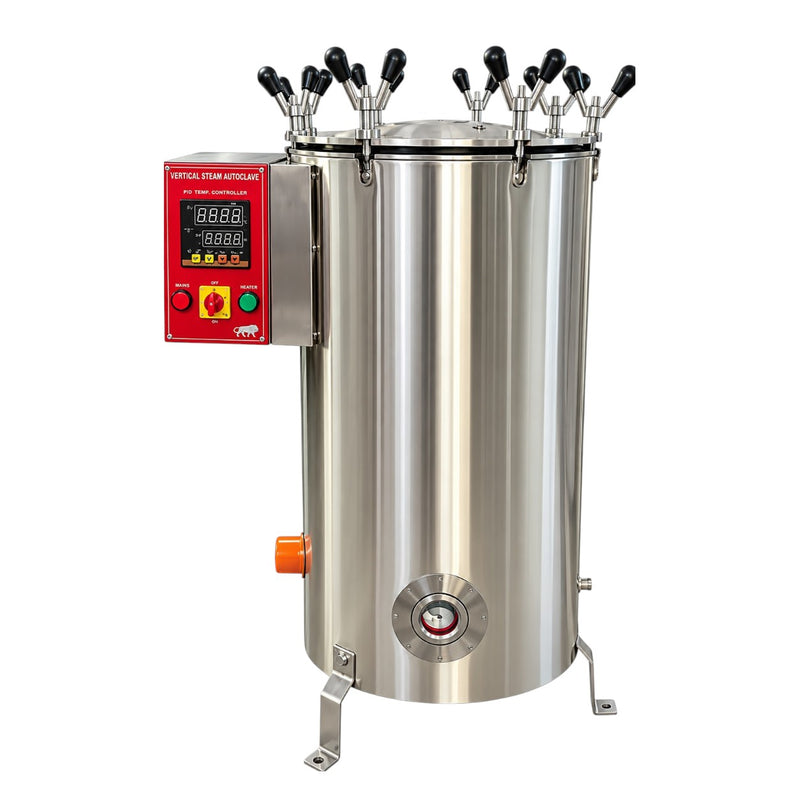

The APS Vertical Autoclave Wing Nut Locking Triple Wall is a professional vertical steam sterilizer available in 40-litre and 80-litre capacities. It features triple-wall and SS GMP construction, an immersion-type heater, wing-nut locking with pedal lift, digital temperature control and a jointless silicone rubber gasket.
The autoclave is specified for sterilization at 121°C to 134°C, with 150°C available as an optional configuration. It provides a working pressure of 1.2 kgf/cm² (15–17 psi), with a digital timer, water-level indicator and low-water safety protection.
Optional features include IQ/OQ/PQ documentation, dot-matrix printer provision, temperature chart recording and USB data transfer.
✅ Key Features
- Vertical triple-wall autoclave
- Available in 40L and 80L capacities
- Immersion-type heater
- Triple-wall & SS GMP construction
- Wing-nut locking with pedal lift
- Jointless silicone rubber gasket
- Water-level indicator
- Digital temperature controller
- Sterilizing temperature 121°C–134°C
- 150°C optional
- Heat average ≤ ±1°C
- Digital timer 0–99 minutes
- Sterilization time 25–30 minutes
- Working pressure 1.2 kgf/cm² (15–17 psi)
- Safety valve
- Low-water detector and cut-off
- Air insulation
- SS 304 outer chamber
- SS 304 inner chamber
- Optional SS 316/316L inner chamber
- Optional IQ/OQ/PQ documentation
- Optional dot-matrix printer provision
- Optional temperature chart recorder
- Optional USB data-transfer interface
- Sterilization drums available at additional cost
- NABL standards compliance stated in the supplied specification
Triple-Wall Construction
The APS autoclave uses triple-wall construction with SS GMP construction.
The supplied specification identifies:
-
Outer chamber: SS 304
-
Inner chamber: SS 304
-
Optional inner chamber: SS 316 / SS 316L
-
Insulation: Air insulation
The triple-wall configuration provides the specified multi-layer construction for the vertical sterilizer.
Wing-Nut Locking With Pedal Lift
The autoclave uses a wing-nut locking system with pedal lift.
The wing-nut locking mechanism secures the sterilizer, while the pedal-lift arrangement assists with lid handling.
A jointless silicone rubber gasket is provided for sealing.
Immersion-Type Heater
The unit is equipped with an immersion-type heater.
| Model |
Heater Load |
| APS 40L |
2.00 kW |
| APS 80L |
4.00 kW |
Digital Temperature Control
A digital temperature controller is provided.
The specified sterilizing temperature is:
121°C to 134°C
An optional temperature of 150°C is also available.
The specified heat average is:
≤ ±1°C
Digital Timer
The autoclave includes a 0–99 minute digital timer.
The specified sterilization time is 25–30 minutes.
Safety Features
The supplied specifications list:
- Safety valve
- Low-water detector
- Low-water cut-off
- Water-level indicator
Working Pressure
The specified working pressure is:
1.2 kgf/cm² (15–17 psi)
Optional Features
IQ/OQ/PQ Documentation
IQ/OQ/PQ documentation is available as an optional feature for facilities requiring installation, operational and performance qualification documentation.
Dot-Matrix Printer
The unit has a provision to attach a dot-matrix printer as an optional feature.
Temperature Chart Recorder
A temperature chart recorder is available as an optional feature for recording temperature information.
USB Data Transfer
An optional USB interface is available for data transfer.
Sterilization Drums
The autoclave can be supplied with sterilization drums at additional cost.
Model & Technical Specifications
| Specification |
40 Liter |
80 Liter |
| Internal Tank Capacity |
40 L |
80 L |
| Heater Load |
2.00 kW |
4.00 kW |
| Chamber Dimension |
300 × 550 mm |
400 × 600 mm |
| Working Pressure |
1.2 kgf/cm² (15–17 psi) |
Same specification supplied |
| Sterilizing Temperature |
121–134°C |
Same specification supplied |
| Optional Temperature |
150°C |
150°C |
| Heat Average |
≤ ±1°C |
≤ ±1°C |
| Sterilization Time |
25–30 min |
25–30 min |
| Digital Timer |
0–99 min |
0–99 min |
| Construction |
Triple wall & SS GMP |
Triple wall & SS GMP |
| Outer Chamber |
SS 304 |
SS 304 |
| Inner Chamber |
SS 304 |
SS 304 |
| Optional Inner Chamber |
SS 316 / SS 316L |
SS 316 / SS 316L |
| Insulation |
Air insulation |
Air insulation |
| Water Filling & Removal |
Manual |
Manual |
| Safety Features |
Safety valve, low-water detector & cut-off |
Same specification supplied |
| Power Supply |
220V / 440V |
220V / 440V |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
