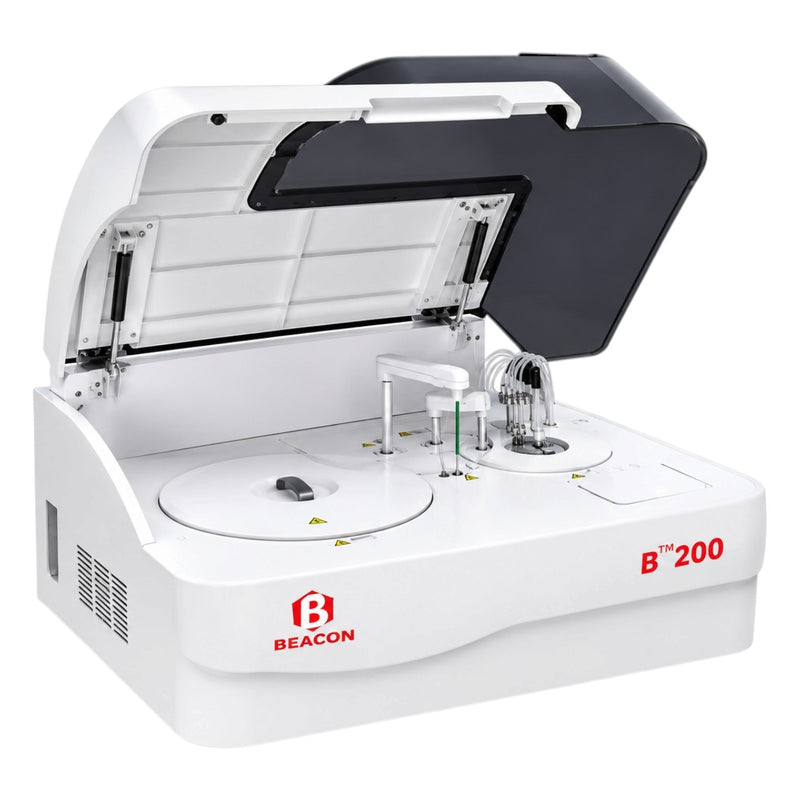

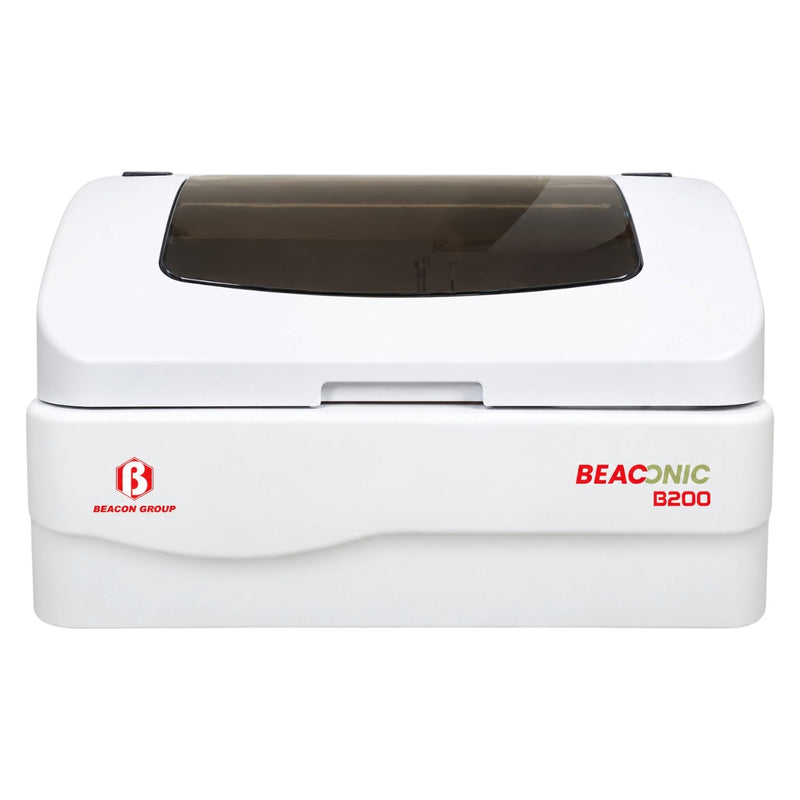

The Beacon Beaconic B200 is a fully automatic, random-access biochemistry analyzer designed for medium to large laboratories. It performs a wide range of biochemical tests on serum, plasma, urine, and other liquid samples. The system reduces manual work, gives fast and accurate results, and offers stable performance with low operating cost.
Key Highlights
-
Fully automatic random-access operation
-
Up to 200 tests per hour
-
Low minimum sample volume helps reduce sample wastage
-
Automatic cuvette washing
-
Probe with liquid-level detection and collision protection
-
Supports end point, kinetic, fixed-time, and turbidimetric methods
-
Compact footprint suitable for mid-high workload labs
-
Stable performance with minimal maintenance
-
Easy software operation suitable for all skill levels
Test Menu
-
Liver Function Tests (SGOT, SGPT, ALP, Bilirubin, etc.)
-
Kidney Function Tests (Urea, Creatinine, Uric Acid)
-
Lipid Profile (Cholesterol, HDL-C, LDL-C, Triglycerides)
-
Cardiac Profile tests
-
Electrolyte tests (if reagents available)
-
Enzyme assays
-
Protein tests
-
Glucose tests
-
Calcium, Magnesium, Phosphorus
-
CRP, ASO, RF
-
Many other routine and special chemistry assays
Technical Specifications
| Specification |
Details |
| Machine Type |
Random access |
| Test Speed |
Constant 200 tests/hour (mono reagent or double reagent) |
| Test Principle |
Colorimetric method, turbidimetry |
| Test Methods |
1-point end, 2-point end, fixed-time, kinetics |
| Calibrator Type |
Linear & nonlinear |
| Reagent Tray |
40 reagent positions (40 for R1 & R2) |
| Cooling System |
Non-stop cooling with internal Peltier pad (24 hours, 8°C–14°C) |
| Reagent Volume |
10–300 µL (1 µL step) |
| Reaction Tray |
44 single reaction Pyrex cuvettes with perfect transmittance |
| Reaction Volume |
150–330 µL |
| Reaction Temperature |
Solid-state heating, 37°C ± 0.1°C |
| Sample Tray Capacity |
40 sample positions |
| Compatible Sample Types |
Micro cup, primary tube, blood collection tube (Ø 12–13 mm × 25–100 mm) |
| Sample Volume |
2–30 µL (0.1 µL step) |
| Sample Probe Features |
Liquid surface detection, real-time volume tracking, vertical collision protection |
| Mixer Type |
Paddle-type mixer |
| Benefits |
Effective mixing, reduced carryover |
| Light Source |
Halogen lamp |
| Wavelengths |
340, 405, 450, 505, 546, 578, 630, 700 nm (with 4 additional optional wavelengths) |
| Operating System |
Windows 10 |
| Report Printing |
6 selectable formats + custom format support |
| Interface |
Pattern interface, TCP/IP network interface |
| Water Consumption |
Maximum 8 L/hour |
| Dimensions |
78 cm × 56.5 cm × 112 cm |
| Weight |
80 kg |
| Power Supply |
220V ± 10%, 50/60 Hz, 1000 VA |
| UPS Requirement |
Online UPS (230V) with 2 KVA isolated transformer |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
