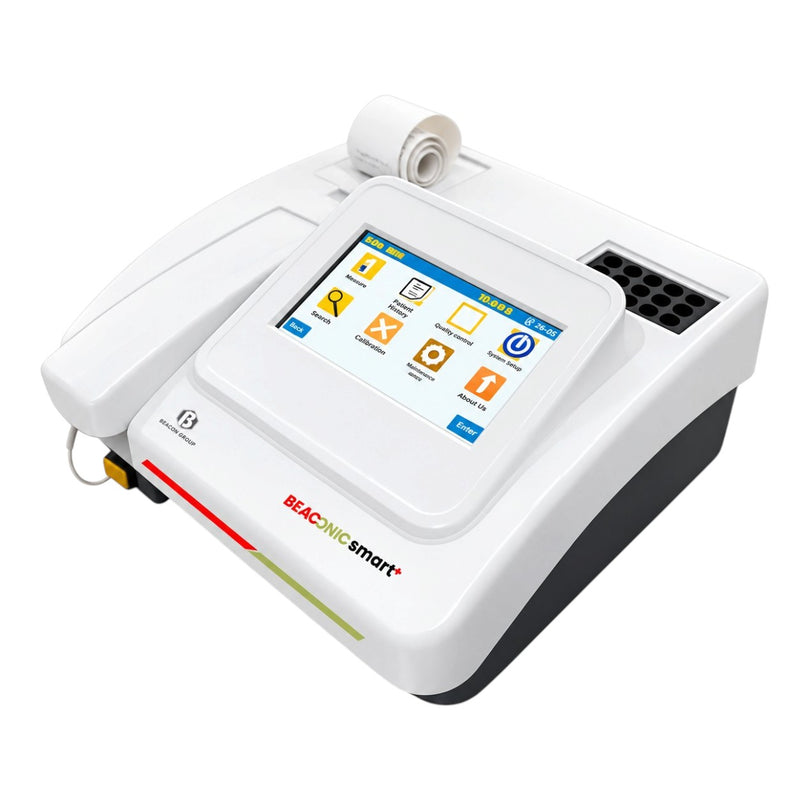

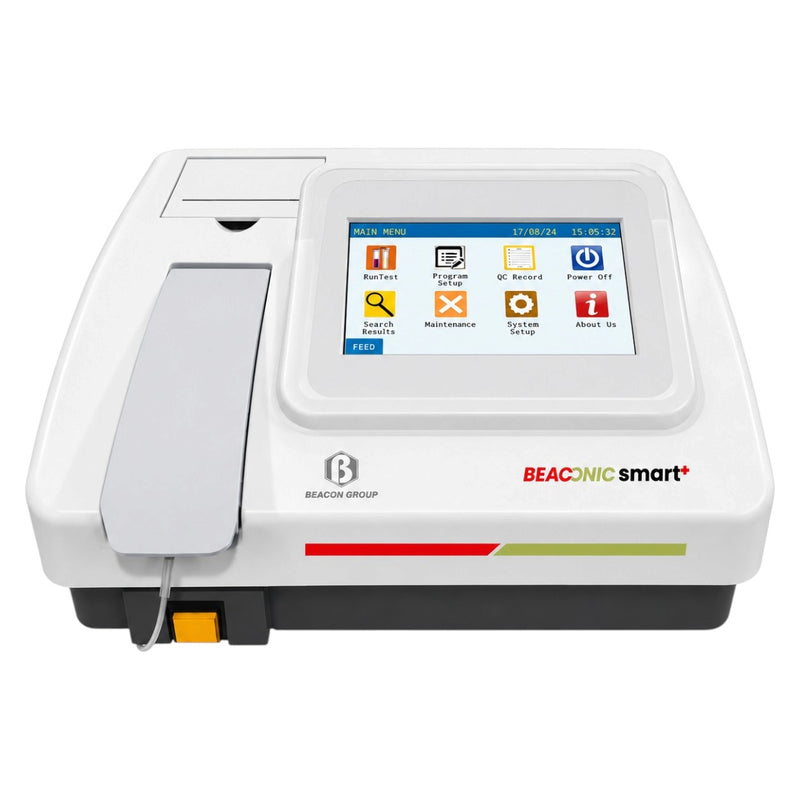

The Beacon Group BEACONIC smart+ Semi Automatic Biochemistry Analyzer is a compact laboratory analyzer designed for routine biochemical testing. It offers 9 assay modes, including coagulation, and supports 7 calibration types for different testing requirements. With a 7-inch colour touchscreen, built-in thermal printer, 15 incubation positions and storage for up to 25,000 results, it supports efficient laboratory operations and result management.
The analyzer uses a 12 V, 20 W quartz halogen lamp and supports monochromatic and bichromatic measurement methods. Its Peltier-controlled flowcell maintains a temperature of 37°C. Daily and monthly quality-control functions for three levels, along with Levey-Jennings (LJ) plots, support laboratory quality monitoring.
Key Features of Beacon Beaconic Smart+
-
Semi-automated chemistry analyzer for routine biochemical testing
-
9 assay modes, including coagulation
-
7 calibration types
-
7 optical filters with 1 free position
-
7-inch colour touchscreen
-
Built-in thermal printer
-
15 built-in incubation positions
-
Monochromatic and bichromatic measurement methods
-
Storage capacity of up to 25,000 results
-
Daily and monthly quality control for 3 levels
-
Levey-Jennings (LJ) plot support
-
Peltier-controlled flowcell temperature
-
120 programmable tests
Hospital and Laboratory Benefits
-
Supports routine biochemical testing in clinical laboratories
-
Multiple assay modes provide flexibility for different test requirements
-
Built-in incubation positions support sample processing
-
Touchscreen operation provides an accessible interface for laboratory staff
-
Built-in thermal printer supports convenient result reporting
-
Large storage capacity helps maintain previous test records
-
Quality-control functions support regular laboratory quality monitoring
-
Monochromatic and bichromatic measurement methods provide flexibility in analysis
Technical Specifications
| Parameter |
Specification |
| Brand |
Beacon Group |
| Model |
BEACONIC smart+ |
| Product Type |
Semi Auto Chemistry Analyzer |
| Assay Modes Include |
End Point, Rate, Fixed Time, Two Point Non-Linear, Sample Blank, Multi-Standard, Sample Blank Non-Linear, Coagulation and Absorbance |
| Calibration Types Listed |
Factor, Linear and Multi Point Non-Linear methods, including Point to Point, Cubic Spline and Logit Log |
| Programmable Tests |
120 |
| Light Source |
12 V, 20 W Quartz Halogen Lamp |
| Measurement Methods |
Monochromatic and Bichromatic |
| Wavelengths |
340, 405, 505, 546, 578, 620 and 670 nm |
| Filter Wheel |
7 filters + 1 free position |
| Display |
7-inch colour touchscreen |
| Printer |
Built-in thermal printer |
| Memory |
FLASH |
| Storage |
25,000 results |
| Result Reports |
Collated by ID, date and test |
| Quality Control |
Daily and monthly for 3 levels with LJ Plot |
| Aspiration Volume |
200–1500 µL |
| Flowcell Temperature |
37°C |
| Temperature Control |
Peltier |
| Operating Voltage |
220–240 V, 60 Hz |
| Operating Temperature |
10–35°C |
| Incubation Positions |
15 built-in positions |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
