Product Description

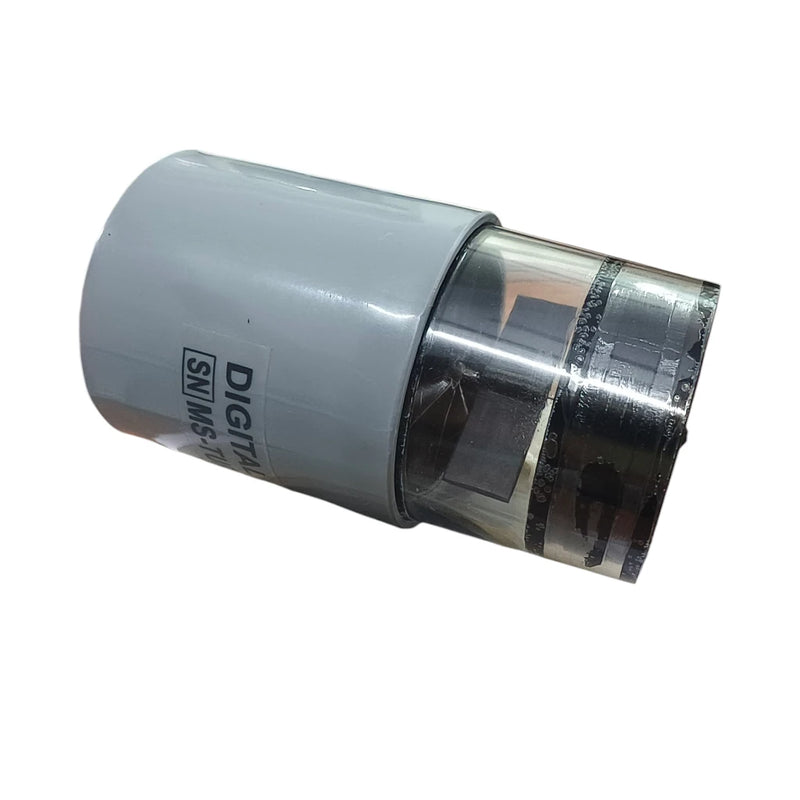

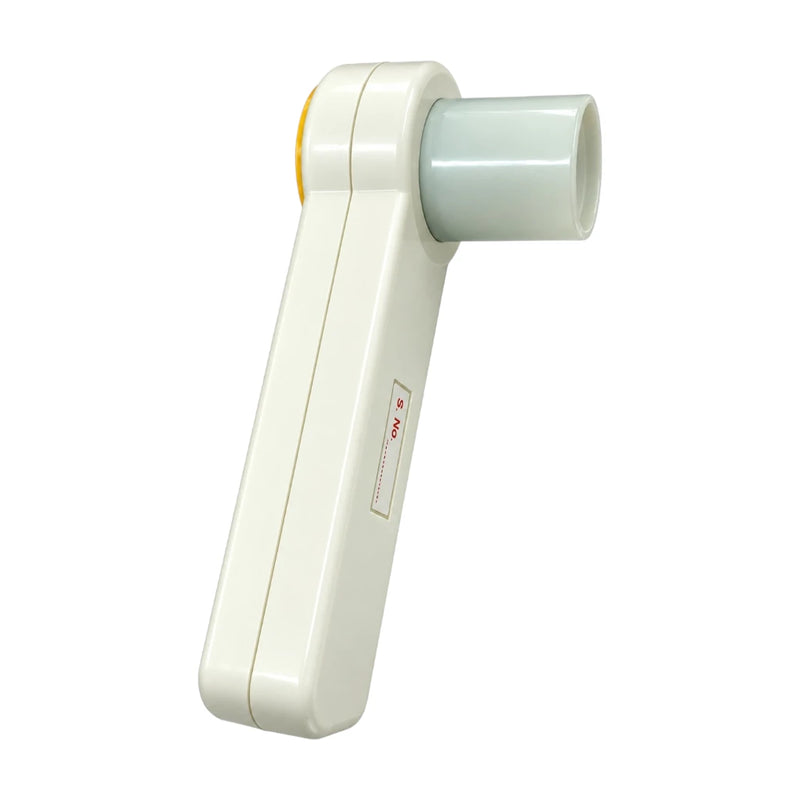

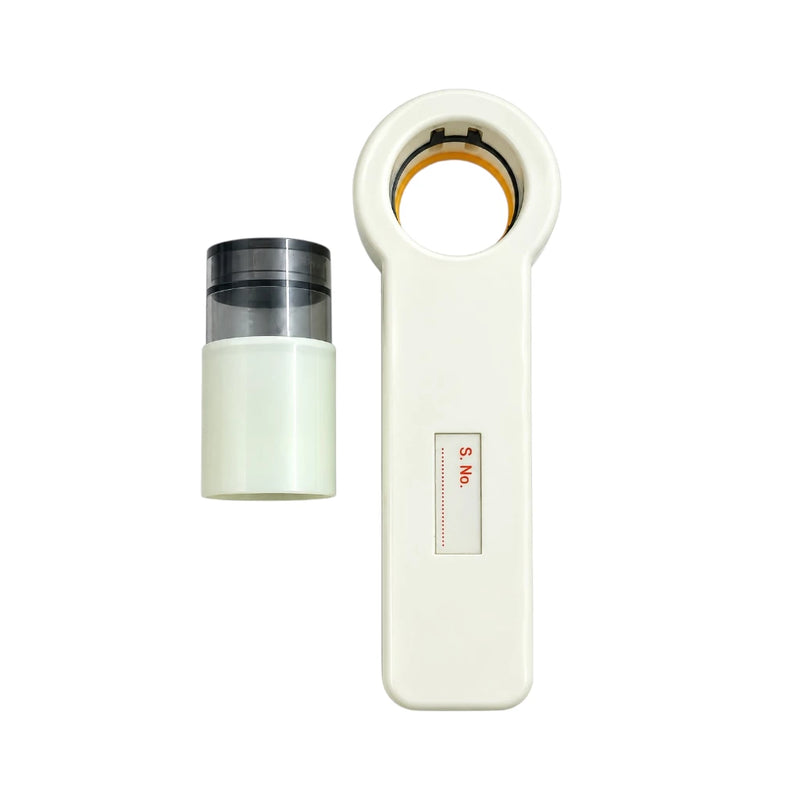

The Bi-Directional Digital Turbine for Medicaid Spiro Excel & Spiromax PFT Machines is a precision flow-sensing component designed specifically for compatible Medicaid pulmonary function testing (PFT) and spirometry systems.
This Medicaid PFT machine turbine measures airflow in both inhalation and exhalation directions. As the patient breathes through the turbine, the internal rotor blades rotate according to the airflow. An optoelectronic/infrared sensing system detects the blade rotation and converts it into digital flow information for the connected PFT system.
The Spiroexcel turbine and Spiromax turbine are designed for accurate and reliable flow measurement used in pulmonary function tests such as FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Ventilation).
Its low-resistance design helps minimize the effect of the flow sensor on patient breathing, while the reusable construction supports repeated use when appropriate cleaning and disinfection procedures are followed.
Compatibility: Specifically designed for compatible Medicaid Spiro Excel and Spiromax PFT machines.
Key Features
-
Bi-Directional Digital Turbine: Measures airflow during both inhalation and exhalation.
-
High-Precision Flow Measurement: Converts turbine rotor movement into digital airflow signals.
-
Compatible with Medicaid PFT Machines: Designed for Medicaid Spiro Excel and Spiromax systems.
-
Low-Resistance Design: Helps minimize airflow resistance during pulmonary function testing.
-
Suitable for FVC, SVC & MVV: Provides flow data required for common spirometry and PFT measurements.
-
Reusable Design: Can be cleaned and disinfected for repeated use according to applicable instructions.
-
Optoelectronic/Infrared Detection: Detects the rotation of the turbine blades electronically.
-
Wide Flow Range: Measures airflow from 0.03 to 20 L/s.
-
Accurate Volume Calculation: Volume is determined through flow integration.
-
Adult & Pediatric Applications: Suitable for compatible PFT systems used for adult and pediatric testing.
-
Reliable Mechanical Principle: Rotor speed corresponds to airflow passing through the turbine.
-
Filter-Compatible Design: Optimized to maintain low resistance when used with appropriate bacterial/viral filters.
Technical Specifications
| Specification |
Details |
| Product Type |
Bi-Directional Digital Turbine |
| Application |
Pulmonary Function Testing / Spirometry |
| Flow Measurement |
Bi-directional digital turbine |
| Volume Measurement |
Flow Integration |
| Flow Range |
0.03–20 L/s |
| Volume Range |
0–12 Litres (BTPS) |
| Flow Accuracy |
±2% |
| Volume Accuracy |
±2% |
| Flow Direction |
Inhalation & Exhalation |
| Sensing Technology |
Optoelectronic / Infrared sensing |
| Operating Principle |
Mechanical rotor rotation proportional to airflow |
| Design |
Reusable mechanical turbine |
| Resistance |
Low-resistance airflow design |
| Compatible PFT System |
Medicaid Spiro Excel |
| Compatible PFT System |
Medicaid Spiromax |
| Primary Applications |
FVC, SVC, MVV and other compatible PFT tests |
| Volume Reference |
BTPS |
Package Contents
- 1 × Bi-Directional Digital Turbine
- Protective packaging
