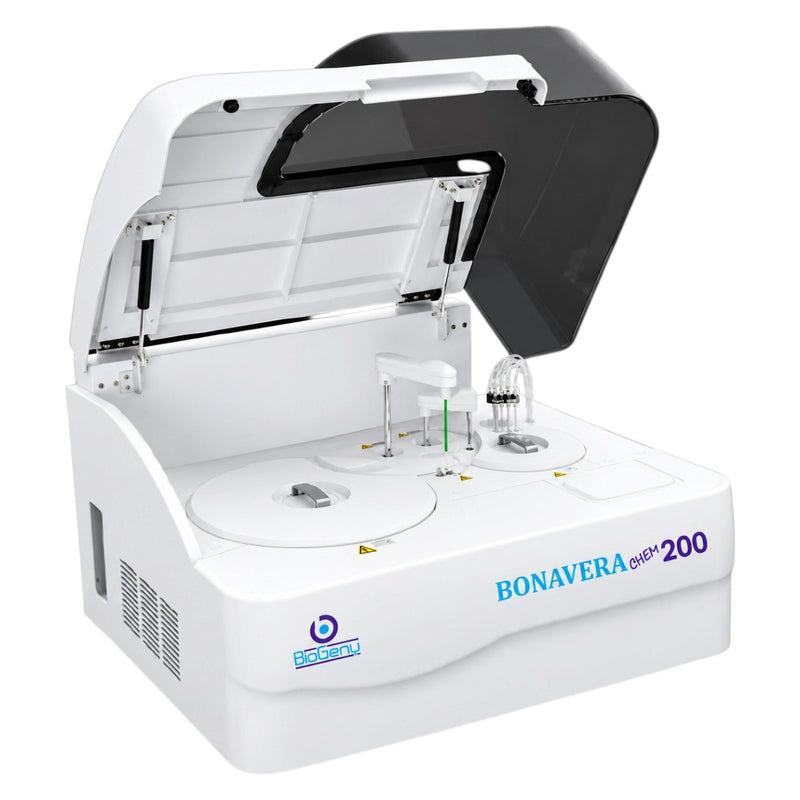

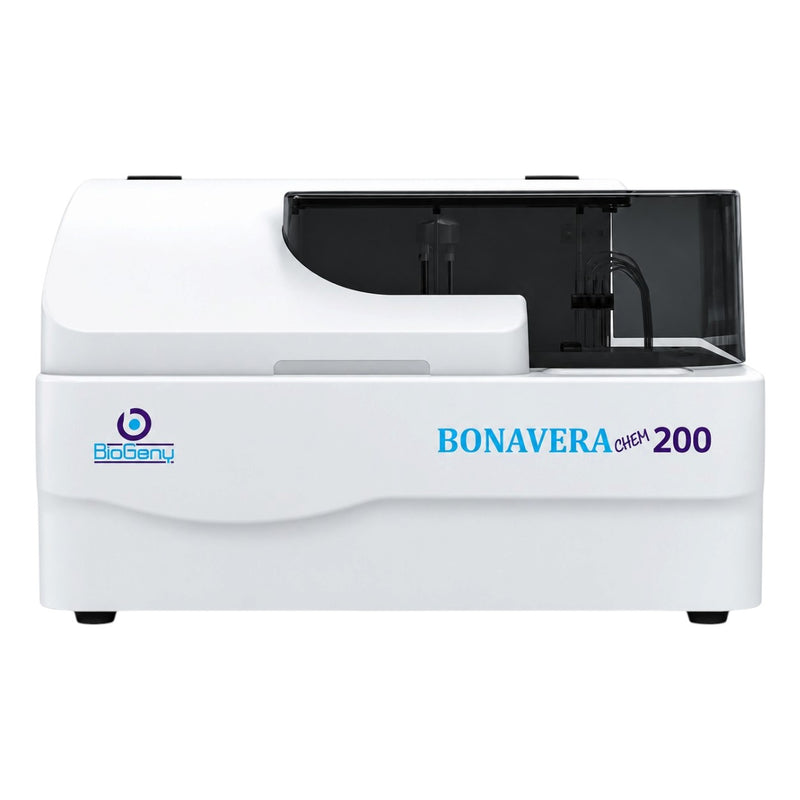

The Biogeny Diagnostics Pvt is a fully automated, random-access clinical chemistry analyzer designed for medium- to high-workload diagnostic laboratories. With a stated throughput of up to 200 tests per hour, it supports routine biochemical testing with automated sample and reagent handling.
The analyzer features 40 cooled sample positions, 40 cooled reagent positions, and 44 semi-permanent Pyrex reaction cuvettes. Its IFCOS optical system uses eight fixed wavelengths from 340 to 700 nm, with a stated absorbance range of up to 4.000 Abs and a resolution of 0.0001 Abs.
Key Features of BioGeny Bonavera Chem 200 Plus
-
Fully automated operation: Random-access testing for routine clinical chemistry workflows.
-
Throughput up to 200 tests/hour: Designed for laboratories with moderate to high testing volumes.
-
40 cooled sample positions: Supports onboard sample storage and handling.
-
40 cooled reagent positions: Provides refrigerated reagent capacity.
-
44 semi-permanent Pyrex cuvettes: Durable reaction cuvettes for analyzer workflows.
-
Eight fixed wavelengths: 340, 405, 450, 505, 546, 578, 630, and 700 nm.
-
IFCOS optical system: Specified optical system for absorbance measurements.
-
Flexible reagent volume: 20–300 µL dispensing range.
-
Reaction volume: Starting from 150 µL, as specified.
-
Built-in cuvette washing: Automated washing system to support the reaction workflow.
-
Teflon-coated mixer: Designed for reaction mixing.
-
Probe protection: Collision protection, automatic depth adjustment, and internal/external washing.
-
STAT emergency sample facility: Supports priority handling of urgent samples.
-
Barcode reagent identification: Helps identify reagents during operation.
-
Windows-based software: Listed compatibility with Windows 7, 8, and 10.
-
Continuous-operation design: The supplied product information describes 24-hour cooling.
-
Low-water-use positioning: Water consumption is specified at approximately 8 L/hour.
Test Menu
The supplied product information lists the following testing categories:
Technical Specifications
| Specification |
Details |
| Brand |
BioGeny |
| Model |
Bonavera Chem 200 Plus |
| Analyzer type |
Fully automated biochemistry analyzer |
| Automation mode |
Random access |
| Throughput |
Up to 200 tests/hour |
| Sample positions |
40 cooled positions |
| Reagent positions |
40 cooled positions |
| Reaction cuvettes |
44 semi-permanent Pyrex cuvettes |
| Reaction volume |
Starting from 150 µL |
| Reagent volume |
20–300 µL |
| Optical system |
IFCOS |
| Wavelengths |
340, 405, 450, 505, 546, 578, 630, 700 nm |
| Absorbance range |
Up to 4.000 Abs |
| Mixing system |
Teflon-coated mixer |
| Probe features |
Collision protection, automatic depth adjustment, internal and external washing |
| Cuvette washing |
Built-in washing system |
| Emergency sample handling |
STAT facility |
| Reagent identification |
Barcode identification |
| Software |
Windows-based; listed compatibility with Windows 7, 8, and 10 |
| Power supply |
AC 110–220 V ±10%, 50/60 Hz |
| Water consumption |
Approximately 8 L/hour |
| Dimensions (L × W × H) |
75 × 55 × 49 cm |
| Weight |
70 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
