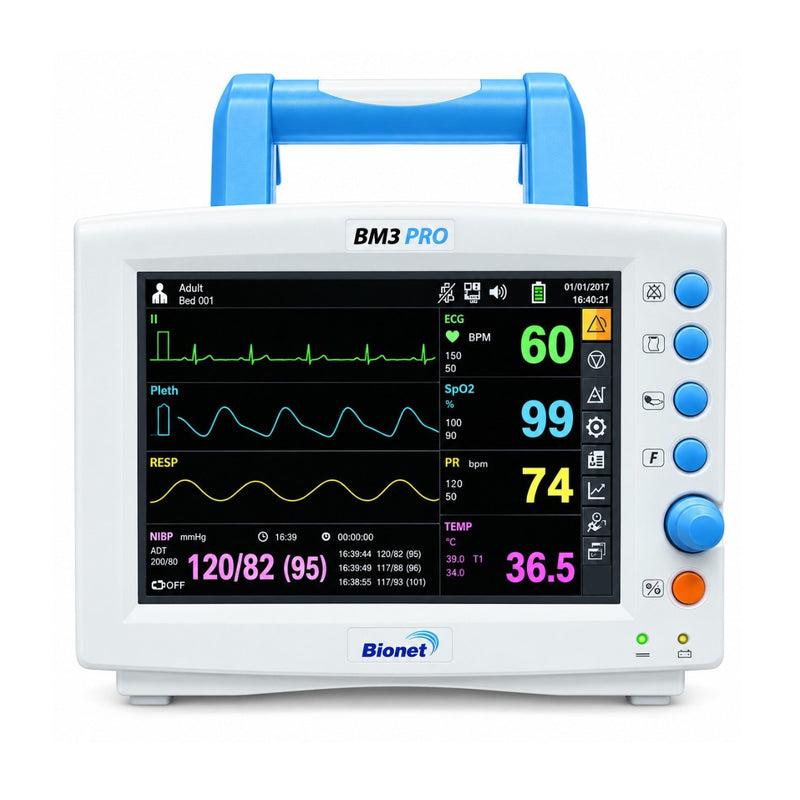

Bionet BM3 Patient Monitor

The Refurbished Bionet BM3 Patient Monitor is a compact and portable multi-parameter patient monitoring system designed to track essential vital signs in clinical environments. It features a bright color TFT touchscreen and provides monitoring of ECG, SpO₂, NIBP, respiration, and temperature, with optional EtCO₂ capnography.

The BM3 is suitable for applications such as recovery wards, intensive care units, outpatient clinics, and general patient observation. Depending on the specific version, the monitor may feature a 7-inch or 8.4-inch color touchscreen, along with networking capabilities for central monitoring and EMR integration.

As a refurbished unit, the exact display version, installed options, battery condition, accessories, and service status should be confirmed before purchase.

✅ Key Features

• Compact and portable multi-parameter patient monitor
• 7-inch or 8.4-inch color TFT touchscreen, depending on version
• Bright backlit display
• ECG monitoring with arrhythmia and ST-segment analysis
• SpO₂ monitoring with low-perfusion detection
• NIBP monitoring
• Bionet or SunTech NIBP module options
• Respiration monitoring
• Dual-channel temperature monitoring
• Optional mainstream or sidestream EtCO₂
• Respironics capnography option
• Optional built-in thermal printer
• Up to 168 hours of trend data storage
• LAN/W-LAN networking
• Central monitoring system connectivity
• Direct HL7 EMR interface export
• Internal rechargeable Li-ion battery
• Approximately 2–2.5 hours of continuous battery operation

7-Inch / 8.4-Inch Color Touchscreen

The Bionet BM3 is available with a bright, backlit color TFT touchscreen, with display size varying by version.

Depending on the particular BM3 configuration, the display may be:

• 7-inch
• 8.4-inch

The touchscreen provides access to patient parameters, waveforms, monitoring information, and system controls.

Note: Confirm the exact screen size of the available unit before purchase.

ECG Monitoring

The BM3 provides ECG monitoring with additional analysis capabilities, including:

• ECG waveform monitoring
• Arrhythmia analysis
• ST-segment analysis

These functions provide additional information for clinical assessment of cardiac activity.

SpO₂ Monitoring

The monitor supports continuous SpO₂ monitoring and includes low-perfusion detection.

This feature can assist with obtaining SpO₂ readings in situations where peripheral perfusion is reduced, subject to appropriate sensor placement and patient conditions.

NIBP Monitoring

The Bionet BM3 supports Non-Invasive Blood Pressure (NIBP) monitoring.

The supplied configuration information identifies NIBP modules from:

• Bionet
• SunTech

The exact NIBP module installed should be confirmed for the specific monitor.

Respiration & Temperature Monitoring

In addition to ECG, SpO₂, and NIBP, the BM3 provides:

• Respiration monitoring
• Dual-channel temperature monitoring

Dual temperature channels can allow two temperature measurements to be monitored simultaneously when the appropriate configuration and probes are available.

Optional EtCO₂ Capnography

The BM3 can be configured with optional EtCO₂ monitoring.

Available configurations include:

• Mainstream EtCO₂
• Sidestream EtCO₂
• Respironics capnography

EtCO₂ can provide additional respiratory monitoring information in applications where capnography is clinically required.

EtCO₂ is optional and should be confirmed before ordering.

Trend Data Storage

The BM3 can store up to 168 hours of trend data.

Trend information can support review of changes in monitored patient parameters over time, depending on the configured system and available memory.

LAN, W-LAN & EMR Connectivity

The monitor supports networking through:

• LAN
• W-LAN

It can be connected to central monitoring systems and supports direct HL7 EMR interface export.

This makes the BM3 suitable for environments where patient monitoring data needs to be integrated into a broader hospital information or electronic medical record workflow.

Optional Thermal Printer

A built-in thermal printer is available as an optional configuration.

Where installed, the printer can provide physical documentation of selected monitoring information.

Rechargeable Battery

The Bionet BM3 uses an internal rechargeable Lithium-ion battery.

Specified operating time is approximately:

2–2.5 hours of continuous operation

Actual battery performance on a refurbished unit may vary depending on battery age, usage history, and condition. Battery charging and backup performance should therefore be tested before purchase.
