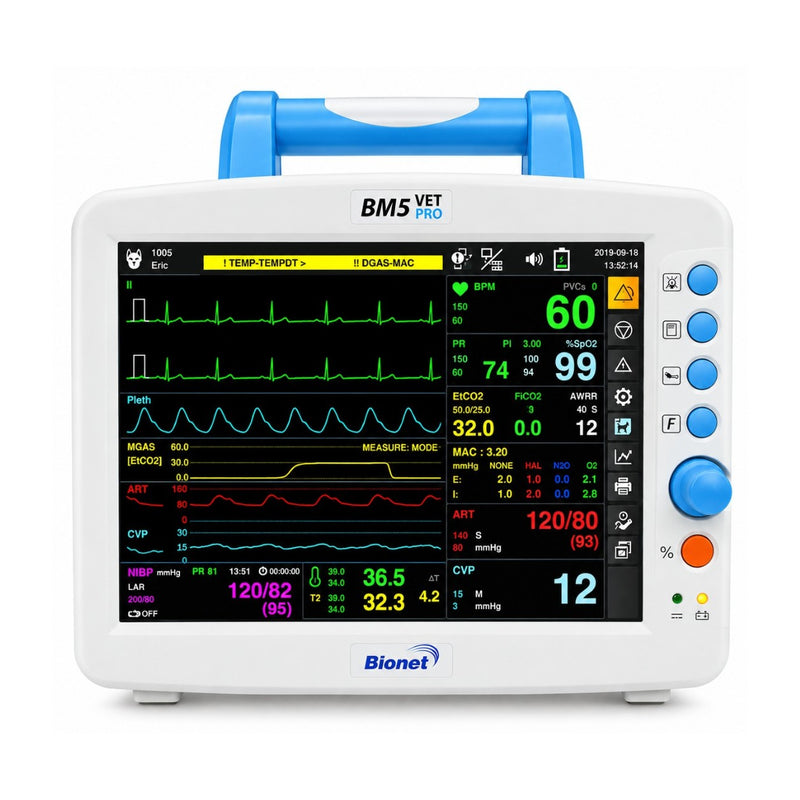

Bionet BM5 Patient Monitor

The Refurbished Bionet BM5 Patient Monitor is an advanced 10.4-inch multi-parameter bedside patient monitor designed for continuous monitoring of critical vital signs in recovery wards, step-down units, and intensive care environments.

The BM5 combines ECG, SpO₂, NIBP, respiration, and dual-channel temperature monitoring with optional advanced modules such as EtCO₂ and dual-channel IBP. It features a 10.4-inch color TFT touchscreen with 800 × 600 resolution, customizable waveform layouts, LAN and Wi-Fi connectivity, and support for central monitoring and HL7 electronic medical record integration.

As a refurbished medical device, the exact condition, installed modules, accessories, battery performance, and service/calibration status should be confirmed before purchase.

✅ Key Features

• 10.4-inch color TFT touchscreen LCD
• 800 × 600 display resolution
• Multiple customized waveform display configurations
• ECG monitoring with 3- or 5-lead waveforms
• Extensive arrhythmia and ST-segment analysis
• Functional SpO₂ and pulse-rate monitoring
• Cuff-based NIBP monitoring
• Real-time respiration monitoring
• Impedance pneumography for respiratory rate
• Dual-channel temperature monitoring
• Optional mainstream or sidestream EtCO₂
• Optional dual-channel IBP
• Optional built-in thermal printer
• Instant hard-copy reports of selected waveforms and trends
• Integrated LAN and Wi-Fi
• Central monitoring network connectivity
• Direct HL7 EMR connectivity
• Standard AC power
• Built-in rechargeable battery backup
• Suitable for recovery, step-down, and intensive-care environments

10.4-Inch Color Touchscreen

The Bionet BM5 features a 10.4-inch color TFT touchscreen LCD with an 800 × 600 resolution.

The display supports multiple customized waveform configurations, allowing the monitoring interface to be arranged according to clinical requirements.

Key display features include:

• Color TFT touchscreen
• 10.4-inch viewing area
• 800 × 600 resolution
• Customizable waveform layouts
• Numerical vital-sign display
• Waveform monitoring

ECG Monitoring

The BM5 provides ECG monitoring using 3- or 5-lead configurations.

Its ECG functionality includes:

• Heart-rate monitoring
• 3-lead waveform monitoring
• 5-lead waveform monitoring
• Arrhythmia analysis
• ST-segment analysis

These capabilities provide clinicians with continuous cardiac monitoring and additional ECG information for patient assessment.

SpO₂ & Pulse Rate Monitoring

The monitor provides functional oxygen saturation (SpO₂) and pulse-rate monitoring.

Continuous SpO₂ monitoring can provide information about the patient's oxygenation status, while pulse rate provides an additional vital-sign parameter.

NIBP Monitoring

The BM5 provides Non-Invasive Blood Pressure (NIBP) monitoring using cuff-based oscillometric measurement technology.

NIBP monitoring enables clinicians to track blood pressure without requiring an invasive arterial line.

Respiration Monitoring

The BM5 monitors respiratory rate through impedance pneumography.

This provides real-time respiration information as part of the monitor's standard vital-sign monitoring capabilities.

Dual-Channel Temperature

The patient monitor includes two temperature input channels, enabling continuous monitoring through appropriate temperature probes.

Dual-channel temperature monitoring can be useful where two temperature measurements are clinically required.

Optional EtCO₂ Monitoring

The BM5 can be equipped with optional EtCO₂ capnography.

Available configurations include:

• Mainstream EtCO₂
• Sidestream EtCO₂

EtCO₂ monitoring provides information about expired carbon dioxide and can add respiratory monitoring capability for appropriately selected clinical applications.

Note: EtCO₂ is an optional feature and should be confirmed on the specific unit before purchase.

Optional Dual-Channel IBP

The monitor can also support dual-channel invasive blood pressure (IBP) measurement.

This allows two invasive pressure channels to be monitored when the appropriate module and accessories are installed.

IBP availability is configuration-dependent.

Built-In Thermal Printer

An optional built-in thermal printer can provide hard-copy documentation of selected monitoring information.

Depending on configuration, printed information can include:

• Selected waveforms
• Numerical data
• Tabular trends
• Patient monitoring reports

LAN, Wi-Fi & HL7 Connectivity

The Bionet BM5 incorporates LAN and Wi-Fi interfaces for networking.

The connectivity system supports:

• Central monitoring network connectivity
• LAN communication
• Wi-Fi communication
• Direct HL7 electronic medical record (EMR) connectivity

This makes the BM5 suitable for healthcare environments where bedside monitoring information needs to be incorporated into centralized monitoring and electronic patient-data workflows.

AC Power & Battery Backup

The BM5 operates from standard AC power and incorporates a rechargeable battery backup.

The internal battery can provide power during:

• Patient transport
• Short-term power interruptions
• Emergency situations

The exact battery runtime is not specified in the supplied information. For a refurbished unit, battery health and actual backup duration should be tested before purchase.

Technical Specifications
