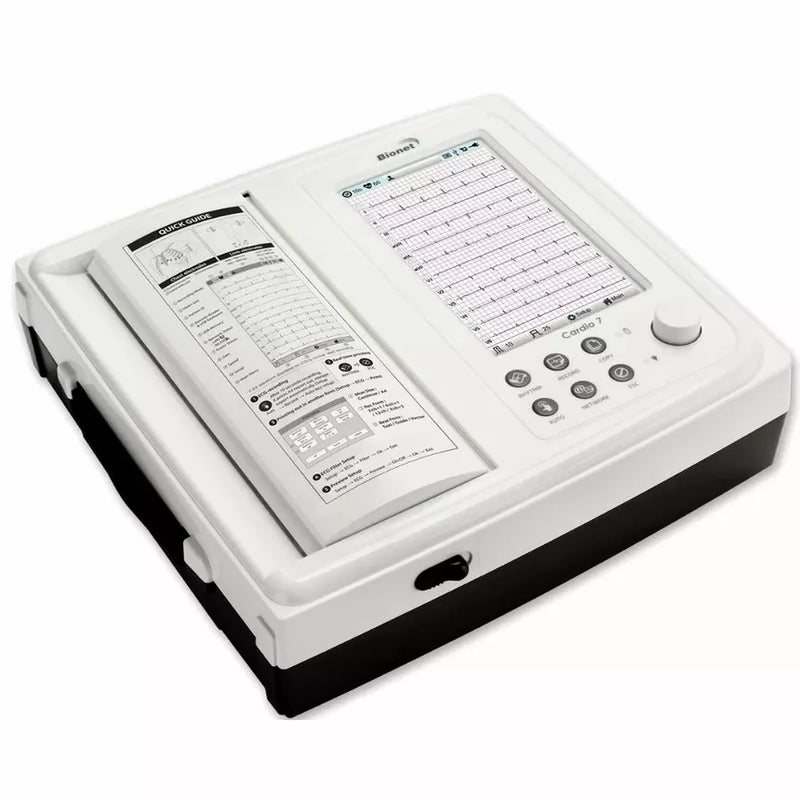

Bionet Cardio-7 12-Channel ECG Machine
Product Selection • Best Price • Technical Support
The Bionet Cardio-7 12 Channel ECG Machine is an advanced electrocardiograph designed to deliver fast, accurate, and reliable cardiac diagnostics for hospitals, clinics, diagnostic centers, and cardiology departments. Featuring simultaneous 12-lead ECG acquisition, this professional-grade system provides detailed heart activity recordings that help clinicians make timely and confident diagnostic decisions.

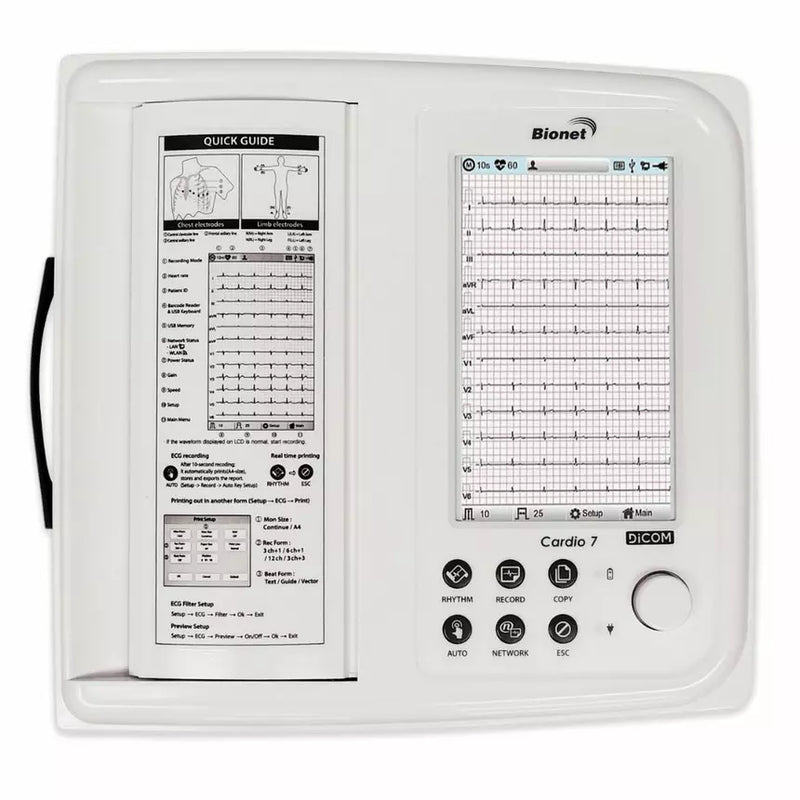

Equipped with a 7-inch high-resolution color TFT touchscreen, the Cardio-7 offers an intuitive interface for easy navigation, patient data management, and real-time ECG waveform viewing. Its built-in automatic ECG interpretation assists healthcare professionals by providing instant preliminary analysis, improving workflow and reducing reporting time.

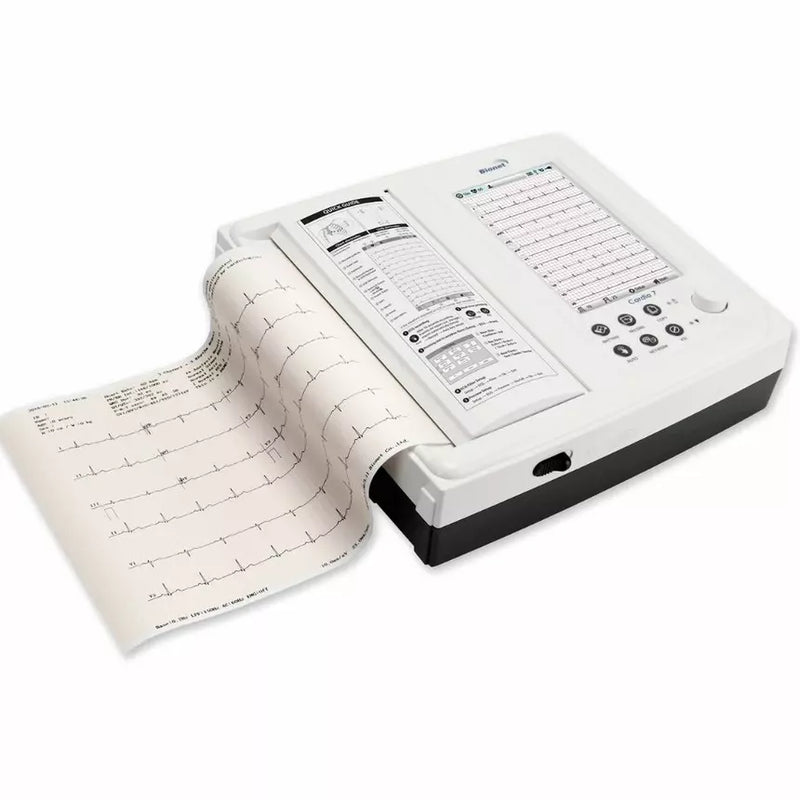

The integrated high-quality thermal printer generates clear ECG reports with multiple recording formats, while advanced digital filters reduce electrical interference, muscle noise, and baseline drift for consistently accurate ECG signals. The system also supports arrhythmia detection, pacemaker pulse detection, lead fault detection, and signal saturation monitoring, ensuring dependable performance in demanding clinical environments.
With internal storage for up to 200 ECG records, USB expansion, LAN, Wi-Fi, and RS232 connectivity, the Bionet Cardio-7 integrates seamlessly into modern hospital information systems. Its rechargeable lithium-ion battery provides up to 6 hours of continuous operation, making it suitable for bedside monitoring, emergency departments, ambulances, and mobile healthcare applications.
Compact, lightweight, and engineered for everyday clinical use, the Bionet Cardio-7 12 Channel ECG Machine is an ideal solution for accurate cardiac diagnostics and efficient patient care.
Product Highlights
- Simultaneous 12-lead ECG acquisition
- 7-inch high-resolution color TFT touchscreen
- Automatic ECG interpretation
- Built-in high-resolution thermal printer
- Advanced digital filters for clean ECG signals
- Arrhythmia and pacemaker pulse detection
- Internal memory for up to 200 ECG records
- LAN, Wi-Fi, USB, and RS232 connectivity
- Rechargeable lithium-ion battery with up to 6 hours backup
- Ideal for hospitals, clinics, cardiology departments, ICUs, and diagnostic centers
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name | Bionet Cardio-7 12 Channel ECG Machine |
| ECG Leads | 12-Lead Simultaneous Acquisition |
| Display | 7-inch Color TFT (800 × 480 Resolution) |
| Sampling Rate | 2,000 Samples/Second |
| Record Types | Auto, Rhythm, Disclosure, Arrhythmia Detection |
| Sensitivity | 2.5, 5, 10, 20, Auto mm/mV |
| Printing Speed | 5, 12.5, 25, 50, 100 mm/s |
| Filters | AC, Muscle, Baseline Drift, Low-pass (40/100/150 Hz) |
| Printer | Built-in High-Resolution Thermal Printer |
| Patient Data | ID, Name, Age, Sex, Height, Weight, Smoking Status, Race |
| Measurements | Heart Rate, PR, QRS, QT/QTc, P-R-T Axis |
| Signal Quality | Pacemaker Detection, Lead Fault Detection, Signal Saturation Detection |
| Storage | Internal Memory (200 ECGs) + External USB |
| Connectivity | LAN, USB (2 Ports), RS232, Wi-Fi |
| Power Supply | AC 100–240V |
| Battery | Rechargeable Lithium-ion (Up to 6 Hours) |
| Dimensions | 300 × 299 × 123 mm |
| Weight | Approx. 4 kg |
Box Contents
- 1 × Bionet Cardio-7 12 Channel ECG Machine
- 1 × ECG Lead Wire Set
- 1 × Set of 10 Electrodes
- 1 × Thermal Printer Roll
- 1 × Power Adapter
- 1 × USB Cable
- 1 × User Manual
Warranty
1 Year Manufacturer Warranty covering manufacturing defects, as per the manufacturer's warranty terms and service policy.
