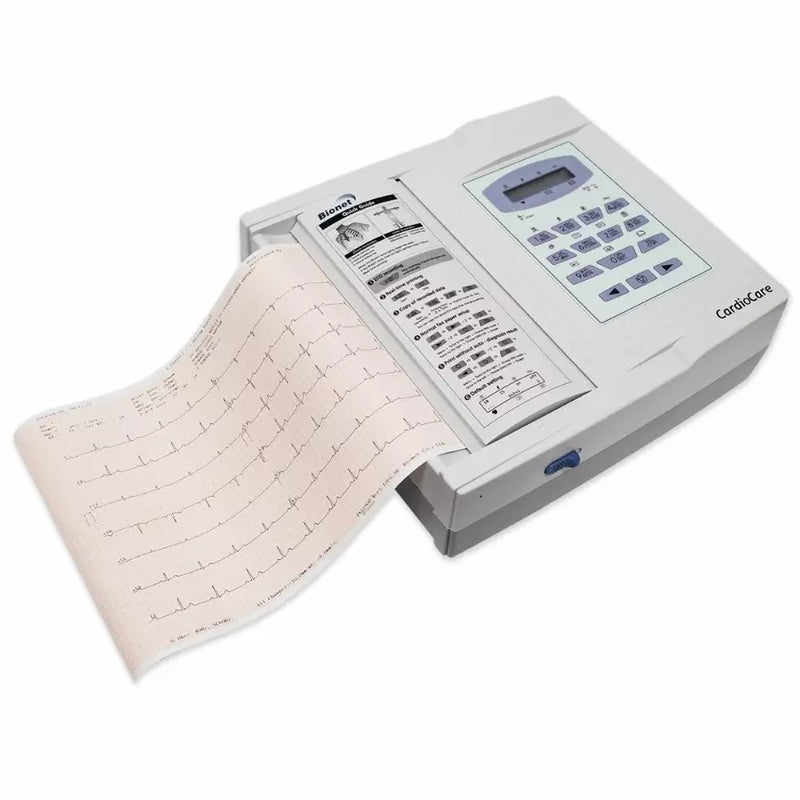

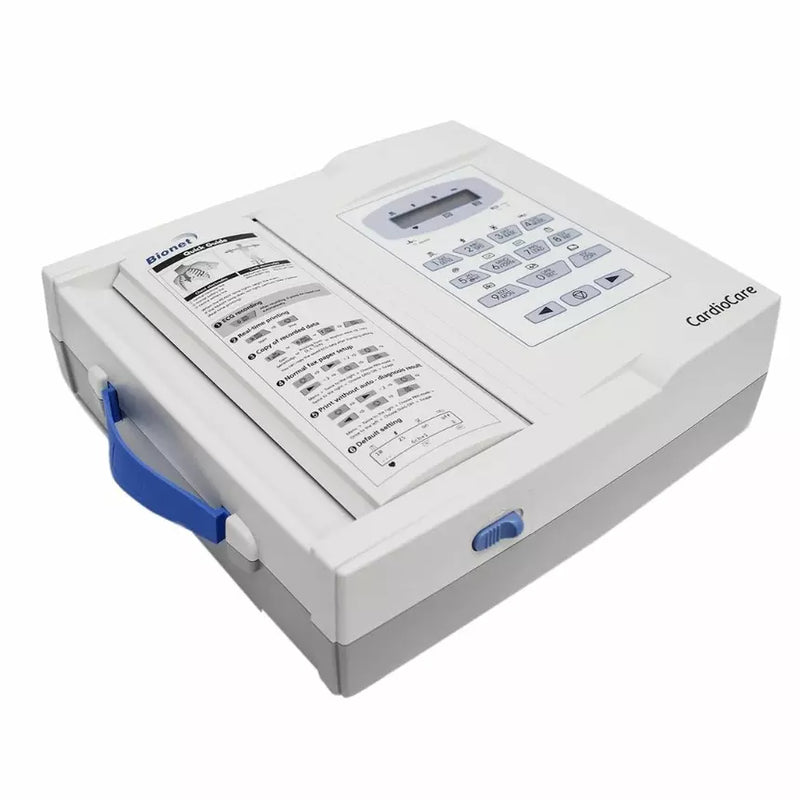

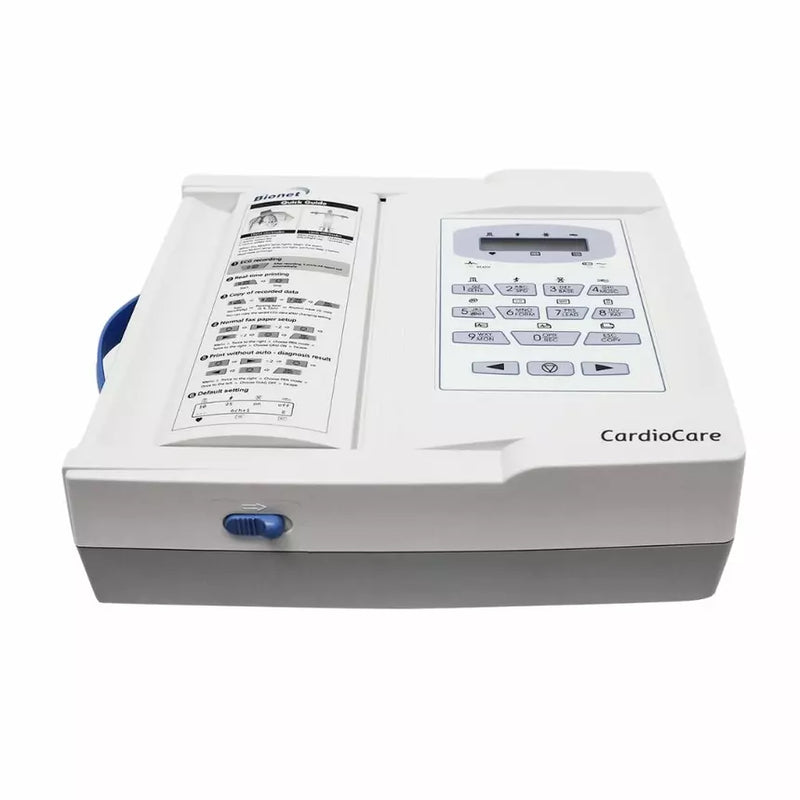

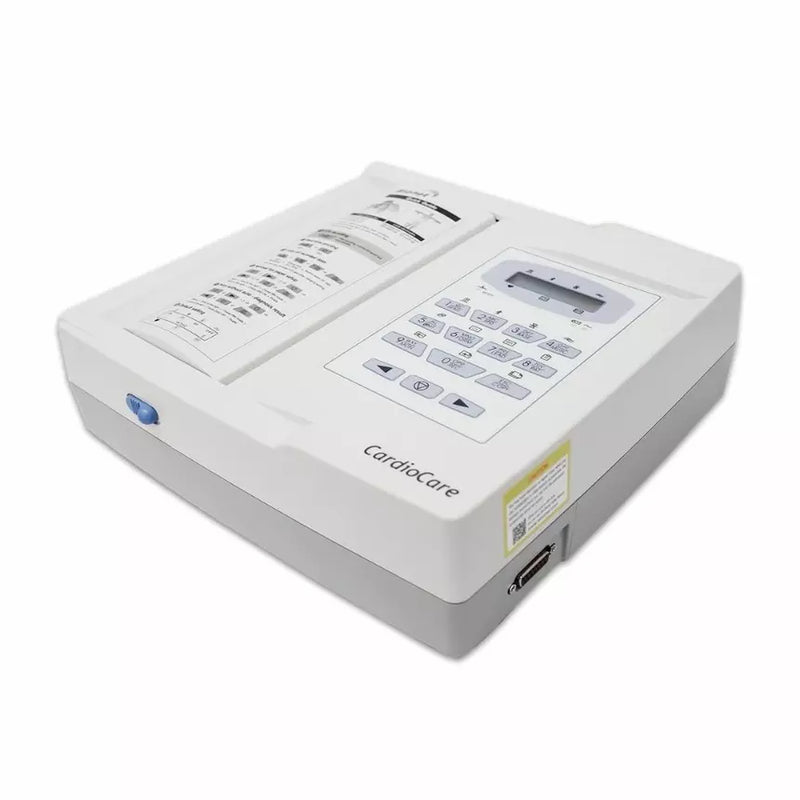

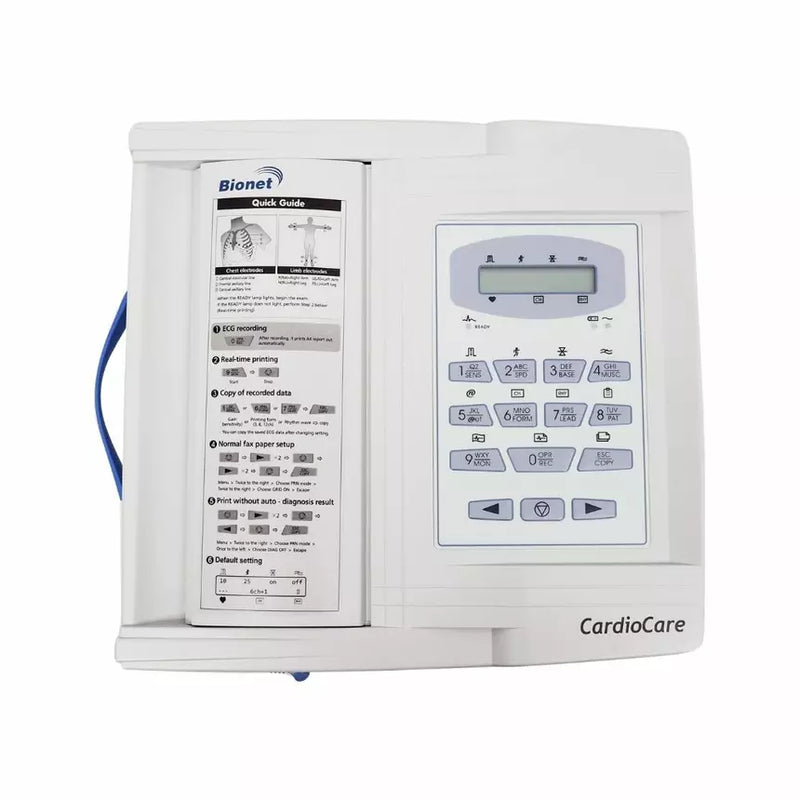

Bionet Cardiocare-2000 12 Channel ECG Machine
Product Selection ā¢ Best Price ā¢ Technical Support
The Bionet Cardiocare-2000 12 Channel ECG Machine is a professional-grade electrocardiograph designed to deliver fast, accurate, and reliable cardiac diagnostics for hospitals, clinics, diagnostic centers, and cardiology departments. Engineered with advanced ECG acquisition technology, it records simultaneous 12-channel, 10-lead resting ECGs, providing healthcare professionals with comprehensive cardiac data for confident clinical decision-making.
The Cardiocare-2000 combines precision with ease of use through its intuitive interface, clear LCD display, and high-quality thermal printing. Advanced signal processing technology, including AC, muscle, baseline drift, and low-pass filters, minimizes electrical interference and motion artifacts to produce clean and highly accurate ECG waveforms.
The system automatically measures key cardiac parameters such as Heart Rate, PR Interval, QRS Duration, QT/QTc, and P-R-T Axis, helping clinicians quickly evaluate cardiac conditions. Built-in storage, RS-232 and LAN connectivity, and optional battery operation make it suitable for both stationary and portable clinical applications.
Compact and lightweight, the Bionet Cardiocare-2000 integrates easily into hospital information systems, improving workflow efficiency while providing dependable ECG diagnostics in emergency departments, ICUs, outpatient clinics, and physician practices.
Product Highlights
- Simultaneous 12-channel, 10-lead ECG acquisition
- Automatic ECG measurements and analysis
- Advanced AC, EMG, baseline drift, and low-pass filters
- Clear LCD display for easy operation
- High-resolution thermal ECG printing
- Internal data storage with LAN and RS-232 connectivity
- Lightweight portable design (2.98 kg)
- Rechargeable battery option for mobile use
- Automatic lead disconnection detection
- Suitable for hospitals, clinics, ICUs, cardiology departments, and diagnostic centers
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name | Bionet Cardiocare-2000 12 Channel ECG Machine |
| Brand | Bionet |
| Model | Cardiocare-2000 |
| ECG Channels | 12-Channel Simultaneous |
| Lead Configuration | 10 Leads |
| Recording Modes | 1, 3, 6, or 12 Channels |
| Display | 2 Ć 16 Character LCD |
| Sensitivity | Auto 5, 10, 20 mm/mV |
| Frequency Response | 0.05 ā 150 Hz |
| Filters | AC (50/60 Hz), Muscle, Baseline Drift, Low-pass |
| Measurements | Heart Rate, PR Interval, QRS Duration, QT/QTc, P-R-T Axis |
| Printer | High-Resolution Thermal Printer |
| Paper Size | A4 Thermal Roll (210 Ć 300 mm) |
| Resolution | 8 dots/mm Vertical, 16 dots/mm Horizontal |
| Input Impedance | >10 MĪ© |
| Common Mode Rejection Ratio (CMRR) | >100 dB |
| Lead Detection | Automatic Lead-Off Detection |
| Connectivity | LAN, RS-232 |
| Power Supply | AC 100ā240V, 50/60Hz |
| Battery | Optional Rechargeable Battery (Approx. 1 Hour / 100 ECG Printouts) |
| Dimensions | 29.6 Ć 30.5 Ć 9.2 cm |
| Weight | 2.98 kg |
Box Contents
- 1 Ć Bionet Cardiocare-2000 ECG Machine
- 1 Ć ECG Patient Cable & Electrode Set
- 1 Ć USB Data Transfer Cable
- 1 Ć Power Cord
- 1 Ć User Manual
- 1 Ć Warranty Card
Warranty
1 Year Manufacturer Warranty covering manufacturing defects, as per the manufacturer's warranty terms and service policy.
