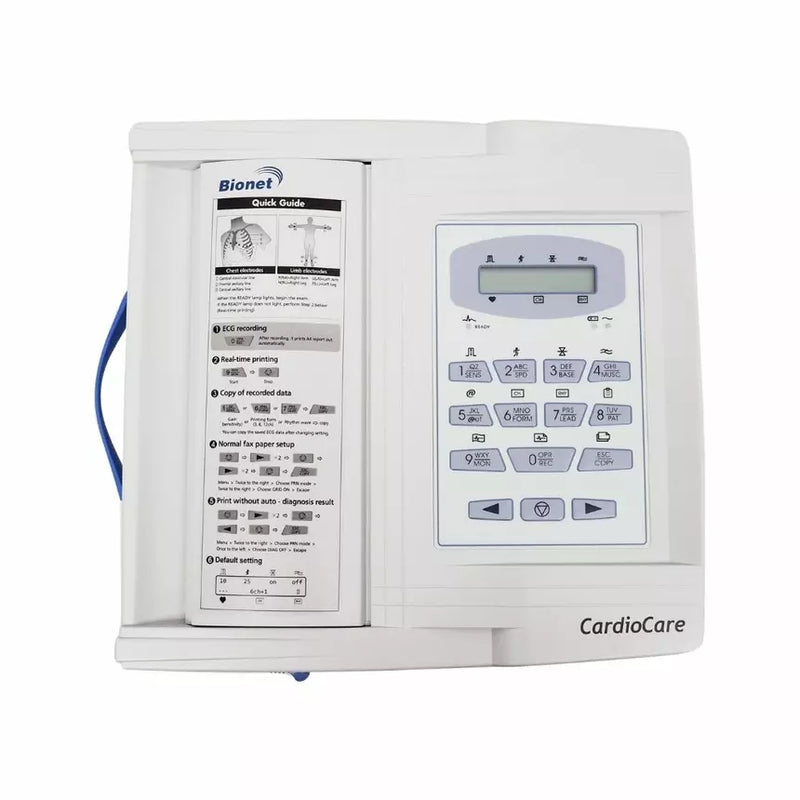

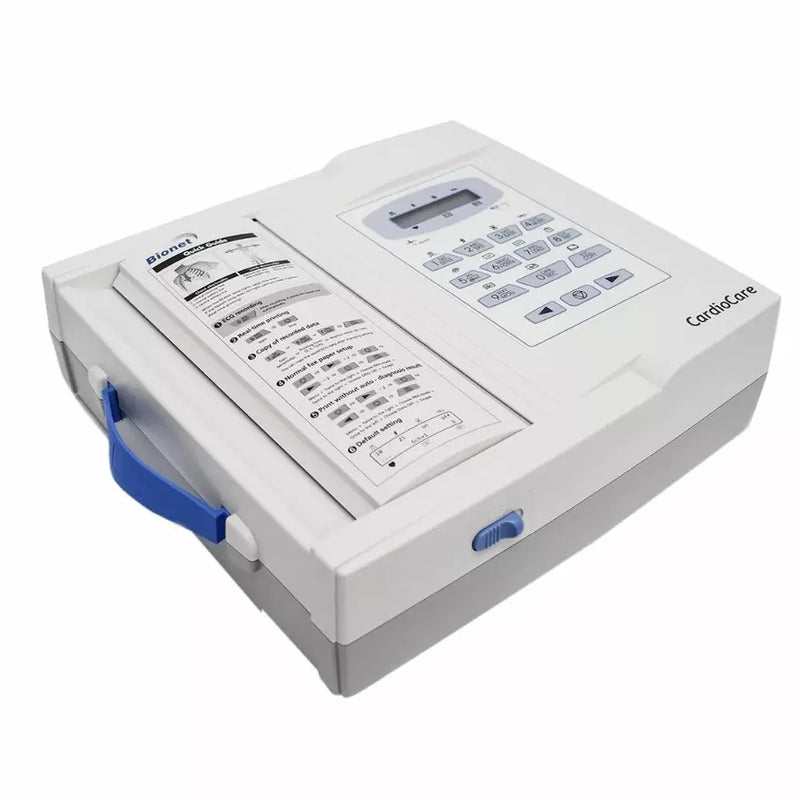

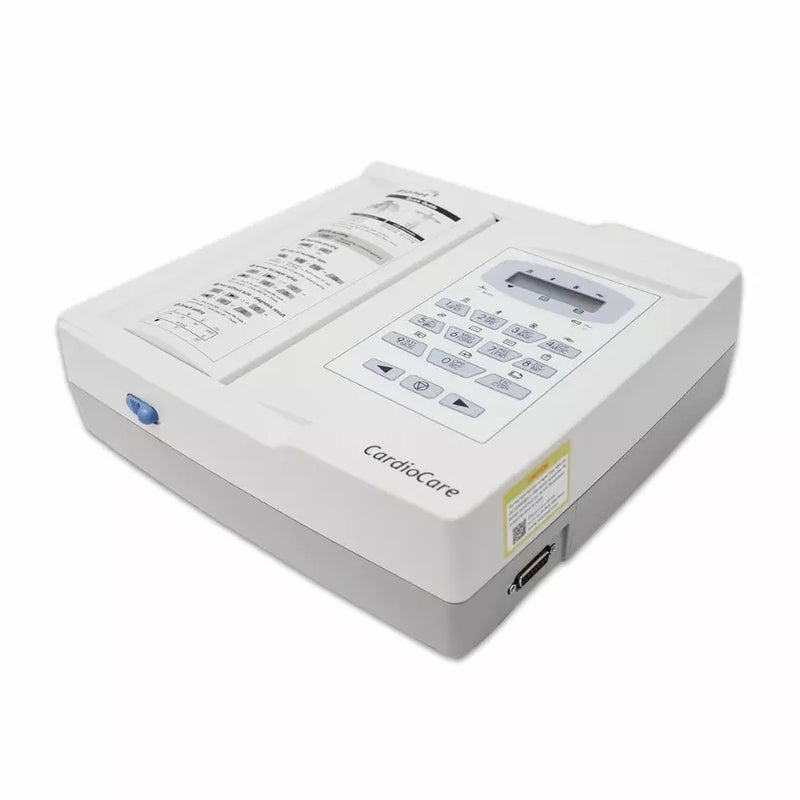

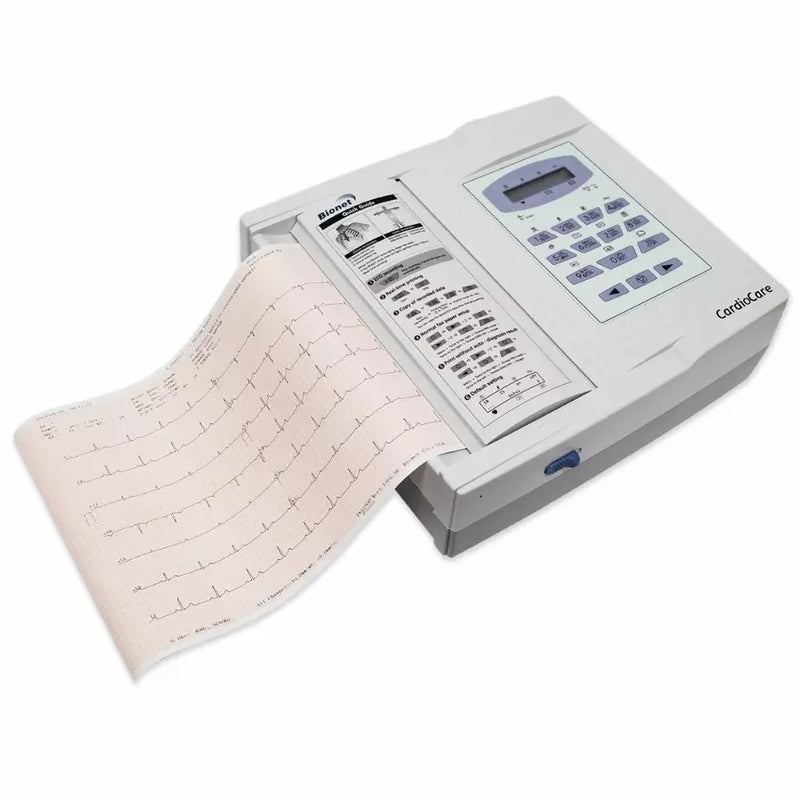

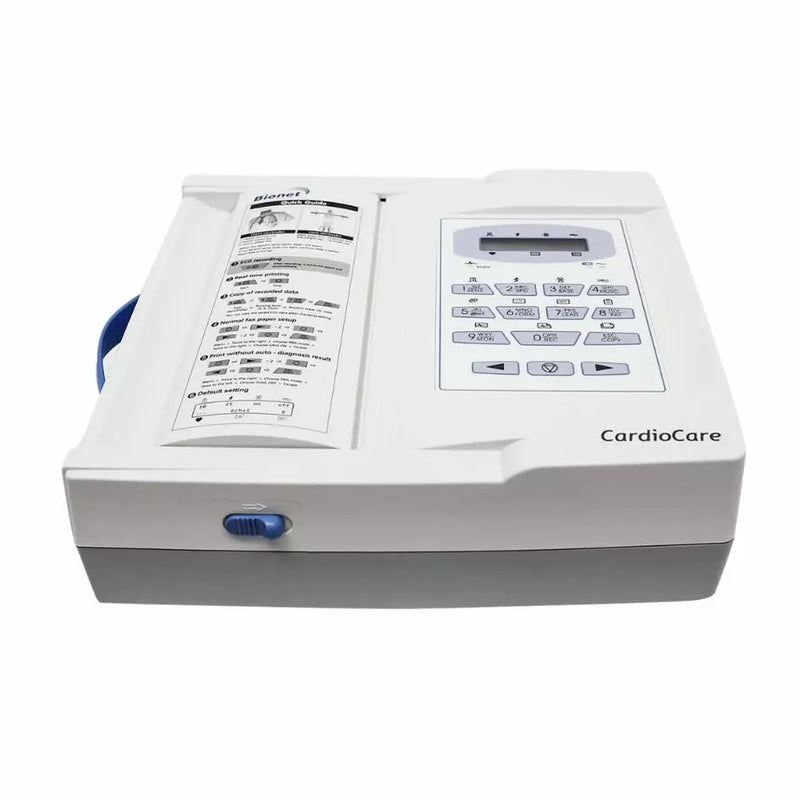

Bionet Cardiocare-2000 12 Channel ECG Machine Digital ECG Machine
The Bionet Cardiocare-2000 12 Channel ECG Machine is a professional digital ECG system designed for fast, accurate, and reliable cardiac diagnostics in hospitals, clinics, diagnostic centres, and healthcare facilities. It records all 12 ECG leads simultaneously, ensuring precise heart rhythm analysis and dependable clinical results.
Featuring advanced digital signal processing, automatic ECG measurements, a built-in thermal printer, and USB, LAN & RS-232 connectivity, the Cardiocare-2000 streamlines ECG recording, reporting, and patient data management. Its compact and lightweight design makes it ideal for OPDs, ICUs, emergency departments, bedside monitoring, and mobile healthcare services.
Buy the genuine Bionet Cardiocare-2000 ECG Machine online from Health Yantra Store with manufacturer warranty, competitive pricing, and nationwide delivery.
Key Features
- ā Simultaneous 12-Channel ECG Recording
- ā Simultaneous 12-Lead ECG Acquisition
- ā Automatic ECG Measurement & Analysis
- ā High-Resolution LCD Display
- ā Advanced Digital Signal Processing
- ā Built-in High-Quality Thermal Printer
- ā USB, LAN & RS-232 Connectivity
- ā Internal ECG Data Storage
- ā Compact, Lightweight & Portable Design
- ā Ideal for Hospitals, Clinics, ICUs & Emergency Care
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bionet |
| Model | Cardiocare-2000 |
| ECG Channels | 12 Channel |
| Lead Configuration | 10 Leads / Simultaneous 12-Lead ECG |
| Display | 2 Ć 16 Character LCD |
| Sensitivity | Auto, 5 / 10 / 20 mm/mV |
| Frequency Response | 0.05 ā 150 Hz |
| Input Impedance | >10 MĪ© |
| Common Mode Rejection Ratio | >100 dB |
| Filters | AC, Muscle, Baseline Drift & Low-Pass Filters |
| Printer | Built-in Thermal Printer |
| Paper Size | A4 ECG Thermal Paper (210 Ć 300 mm) |
| Connectivity | USB, LAN & RS-232 |
| Power Supply | AC 100ā240V, 50/60Hz |
| Battery Backup | Approx. 1 Hour (Up to 100 ECG Printouts) |
| Dimensions | 296 Ć 305 Ć 92 mm |
| Weight | Approx. 2.98 kg |
Box Contents
- Bionet Cardiocare-2000 ECG Machine
- ECG Patient Cable
- ECG Electrodes
- USB Data Transfer Cable
- Power Cord
- User Manual
- Warranty Card
