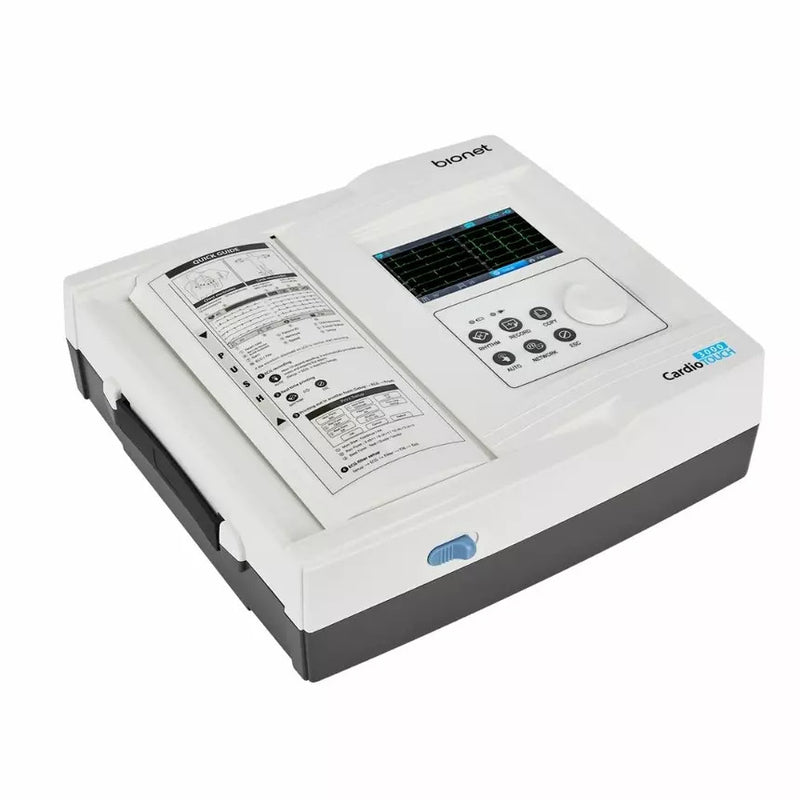

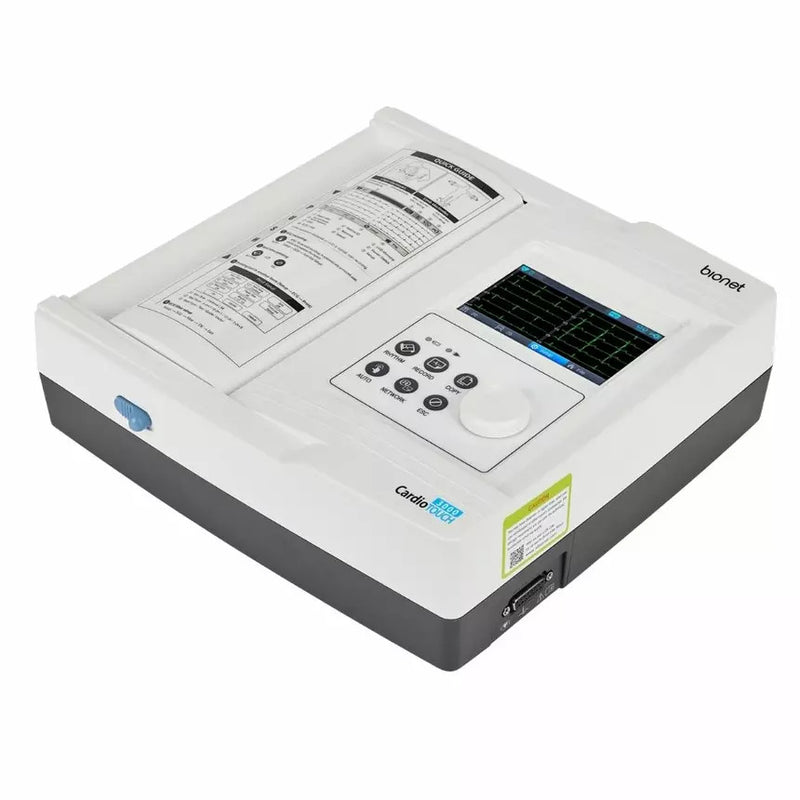

Bionet CardioTouch 3000, 12 Channel ECG Machine
Product Selection • Best Price • Technical Support
The Bionet CardioTouch 3000 12 Channel ECG Machine is an advanced digital electrocardiograph designed to deliver fast, accurate, and reliable cardiac diagnostics for hospitals, clinics, cardiology departments, and diagnostic centers. Featuring simultaneous 12-channel ECG acquisition, this compact and lightweight system captures comprehensive cardiac data to support precise diagnosis and improved patient care.

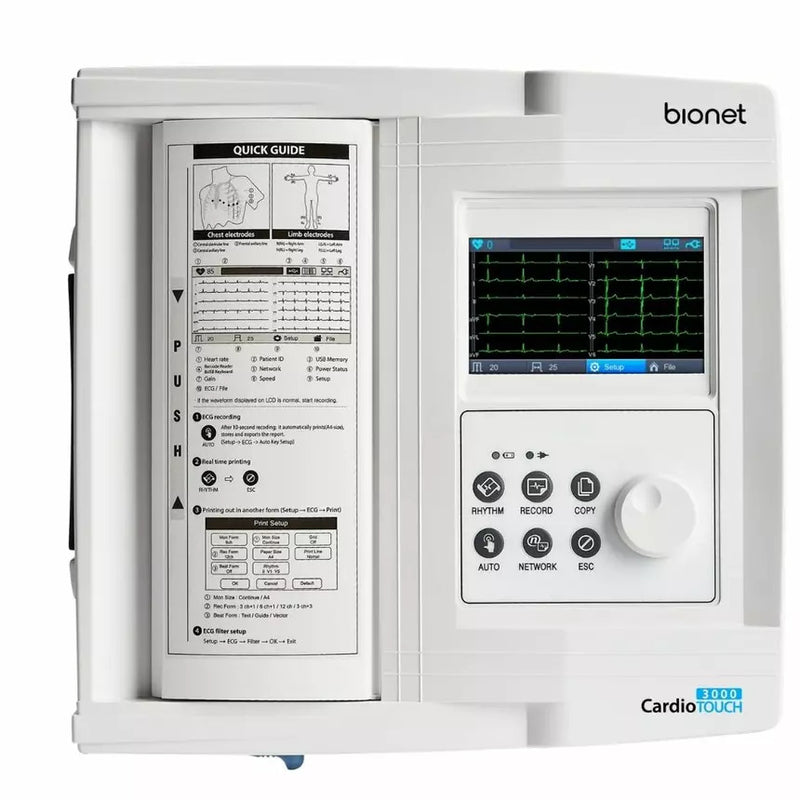

Equipped with a 4.3-inch color TFT touchscreen, the CardioTouch 3000 offers an intuitive user interface with one-touch operation for ECG recording, analysis, and printing. Its intelligent ECG interpretation provides automatic measurements and diagnostic support, enabling healthcare professionals to make quicker clinical decisions.
The machine features advanced digital filtering technology that minimizes electrical interference, muscle artifacts, and baseline drift to produce clear, high-quality ECG waveforms. It supports multiple recording formats, stores up to 200 ECG records, and allows data export in ECG, XML, PDF, JPEG, and MFER formats for seamless integration into hospital information systems.
With LAN, USB, and optional Wi-Fi connectivity, a rechargeable lithium-ion battery providing up to 6 hours of operation, and a built-in thermal printer compatible with A4 and Letter-size reports, the CardioTouch 3000 is an ideal solution for routine examinations, emergency departments, bedside care, and mobile healthcare applications.
Designed for reliability, efficiency, and ease of use, the Bionet CardioTouch 3000 12 Channel ECG Machine is an excellent choice for healthcare professionals seeking dependable cardiac diagnostic performance.
Product Highlights
- Simultaneous 12-channel ECG acquisition
- 4.3-inch color TFT touchscreen display
- One-touch ECG recording and printing
- Automatic ECG interpretation
- Built-in thermal printer for A4 and Letter-size reports
- Internal storage for up to 200 ECG records
- Export formats: ECG, XML, PDF, JPEG, MFER
- LAN, USB, and optional Wi-Fi connectivity
- Rechargeable lithium-ion battery with up to 6 hours backup
- Ideal for hospitals, clinics, cardiology departments, emergency rooms, and diagnostic centers
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Bionet |
| Model | CardioTouch 3000 |
| ECG Leads | Simultaneous 10 Leads Resting ECG (12 Channel) |
| Display | 4.3-inch Color TFT (272 × 480 Pixels) |
| Recording Modes | 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, Long-Time Recording, Beat Report |
| Sampling Rate | 500 Samples/sec (Analysis), 8,000 Samples/sec (Digital) |
| Sensitivity | 2.5, 5, 10, 20, Auto mm/mV |
| Printing Speed | 5, 12.5, 25, 50, 100 mm/sec |
| Filters | AC, Muscle, Baseline Drift, Low Pass |
| Recorder | Thermal Print Head |
| Paper Size | A4 / Letter |
| Storage | Internal Memory (200 ECGs) + External Memory Support |
| Measurements | Heart Rate, PR, QRS, QT/QTc, P-R-T Axis |
| Connectivity | LAN, USB, Optional Wi-Fi |
| Battery | Replaceable Rechargeable Lithium-ion (11.1V, 2600mAh) |
| Battery Backup | Up to 6 Hours |
| Power Supply | AC 100–240V, 50–60Hz |
| Dimensions | 29 × 30 × 9.75 cm |
| Weight | Approx. 3.5 kg |
Box Contents
- 1 × Bionet CardioTouch 3000 ECG Machine
- 1 × Patient Cable
- 1 × ECG Clip Set
- 1 × Disposable Electrodes
- 1 × Chart Paper
- 1 × Power Cord
- 1 × Rechargeable Battery
- 1 × User Manual
- 1 × Warranty Card
Warranty
3 Years Manufacturer Warranty covering manufacturing defects, as per Bionet's warranty terms and service policy.
