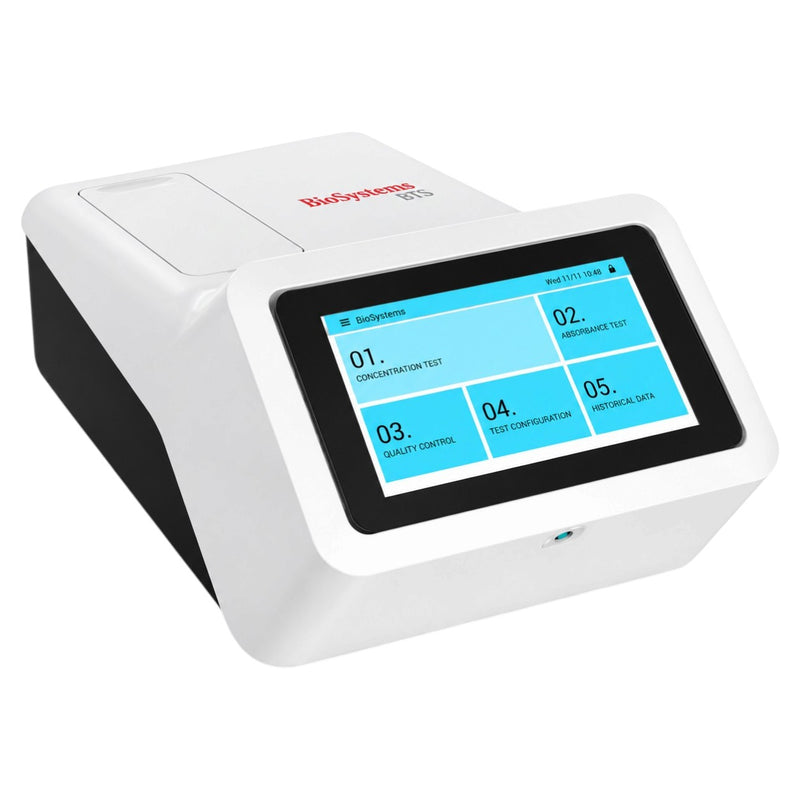

The BioSystems BTS Semi-Automatic Clinical Chemistry Analyzer is a compact laboratory instrument designed for routine biochemical testing in clinics, hospitals, and diagnostic laboratories. Featuring LED-based optics, a quartz flow cell, and a full-colour touchscreen, it supports multiple photometric measurement modes for a wide range of clinical chemistry applications.
Designed for convenient laboratory workflows, the BioSystems BTS features a built-in thermal printer, extensive onboard result storage, and USB and Ethernet connectivity. Its quality control functions include three QC levels, Levey-Jennings charts, and six-month graphical tracking. With a compact design and a stated weight of approximately 4.3 kg, it is suitable for laboratories seeking a space-efficient semi-automatic chemistry analyzer.
Key Features of BioSystems BTS
-

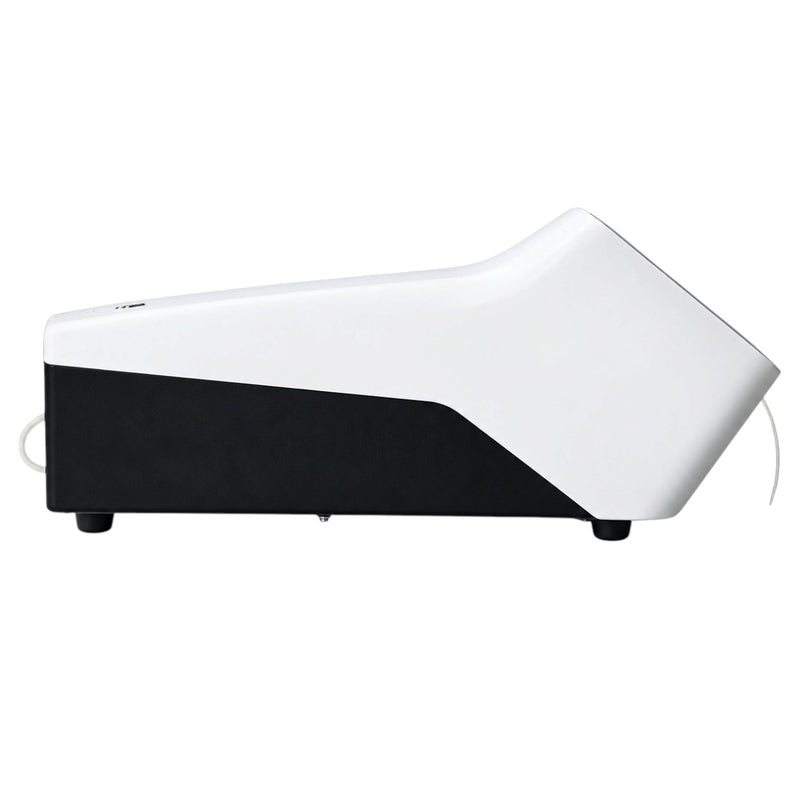

LED optical system: Supports photometric measurements across a wavelength range of 340–670 nm.
-
Quartz flow cell: Designed for stable photometric measurements.
-
7-inch full-colour touchscreen: Provides a convenient interface for routine laboratory operation.
-
Multiple measurement modes: Supports absorbance, end-point, kinetics, differential, fixed-time, and mono/bichromatic measurements.
-
Flexible calibration: Offers factor, calibrator, and multipoint calibration with linear or nonlinear options.
-

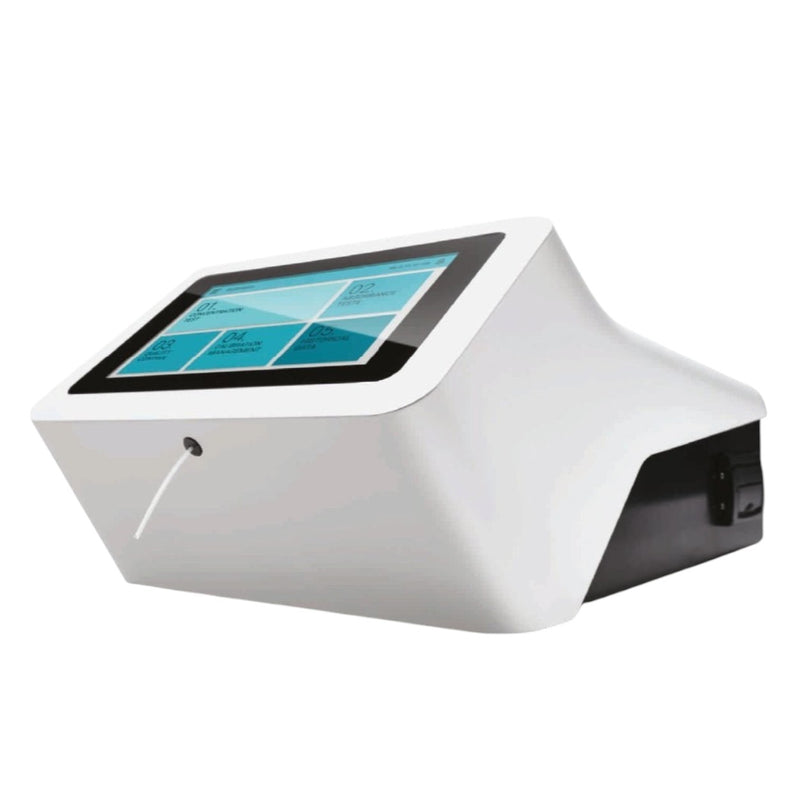

Built-in thermal printer: Supports direct printing of laboratory results.
-
Large result storage: Stores more than 1,000,000 results, with a stated 5 GB storage capacity.
-
USB and Ethernet connectivity: Includes two USB 3.0 ports and an Ethernet RJ45 connection.
-
Integrated quality control: Supports three QC levels, Levey-Jennings charts, and six-month graphs.
-
Result analysis functions: Includes result formulas, linearity checks, and abnormal-sample alarms.
-
Flexible sample handling: Supports macro, semi-micro, and micro cuvettes, along with 12 mm tubes.
-
Compact construction: Weighs approximately 4.3 kg.
Test Menu and Applications
-
Liver function tests: Biochemical assays related to liver function.
-
Kidney function tests: Routine renal chemistry assays.
-
Lipid profile: Selected cholesterol and lipid measurements.
-
Blood glucose testing: Glucose and blood sugar assays.
-
Electrolyte testing: Where applicable to the available method and reagent configuration.
-
Enzyme assays: Routine clinical enzyme measurements.
-
Special chemistry tests: Depending on available reagent kits and validated methods.
Technical Specifications
| Specification |
Details |
| Brand |
BioSystems |
| Model |
BTS |
| Analyzer type |
Semi-automatic clinical chemistry analyzer |
| Display |
7-inch full-colour touchscreen LCD |
| Optical system |
LED light source |
| Wavelength range |
340–670 nm |
| Number of filters |
8 |
| Measurement modes |
Absorbance, end-point, kinetics, differential, fixed time, mono/bichromatic |
| Calibration modes |
Factor, calibrator, multipoint linear/nonlinear |
| Flow cell |
Quartz |
| Result storage |
More than 1,000,000 results |
| Storage capacity |
5 GB |
| Printer |
Built-in thermal printer |
| Connectivity |
2 × USB 3.0, Ethernet RJ45 |
| Quality control |
3 levels, Levey-Jennings, six-month graph |
| Additional functions |
Result formula, linearity check, abnormal-sample alarms |
| Sample compatibility |
Macro, semi-micro, micro cuvettes; 12 mm tubes |
| Reading time |
1–60 minutes |
| Power supply |
100–240 V AC |
| Listed operating power |
5 W |
| Operating temperature |
10–35°C |
| Relative humidity |
Up to 85% |
| Dimensions |
18 × 24.5 × 43.8 cm |
| Weight |
Approximately 4.3 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
