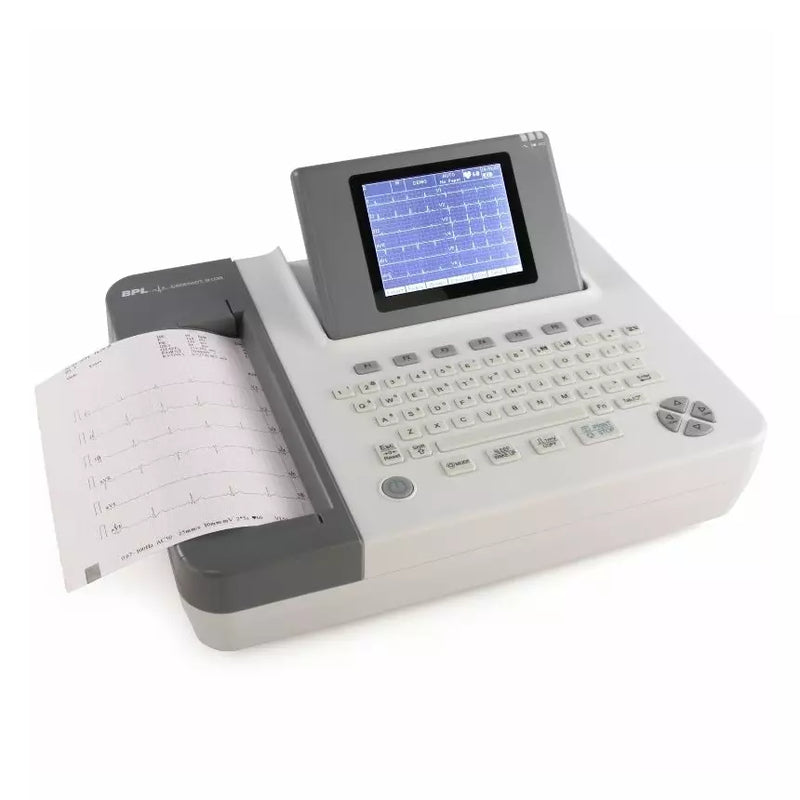

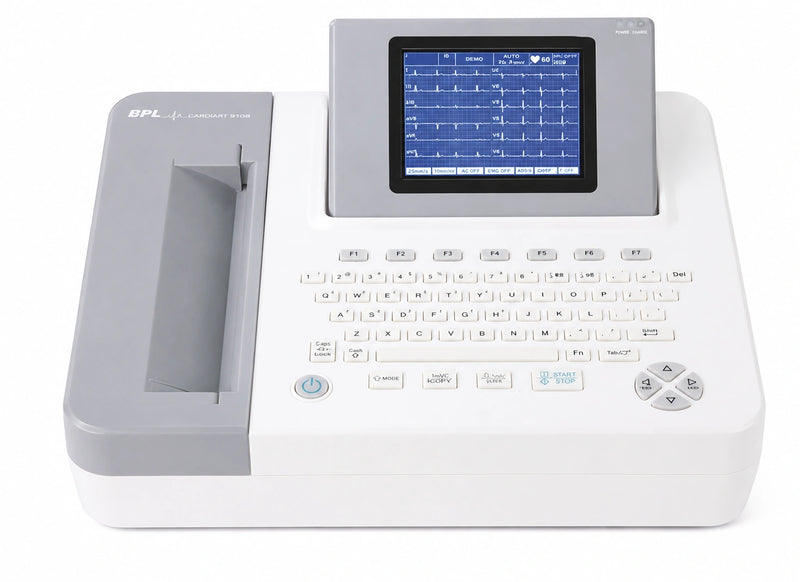

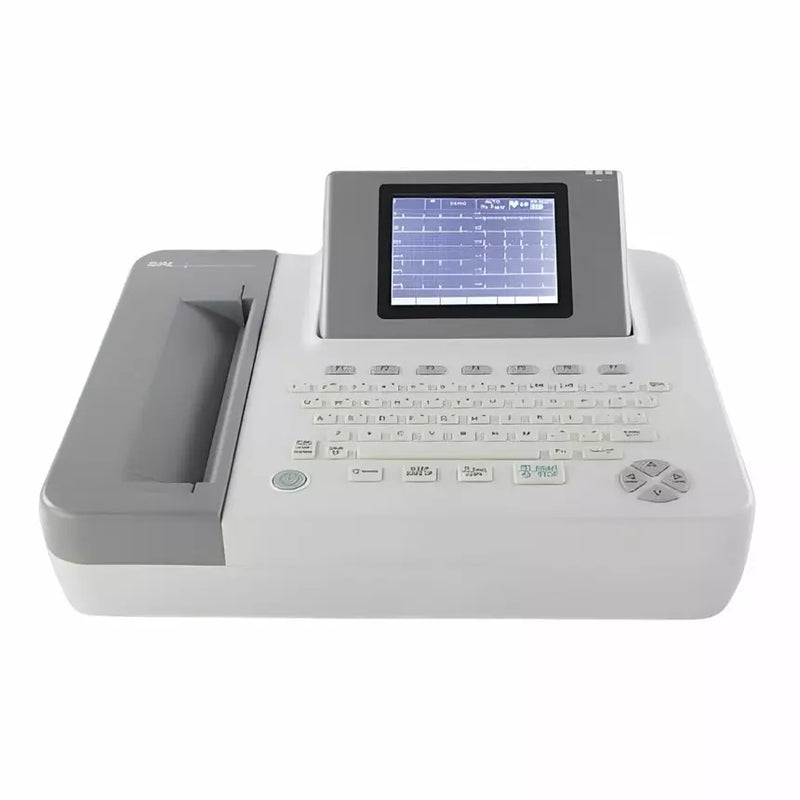

BPL Cardiart 9108 12 Channel ECG Machine – Advanced Digital ECG Recorder
The BPL Cardiart 9108 12 Channel ECG Machine is a high-performance digital electrocardiograph designed to deliver fast, accurate, and comprehensive cardiac diagnostics for hospitals, clinics, diagnostic centers, and healthcare professionals. Featuring simultaneous 12-lead ECG acquisition, advanced interpretation algorithms, and a 5.7-inch foldable LCD display, this ECG machine provides precise cardiac recordings while improving workflow efficiency.
Built for reliability and portability, the Cardiart 9108 weighs approximately 5 kg and includes a rechargeable Li-ion battery that supports up to 5 hours of operation or approximately 300 ECG reports on a single charge. With extensive connectivity options including USB, Ethernet, and RS232, it integrates seamlessly with hospital information systems (HIS), EMR, and PACS, making patient data management simple and secure.
At Health Yantra Store, we provide genuine BPL Medical equipment backed by manufacturer warranty for dependable cardiac diagnostics.
Key Features
-
Simultaneous 12-Lead ECG Acquisition
- Captures all 12 ECG leads simultaneously for accurate and distortion-free cardiac analysis.
-
5.7-inch Foldable LCD Display
- High-resolution display provides clear visualization of ECG waveforms and patient information.
-
Advanced ECG Interpretation
- Intelligent analysis software assists clinicians with rapid and accurate cardiac assessment.
-
Large Internal Storage
- Stores up to 800 ECG reports with additional USB support for expanded storage.
-
Comprehensive Signal Filters
- Includes AC, EMG, low-pass, and drift filters to improve ECG trace quality and reduce interference.
-
Pacemaker Detection
- Accurately identifies pacemaker signals for enhanced diagnostic confidence.
-
Multiple Print Modes
- Supports real-time, pre-sample, period, and arrhythmia-triggered ECG printing.
-
Long Battery Backup
- Rechargeable Li-ion battery provides up to 5 hours of operation or approximately 300 automatic ECG reports.
-

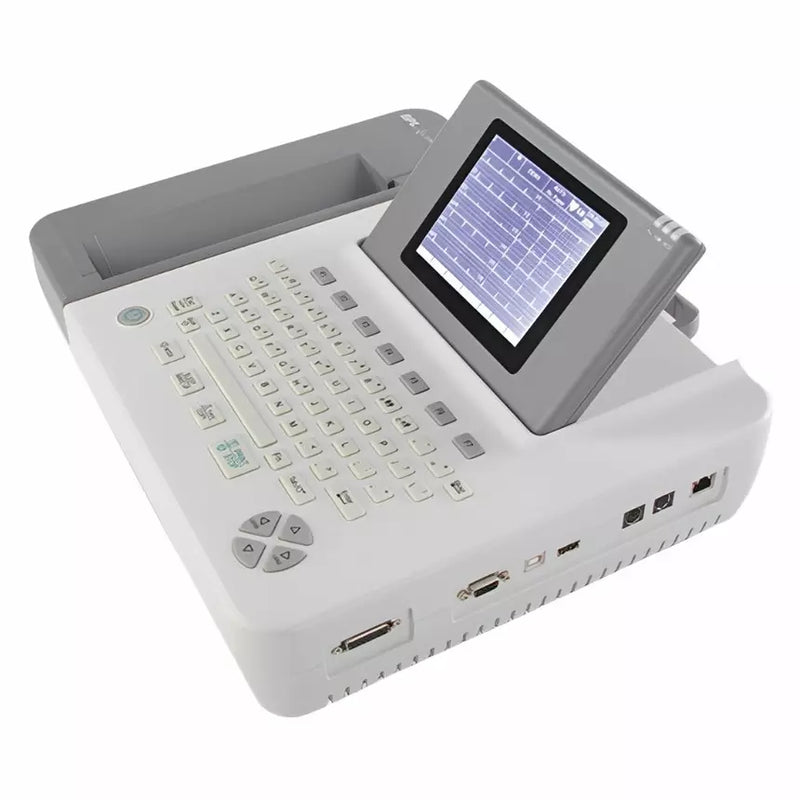

Easy Connectivity
- USB, Ethernet, and RS232 ports enable seamless integration with HIS, EMR, and PACS systems.
-
Compact & Portable Design
- Lightweight construction allows convenient movement between OPDs, ICUs, wards, and diagnostic rooms.
Benefits of the BPL Cardiart 9108 ECG Machine
- Enables fast and accurate cardiac diagnosis.
- Improves workflow with automatic ECG interpretation.
- Supports bedside, ICU, emergency, and outpatient cardiac monitoring.
- Large storage capacity simplifies patient record management.
- Long battery backup ensures uninterrupted operation during power outages.
- Seamless hospital system integration improves digital record management.
- High signal quality minimizes diagnostic errors.
- Suitable for hospitals, cardiac centers, clinics, and diagnostic laboratories.
Technical Specifications
| Specification | Details |
|---|---|
| ECG Channels | 12 Channels |
| Lead Acquisition | Simultaneous 12 Leads |
| Display | 5.7-inch Foldable LCD |
| A/D Conversion | 24-bit |
| Resolution | 2.52 µV/LSB |
| Frequency Response | 0.05–150 Hz |
| Internal Memory | Up to 800 ECG Records |
| Connectivity | USB, Ethernet, RS232 |
| Battery | 14.8V Li-ion, 2500 mAh |
| Battery Backup | Up to 5 Hours / Approx. 300 ECG Reports |
| Printing Speed | 5–50 mm/sec |
| Paper Type | Folded or Roll Thermal Paper |
| Operating Temperature | +5°C to +40°C |
| Dimensions | 420 × 330 × 105 mm |
| Weight | Approx. 5 kg |
Box Contents
Your package includes:
- BPL Cardiart 9108 12 Channel ECG Machine
- Patient Cable
- 6 Chest Electrodes
- 4 Limb Electrodes
- Power Cord
- Cardi-Jelly Bottle
- ECG Paper Roll
- User Manual
Warranty
The BPL Cardiart 9108 12 Channel ECG Machine comes with a 1-year manufacturer warranty, ensuring reliable product quality and after-sales support.
