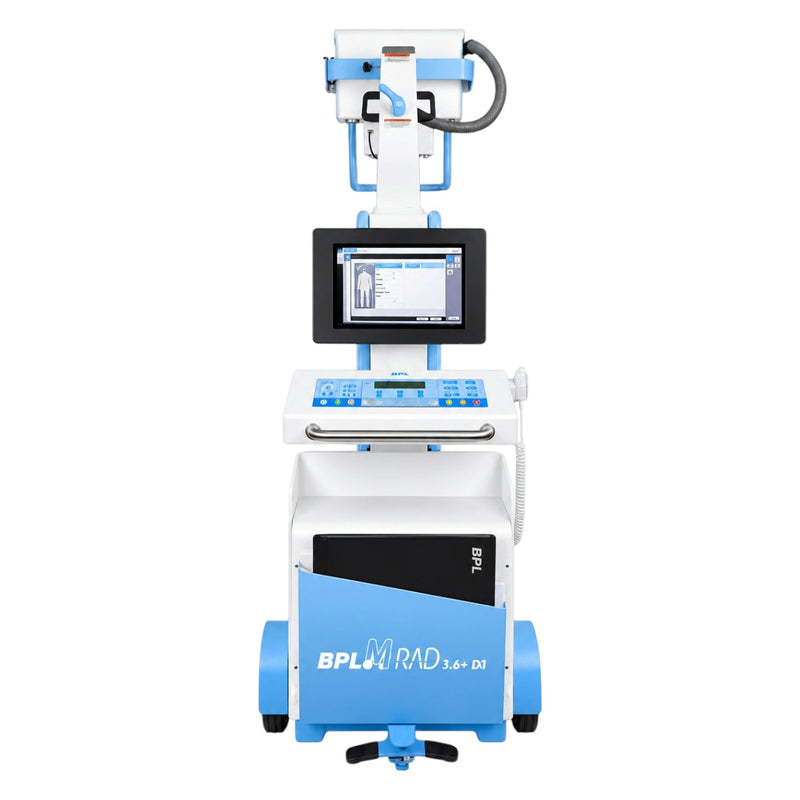

The BPL M-Rad 3.5 DR Mobile X-Ray Machine is a compact digital radiography system designed for bedside X-ray imaging in hospital wards, intensive care units (ICUs), and operating rooms. With a 3.5 kW generator, wireless flat-panel detector, and integrated Econsole software, it supports mobile radiography workflows in clinical environments where moving patients to a fixed X-ray room may be difficult.
The system features an AED-enabled wireless detector with lossless data transmission and TRUEVIEW ART reverse-filtering technology for image reconstruction. Its 12.3-inch full-touch control panel, Wi-Fi/LAN connectivity, and PACS integration support digital image management and transfer.
Designed for practical hospital use, the BPL M-Rad 3.5 DR features a dual-articulated arm mobile stand, adjustable collimator with a high-luminescence lamp, semi-concealed cabling, and self-diagnostic programming.
Key Features of the BPL M-Rad 3.5 DR
-
3.5 kW X-Ray Generator: Operates at a specified frequency of 40 kHz.
-
70 mA Tube Current Capacity: Supports a tube current of up to 70 mA.
-
Wireless Flat-Panel Detector: Supports wireless image acquisition and transfer.
-
AED-Enabled Detector: Includes automatic exposure detection functionality as specified.
-
TRUEVIEW ART Technology: Uses reverse-filtering technology for image reconstruction.
-
12.3-Inch Touchscreen: Full-touch control panel running Econsole software.
-
PACS Connectivity: Wi-Fi and LAN connectivity support direct image transfer to compatible PACS systems.
-

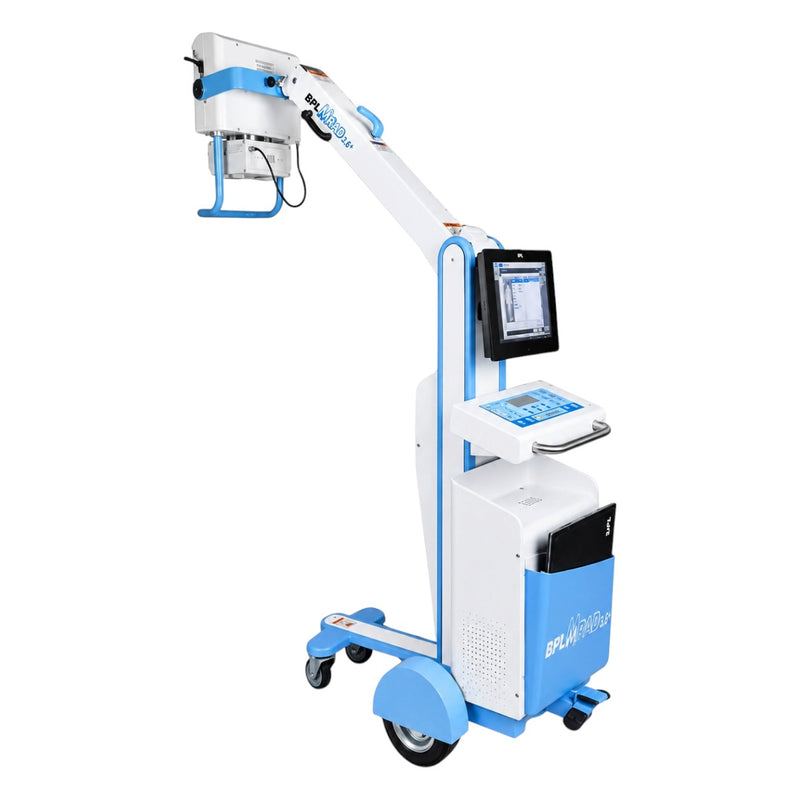

Dual-Articulated Arm: Supports flexible bedside tube positioning.
-
Adjustable Collimator: Includes a high-luminescence lamp to assist with patient positioning.
-
Compact Mobile Design: Lightweight construction and semi-concealed cabling support manoeuvrability.
-
Self-Diagnostic Programming: Helps identify system errors and reduce troubleshooting delays.
-
IPX4-Rated Detector: Provides the stated level of protection against liquid ingress.
Technical Specifications
| Specification |
Details |
| Brand |
BPL |
| Model |
M-Rad 3.5 DR |
| Equipment Type |
Mobile digital X-ray machine |
| Generator Output |
3.5 kW |
| Generator Frequency |
40 kHz |
| Tube Current |
Up to 70 mA |
| mAs Range |
1–200 mAs |
| kVp Range |
40–110 kVp |
| kVp Adjustment |
1 kVp steps |
| X-Ray Tube |
Stationary anode |
| Focal Spot |
1.5 mm², as specified |
| Anatomical Programs |
155 |
| Detector Type |
Direct-deposition CsI flat-panel detector |
| Detector Active Area |
358 × 430 mm² |
| Detector Pixel Pitch |
140 µm |
| Detector Resolution |
2,560 × 3,072 pixels |
| Detector Weight |
2.98 kg |
| Detector Features |
Wireless, AED-enabled, lossless data transmission |
| Image Processing |
TRUEVIEW ART reverse-filtering technology |
| Control Panel |
12.3-inch full-touch panel |
| Software |
Econsole |
| Connectivity |
Wi-Fi and LAN |
| Image Transfer |
PACS connectivity |
| Detector Protection |
IPX4-rated |
| Hand Switch |
Dual-action |
| Power Supply |
230 VAC ±10%, 50 Hz |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
