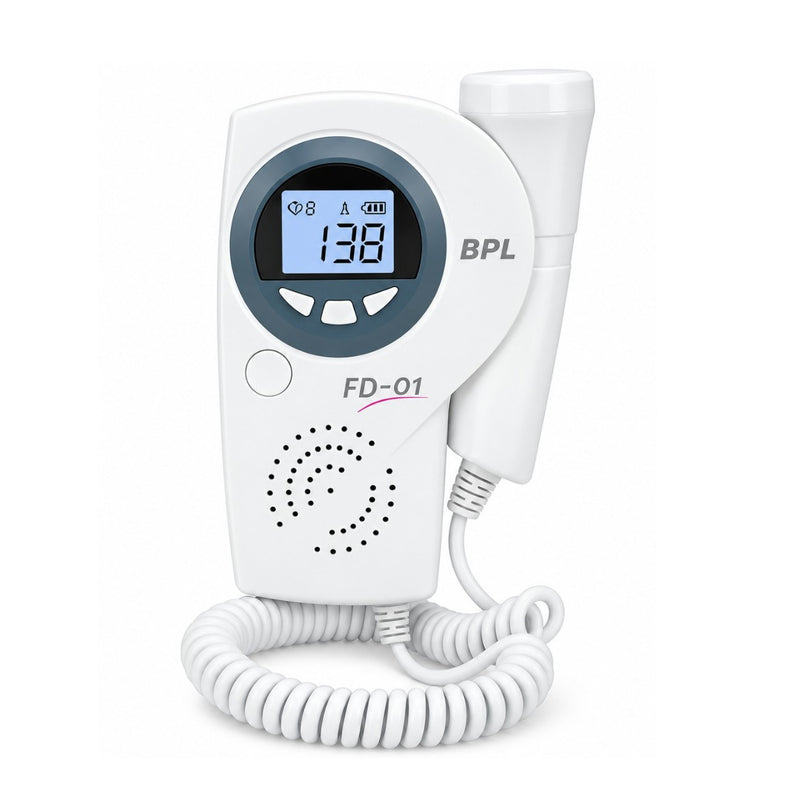

The BPL FD-01 Fetal Doppler is a handheld, portable ultrasound device designed to detect and monitor fetal heart rate (FHR) during pregnancy. Its compact design, high-sensitivity ultrasound probe, real-time LCD display, and built-in audio output make it suitable for fetal heart-rate assessment in appropriate clinical and supervised settings.
The device features a 3.0 MHz ultrasound probe, backlit LCD display, built-in speaker, headphone/audio output, rechargeable battery, and automatic shutdown functionality.
✅ Key Features
- Handheld and portable fetal Doppler
- Designed for fetal heart-rate detection and monitoring
- 3.0 MHz high-sensitivity ultrasound probe
- Large backlit LCD display
- Displays real-time, average, and transient FHR
- Built-in loudspeaker
- Headphone/audio jack
- Rechargeable 7.2V NiMH battery
- Medical-grade power adapter
- Automatic shutdown after 1 minute of inactivity
- Low-battery indication
- Compact design for convenient handling
Fetal Heart Rate Monitoring
The BPL FD-01 is designed to detect fetal cardiac activity using Doppler ultrasound. The device provides real-time, average, and transient fetal heart-rate information on its LCD display.
The built-in speaker allows the Doppler fetal heart sounds to be heard during examination, while the headphone/audio jack provides an alternative listening option.
3.0 MHz Ultrasound Probe
The FD-01 uses a 3.0 MHz high-sensitivity ultrasound probe designed for fetal heart-rate detection.
The probe is used with ultrasound gel to establish acoustic coupling between the transducer and the maternal abdomen.
Display
The fetal Doppler features a large LCD screen with backlighting for easier viewing of fetal heart-rate information.
The display provides:
- Real-time FHR
- Average FHR
- Transient FHR
- Low-battery indication
Audio Output
The device incorporates a built-in loudspeaker for listening to fetal heart sounds.
A dedicated headphone/audio jack is also provided for private or alternative audio monitoring.
Battery & Power
The BPL FD-01 operates using a rechargeable 7.2V NiMH battery and is supplied with a medical-grade power adapter.
The device also incorporates an automatic shutdown function after one minute of inactivity, helping conserve battery power.
Technical Specifications
| Specification |
Details |
| Brand |
BPL |
| Model |
FD-01 |
| Product Type |
Fetal Doppler |
| Technology |
Doppler Ultrasound |
| Probe Frequency |
3.0 MHz |
| Probe Type |
High-sensitivity ultrasound probe |
| Display |
Large LCD with backlight |
| FHR Display |
Real-time, average and transient FHR |
| Audio |
Built-in loudspeaker |
| Audio Output |
Headphone/audio jack |
| Battery |
Rechargeable 7.2V NiMH |
| Power Adapter |
Medical-grade adapter |
| Auto Shutdown |
After 1 minute of inactivity |
| Low Battery Indicator |
Yes |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
