BPL Monophasic Defibrillator DF 2509 R

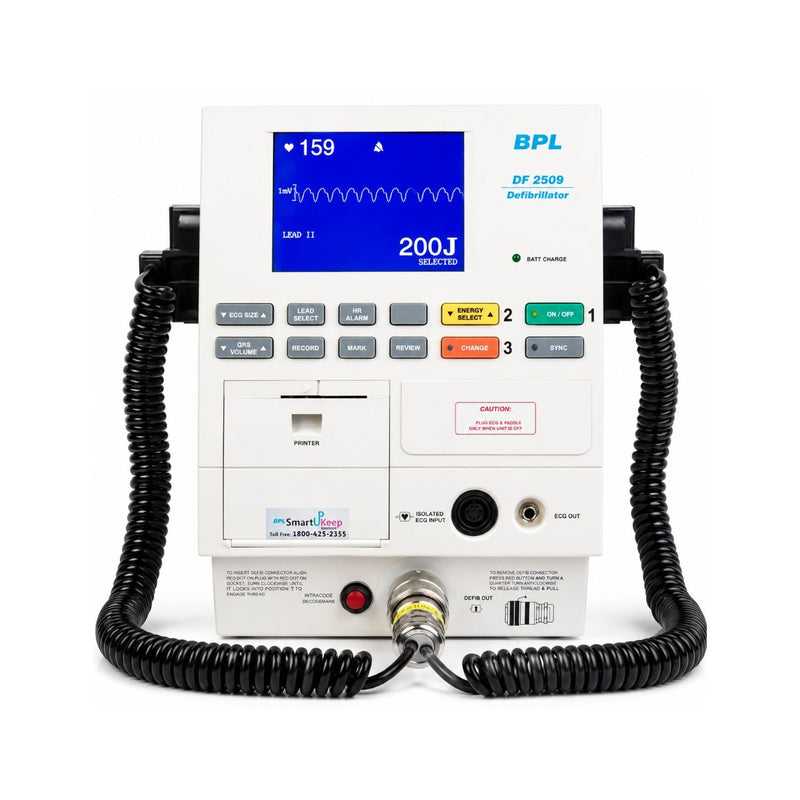

The Refurbished BPL DF-2509/R Defibrillator is a portable manual monophasic defibrillator designed for professional cardiac care environments. It combines selectable defibrillation energy, synchronized cardioversion, ECG monitoring, rapid charging, and event-memory functionality in a compact clinical system.

The DF-2509/R provides user-selectable energy levels from 2J to 360J and can charge to 360J in less than 5 seconds when operated with a fully charged battery. ECG monitoring is available through Leads I, II, and III, using paddles or a patient cable.

For clinical documentation and review, the /R variant includes an inbuilt thermal recorder/printer for printing ECG traces and event information. The device can also store up to 24 separate critical ECG event summaries, supporting review of recorded cardiac events.

✅ Key Features

• ✅ Portable Manual Defibrillator: Compact system designed for professional cardiac-care applications.
• ✅ Monophasic Defibrillation: Provides manual monophasic defibrillation.
• ✅ Wide Energy Selection: User-selectable energy from 2J to 360J.
• ✅ Rapid Charging: Charges to 360J in less than 5 seconds with a fully charged battery.
• ✅ 5.7-Inch LCD: Provides a dedicated display for device and ECG information.
• ✅ Synchronized Cardioversion: Supports synchronized shock delivery for applicable arrhythmia management.
• ✅ Adult & Pediatric Paddle Controls: Standard paddles provide remote charging capability.
• ✅ ECG Monitoring: Supports Leads I, II, and III through paddles or patient cable.
• ✅ Wide Heart Rate Range: Supports heart-rate monitoring from approximately 10–300 BPM.
• ✅ Event Memory: Stores up to 24 separate ECG event records/summaries.
• ✅ Built-In Thermal Recorder: The /R variant includes an integrated thermal recorder for ECG traces and event information.
• ✅ Rechargeable Battery: New fully charged battery specification indicates a minimum of 100 discharges at 360J.
• ✅ Refurbished & Cost-Effective: Suitable for facilities seeking a budget-conscious defibrillation solution.

Defibrillation & Cardioversion

Manual Defibrillation

The DF-2509/R allows healthcare professionals to select the required defibrillation energy between 2J and 360J before delivering a shock using the appropriate paddles.

Synchronized Cardioversion

The device supports synchronized cardioversion, allowing shock delivery to be synchronized with the patient's cardiac cycle for applicable clinical situations.

Rapid Charging

The defibrillator can charge to 360J in less than 5 seconds when the battery is fully charged, supporting rapid preparation between shock events.

ECG Monitoring

The BPL DF-2509/R provides ECG monitoring through:

• Lead I
• Lead II
• Lead III
• Standard paddles
• Patient cable

The specified heart-rate monitoring range is 10–300 BPM.

Event Memory & Recording

The defibrillator includes memory for up to 24 separate critical ECG event summaries.

The /R variant is equipped with an inbuilt thermal recorder/printer, which can be used to print event data and ECG traces for clinical documentation and review.

Technical Specifications
