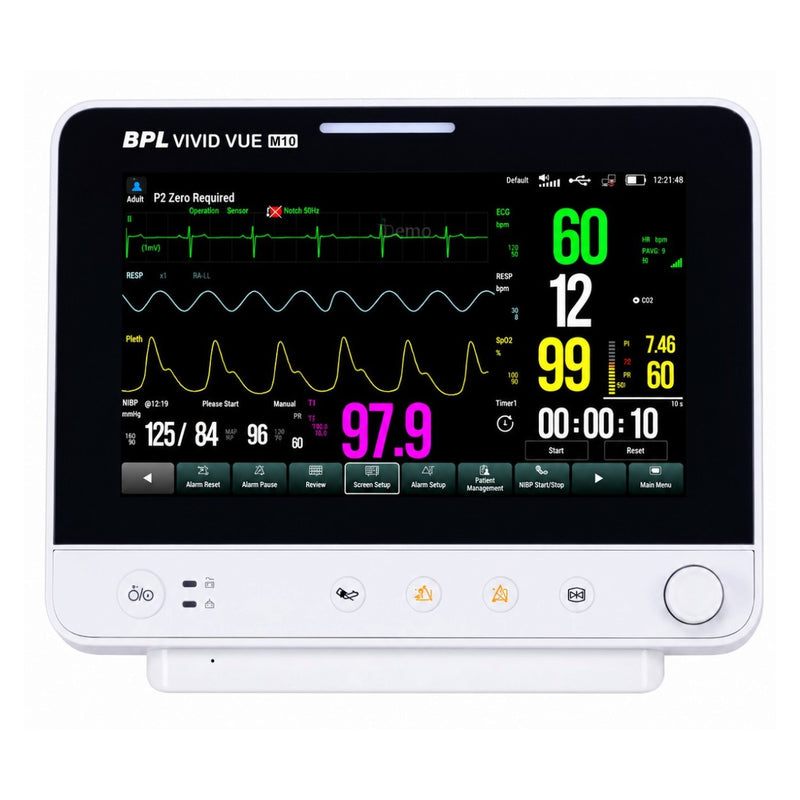

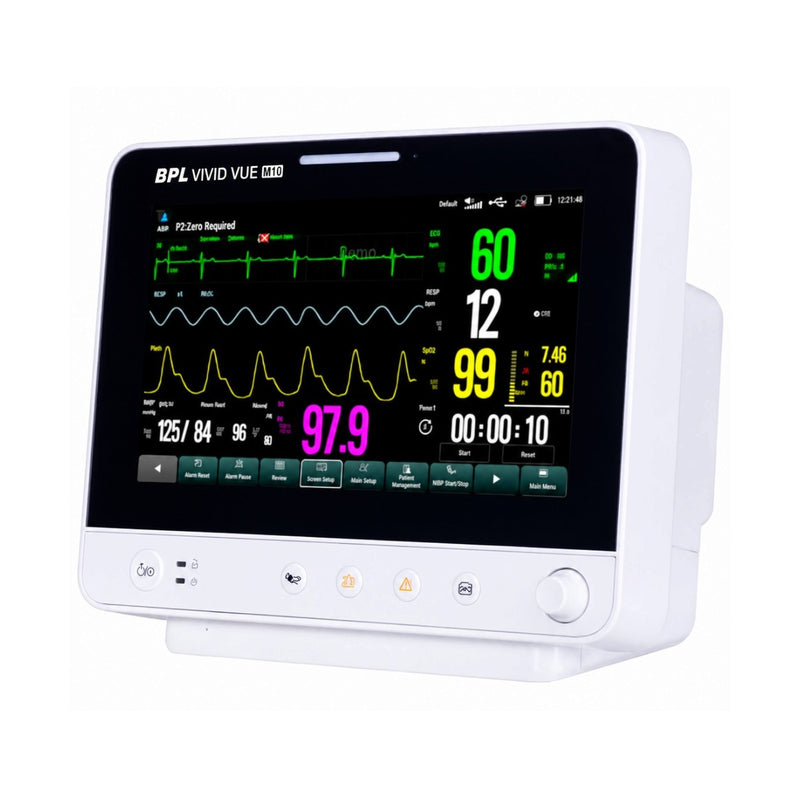

The BPL Vivid Vue M10 is a compact and portable multiparameter patient monitor designed for continuous vital-sign monitoring in ICUs, emergency departments, and general wards.
It features a 10.1-inch / 10.4-inch HD color display, standard 5-lead ECG monitoring, BPL Oxysat+ SpO₂ technology, automatic oscillometric NIBP, respiration and temperature monitoring, and pulse-rate measurement.
The Vivid Vue M10 also provides OxyCRG trend visualization, automated/manual ST analysis, QT view, physiological and technical alarms, USB data transfer, network connectivity, nurse-call capability, and rechargeable Li-ion battery backup. Optional configurations can include a 3-channel thermal recorder, dual IBP, and ETCO₂ modules.
✅ Key Features
- Compact and portable multiparameter patient monitor
- 10.1"/10.4" HD color display
- 1024 × 600 resolution
- Auto-brightness control
-
Standard 5-lead ECG
- Automated and manual ST analysis
- QT view
-
BPL Oxysat+ SpO₂
- Optional Masimo or Nellcor SpO₂ configurations
- Automatic oscillometric NIBP
- Manual, Auto, STAT and Sequence NIBP modes
- Adult, pediatric and neonatal profiles
- Respiration rate from Pleth (RRP)
- Core temperature monitoring
- Pulse rate from SpO₂/Pleth or ECG
- OxyCRG continuous trend graph
- Dedicated control knob
- Quick keys
- Gesture control
- USB mouse and keyboard support
- 3-color LED physiological and technical alarms
- Audible alarms
- USB data transfer
- Trend data and snapshot transfer
- Network connectivity
- Nurse-call support
- Built-in rechargeable Li-ion battery
- Optional 3-channel thermal recorder/printer
- Optional dual IBP module
- Optional ETCO₂ module
10.1"/10.4" HD Color Display
The BPL Vivid Vue M10 features a 10.1-inch / 10.4-inch high-resolution color display with 1024 × 600 resolution.
The monitor incorporates automatic brightness control to support convenient viewing under different lighting conditions.
ECG Monitoring
The Vivid Vue M10 provides standard 5-lead ECG monitoring.
ECG functionality includes:
- 5-lead ECG
- Automated ST analysis
- Manual ST analysis
- QT view
This allows healthcare professionals to review ECG waveforms and selected cardiac analysis information during continuous monitoring.
SpO₂ Monitoring
The standard configuration uses BPL Oxysat+ SpO₂ technology.
The monitor can also be configured with Masimo or Nellcor SpO₂ options, depending on the selected configuration.
SpO₂ monitoring provides oxygen saturation and associated pulse information.
NIBP Monitoring
The Vivid Vue M10 uses automatic oscillometric NIBP technology.
Supported NIBP modes include:
- Manual
- Auto
- STAT
- Sequence
The monitor supports different patient profiles for:
Respiration & Temperature Monitoring
The Vivid Vue M10 provides real-time respiration monitoring through Respiration Rate from Pleth (RRP).
It also supports core temperature monitoring for continuous assessment of body temperature.
Pulse Rate Monitoring
Pulse rate can be derived from:
This allows pulse rate to be monitored alongside the other vital parameters.
OxyCRG Clinical Visualization
The Vivid Vue M10 includes OxyCRG continuous trend graphing.
The visualization supports trending of:
- Heart rate
- SpO₂
- Respiration waveforms
This provides a graphical view of selected respiratory and oxygenation-related trends.
User Interface & Controls
The monitor provides several methods of operation, including:
- Dedicated control knob
- Quick keys
- Gesture control
It also supports peripheral devices such as a USB mouse and keyboard, providing additional flexibility for clinical workflows.
Physiological & Technical Alarms
The Vivid Vue M10 uses a 3-color LED alarm system with both:
- Physiological alarms
- Technical alarms
Audible alarm functions complement the visual indicators to help alert healthcare personnel to relevant patient or equipment conditions.
Connectivity & Data Transfer
The monitor supports USB data transfer for:
It also provides network connectivity options and supports nurse-call functionality, allowing the monitor to integrate with suitable hospital workflows.
Battery Backup
The Vivid Vue M10 features a built-in rechargeable Li-ion battery designed to provide backup power for continued monitoring during power disruptions.
The supplied specifications do not state the exact battery capacity or runtime.
Optional Modules & Accessories
Depending on configuration, the Vivid Vue M10 can be equipped with:
3-Channel Thermal Recorder
An optional built-in 3-channel thermal recorder/printer is available for configurations requiring printed monitoring information.
Dual IBP
A dual IBP module can be added as an optional configuration for invasive blood pressure monitoring.
ETCO₂
An optional ETCO₂ module is available for configurations requiring carbon dioxide monitoring.
SpO₂ Options
The monitor can be configured with:
- BPL Oxysat+
- Masimo
- Nellcor
according to the selected configuration.
Technical Specifications
| Specification |
BPL Vivid Vue M10 |
| Brand |
BPL |
| Product Type |
Multiparameter Patient Monitor |
| Display |
10.1" / 10.4" HD Color Display |
| Resolution |
1024 × 600 |
| Brightness |
Automatic Brightness Control |
| ECG |
Standard 5-Lead |
| ST Analysis |
Automated / Manual |
| QT View |
Yes |
| SpO₂ |
BPL Oxysat+ |
| SpO₂ Options |
Masimo / Nellcor |
| NIBP |
Automatic Oscillometric |
| NIBP Modes |
Manual / Auto / STAT / Sequence |
| Patient Profiles |
Adult / Pediatric / Neonatal |
| Respiration |
RRP from Pleth |
| Temperature |
Core Temperature |
| Pulse Rate |
From SpO₂/Pleth or ECG |
| OxyCRG |
Continuous Trend Graph |
| Alarm System |
3-Color LED + Audible |
| Alarm Types |
Physiological / Technical |
| Controls |
Control Knob / Quick Keys / Gesture Control |
| USB Peripheral Support |
Mouse / Keyboard |
| USB Data Transfer |
Trends / Snapshots |
| Network Connectivity |
Supported |
| Nurse Call |
Supported |
| Battery |
Built-in Rechargeable Li-ion |
| Thermal Recorder |
Optional 3-Channel |
| IBP |
Optional Dual IBP |
| ETCO₂ |
Optional |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
