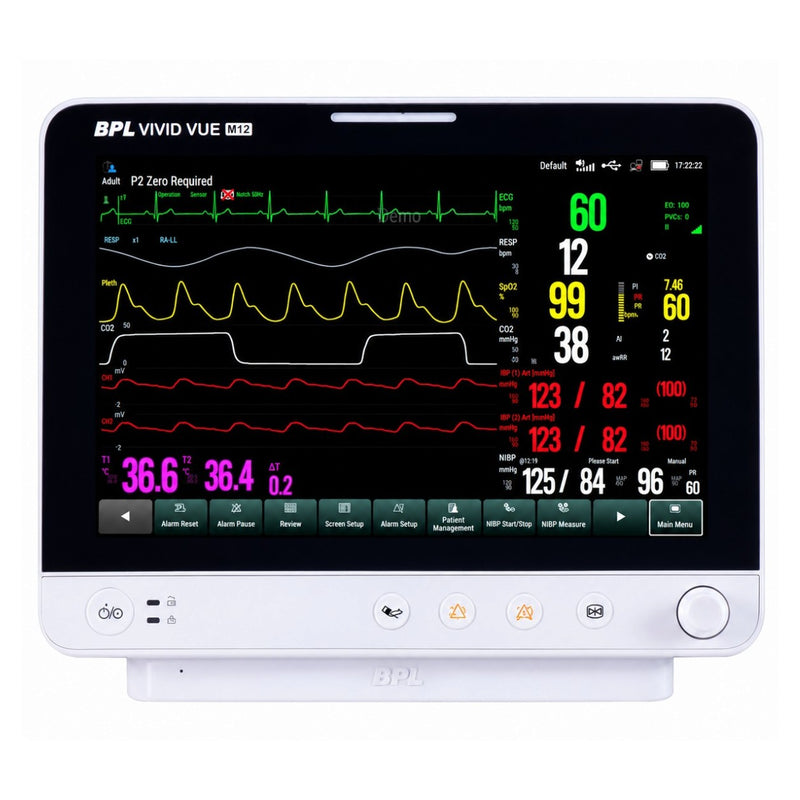

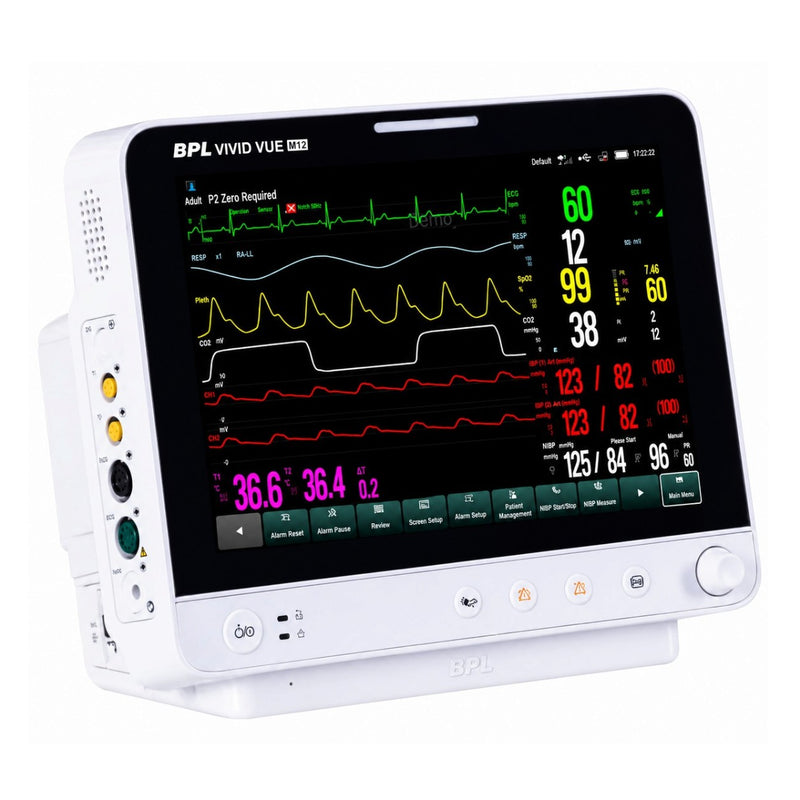

BPL Vivid Vue M12 Multiparameter Patient Monitor

The BPL Vivid Vue M12 provides standard monitoring of ECG, SpO₂, NIBP, respiration, pulse rate, and dual-channel temperature, with optional expansion for 12-lead ECG, dual-channel IBP, EtCO₂, anesthesia gas monitoring, and a built-in 3-channel thermal recorder.

Its 12.1-inch high-resolution tiltable touchscreen provides convenient viewing and operation, while features such as 72-hour trend storage, full disclosure data, alarm/arrhythmia recall, drug dose and titration calculations, night mode, standby mode, and snapshot capture support clinical workflows.

✅ Key Features

• 12.1-inch high-resolution tiltable color touchscreen
• Standard 5-lead ECG with up to 7-lead waveform display
• Optional 12-lead ECG with ST segment and arrhythmia analysis
• BPL OxySat+, Masimo, or Nellcor SpO₂ options
• Real-Time Respiration Rate from Pleth with BPL OxySat+
• SunTech NIBP technology
• Respiration rate monitoring
• Dual-channel temperature monitoring
• Optional dual-channel invasive blood pressure (IBP)
• Optional sidestream/mainstream EtCO₂
• Optional anesthesia gas monitoring
• Optional built-in 3-channel thermal recorder
• 72-hour trend and full-disclosure data storage
• NIBP group and alarm/arrhythmia recall
• Three-color visual alarm indicators
• Audio-visual physiological and technical alarms
• Up to 3.5 hours continuous battery backup
• Night and standby modes
• Snapshot/screenshot capture
• Drug dose and titration calculations
• HL7 support for HIS integration
• Central nursing station connectivity
• USB data transfer
• DVI output for external/slave display
• Dedicated nurse call function

ECG Monitoring

The Vivid Vue M12 comes with 5-lead ECG as standard and supports display of up to 7-lead waveforms.

The optional ECG configuration provides 12-lead ECG monitoring, including:

• ST-segment analysis
• Arrhythmia analysis
• Expanded ECG waveform display
• Continuous ECG monitoring for critical-care applications

SpO₂ Monitoring

The monitor supports functional oxygen saturation monitoring using different sensor technologies depending on configuration:

• BPL OxySat+
• Masimo
• Nellcor

With BPL OxySat+, the system also supports Real-Time Respiration Rate from Pleth (RRP).

NIBP Monitoring

The Vivid Vue M12 uses SunTech NIBP modules for non-invasive blood pressure monitoring.

It is suitable for continuous monitoring of blood pressure in critical-care and hospital environments.

Respiration & Temperature

The standard configuration includes:

• Respiration rate monitoring
• Dual-channel temperature monitoring

This allows simultaneous observation of respiratory and temperature trends along with the other vital parameters.

Optional IBP Monitoring

For applications requiring invasive pressure monitoring, the Vivid Vue M12 can be configured with dual-channel IBP.

This allows the monitor to accommodate invasive blood pressure measurements as part of an expanded multiparameter configuration.

EtCO₂ & Gas Monitoring

Optional respiratory monitoring capabilities include:

• Sidestream EtCO₂
• Mainstream EtCO₂
• Masimo/Capnoview+ options
• Optional anesthesia gas monitoring

These configurations can extend the monitor's application to environments where advanced respiratory and anesthesia monitoring is required.

Built-In Thermal Recorder

A 3-channel thermal recorder/printer is available as an optional configuration.

This can be useful for producing hard-copy records of monitored waveforms and clinical events when required.

Data Storage & Review

The BPL Vivid Vue M12 provides extensive clinical data management capabilities, including:

• Up to 72 hours of trend data
• Full disclosure data
• High-capacity NIBP group storage
• Alarm recall
• Arrhythmia recall
• Snapshot/screenshot capture

These functions allow clinicians to review patient monitoring information over time rather than relying only on real-time readings.

Alarm Management

The monitor incorporates visual and audible alarm functionality.

Key features include:

• Three-color visual LED indicators
• Audio-visual alerts
• Physiological and technical alarm indications
• Alarm/arrhythmia recall

This provides clinicians with visual and audible notification of relevant monitoring events.

Battery & Power Backup

The Vivid Vue M12 incorporates a high-performance rechargeable lithium-ion battery.

The supplied information specifies up to 3.5 hours of continuous backup, supporting monitoring during transportation, short power interruptions, or movement between clinical areas.

Clinical Workflow Features

The monitor includes several functions intended to simplify clinical operation:

• Night mode
• Standby mode
• Snapshot/screenshot capture
• Drug dose calculations
• Drug titration calculations
• Touchscreen operation
• Tiltable display for improved viewing

Connectivity & Hospital Integration

The Vivid Vue M12 supports connectivity with hospital information and central monitoring systems.

Connectivity features include:

• HL7 protocol for Hospital Information System (HIS) integration
• Central nursing station connectivity
• BPL iCARE / Medius+ connectivity
• USB ports for data output and snapshot transfers
• DVI output for slave/external display
• Dedicated nurse call function
