The BPL X-RAD 300 Fixed X-Ray Machine is a 300 mA line-frequency radiography system designed for diagnostic centres and medical imaging facilities. The system features a 24 kW generator, a Toshiba rotating-anode X-ray tube, and a digital operator console with soft-touch controls for radiographic parameters.

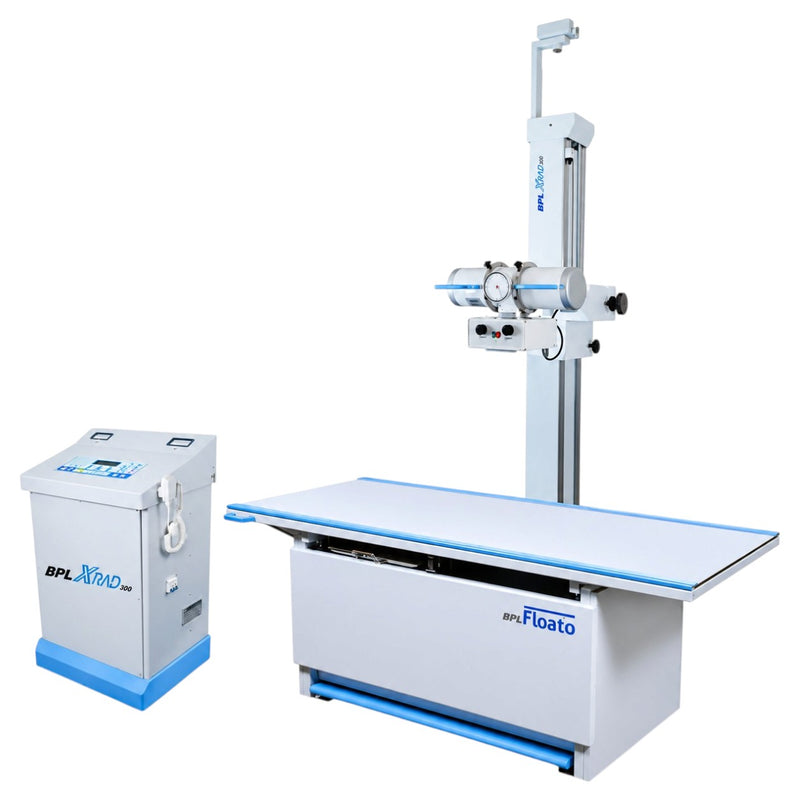

Compatible with three BPL table options—Plano, Multio, and Floato—the BPL X-RAD 300 offers flexibility in selecting a table configuration to suit the facility's space and clinical workflow. Its counterbalanced tube head, user-configurable anatomical programs, and self-diagnostic functionality support routine radiography operations.
Key Features
-
24 kW Generator: Generator output specified as 24 kW in accordance with ISI IS:7620-Part-I.
-
300 mA Tube Current: Maximum tube current of 300 mA.
-
Advanced Operator Console: Soft-touch controls for radiographic parameters.
-
Counterbalanced Tube Head: Supports smooth and easy movement.
-
Anatomical Programs: User-configurable programs with a preset key for instant recall.
-
Independent Voltmeter and Ammeter: Allows monitoring of line voltage and tube current.
-
Self-Diagnostic Program: Helps identify system errors and minimize downtime.
-
Three Table Options: Compatible with Plano, Multio, and Floato BPL table configurations.
-
Optional Vertical Bucky Stand: Provides additional positioning flexibility.
-
Digital Control Panel: Features an alphanumeric LCD with a 20 × 4 character display.
-
Dual-Action Hand Switch: Specified hand-switch configuration for exposure control.
Technical Specifications
| Specification |
Details |
| Brand |
BPL |
| Model |
X-RAD 300 |
| Equipment Type |
Fixed X-ray machine |
| Generator Output |
24 kW |
| Generator Standard |
ISI IS:7620-Part-I |
| Maximum Tube Current |
300 mA |
| mAs Range |
Up to 500 mAs |
| kVp Range |
40–125 kVp |
| kVp Adjustment |
1 kVp steps |
| Radiography Technique |
Three-point: kV, mA and mAs |
| X-Ray Tube Brand |
Toshiba |
| X-Ray Tube Model |
E-7239X |
| Anode Type |
Rotating anode |
| Large Focal Spot |
2 mm² |
| Small Focal Spot |
1 mm² |
| Control Panel |
Digital |
| Display |
Alphanumeric LCD, 20 × 4 |
| Tube Stand |
Fixed, floor-to-ceiling |
| Hand Switch |
Dual action |
| Compatible Table Options |
Plano, Multio and Floato |
| Vertical Bucky Stand |
Optional |
| Power Supply |
440 V AC ±10% |
| Supply Frequency |
50 Hz |
| Power Configuration |
Three-phase, 63 A |
| Approval Information |
Described as AERB- and ISI-approved; verify applicable documentation |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
